Wonder2 MPPT Solar Charge Controller (10A-100A)
Maximize your solar energy harvest with our high-efficiency MPPT (Maximum Power Point Tracking) Solar Charge Controller, available in 10A to 100A models. Designed for 12V/24V/48V battery systems, it ensures optimal charging efficiency (up to 99%), fast energy conversion, and advanced battery protection (overcharge, over-discharge, short-circuit, and reverse polarity).
Feature
◆Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary PWM algorithm, the power generation efficiency can be improved by about 20%；
◇ LCD graphic display of photovoltaic power generation data and simulation of power generation process；
◆ Multiple load working modes can be set to adapt to different working occasions；
◇ Ultra wide photovoltaic input voltage range, more convenient system configuration；
◆ It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters; Users are more flexible and convenient to use；
◇ Lithium battery activation function;
◆ Full range of electronic protection functions: battery anti reverse connection, PV anti reverse connection, charging over-current, DC output over-current, over temperature, over-voltage and undervoltage protection;
◇ Intelligent battery management function, extending battery life;
◆ RS485 communication interface (Mod Bus protocol) and mobile phone APP are convenient for users to integrate and manage.
Specification
| Model: Wonder1 |
150/10, 150/20, 150/30
(10/20/30) |
150/40， 150/50, 150/60
(40/50/60) |
150/80， 150/100
(80/100) |
| Rated Current |
10A/20A/30A |
40A/50A/60A |
80A/100A |
| Rated System Voltage |
12V/24V/48V Auto Recognition |
Max PV Input Voltage(Voc)
(At the lowest ambient temperature) |
150V |
| MPPT Tracking Voltage Range |
12V system：15V-120V；24V system：30V-120V；48V system：60V-120V |
| Recommended operating voltage range |
12V system：15V-20V；24V system：30V-40V；48V system：60V-80V |
| PV array Max power |
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A) |
| Battery Type |
Lead acid battery(Battery type base on user charge specification) |
| Floating Voltage |
13.8V/Single battery |
| Charge Voltage |
14.2V/Single battery |
| Charging Protection Voltage |
15V/Single battery |
| Promote recovery voltage |
13.8V/Single battery |
| Recovery voltage after low voltage disconnect |
12.5V/Single battery |
| Discharge Limited voltage |
10.5V/Single battery |
| Temperature Compensation Coefficient |
-3mV / ℃ / 2V (25℃ is base line) (Optional) |
| Charging Mode |
MPPT maximum power point tracking |
| Charging Method |
Three stages: constant current(MPPT); constant voltage; floating charge |
| Protection |
Over-voltage/under-voltage/over-temperature/PV anti-reverse protection |
| Conversion Efficiency |
>98% |
| MPPT Tracking Efficiency |
>99% |
| Machine Size(L*W*Hmm) |
185*135*65 |
240*143*74 |
280*180*100 |
| Package Size(L*W*Hmm) |
224*171*94（1pc）
351*233*196 (4pcs) |
281*181*103（1pc）
371*290*214 (4pcs) |
321*224*134（1pc）
457*330*142 (2pcs) |
| N.W(kg) |
1.15（1pc） |
1.8（1pc） |
3.7（1pc） |
| G.W.(kg) |
1.35（1pc） |
2（1pc） |
4.0（1pc） |
| System Parameters |
| Display |
LCD |
| Thermal Method |
Cooling fan in intelligent control |
| Type Of Mechanical Protection |
IP20 |
| Operating Temperature |
-15℃~+50℃ |
| Storage Temperature |
-20℃~+60℃ |
| Elevation |
5000m(Dreating above 2000m) |
| Humidity |
5%~95%(No condensation) |
| Communication |
RS485/APP（WIFI monitoring or GPRS monitoring） |
| Note: All specifications are subject to change without prior notice |

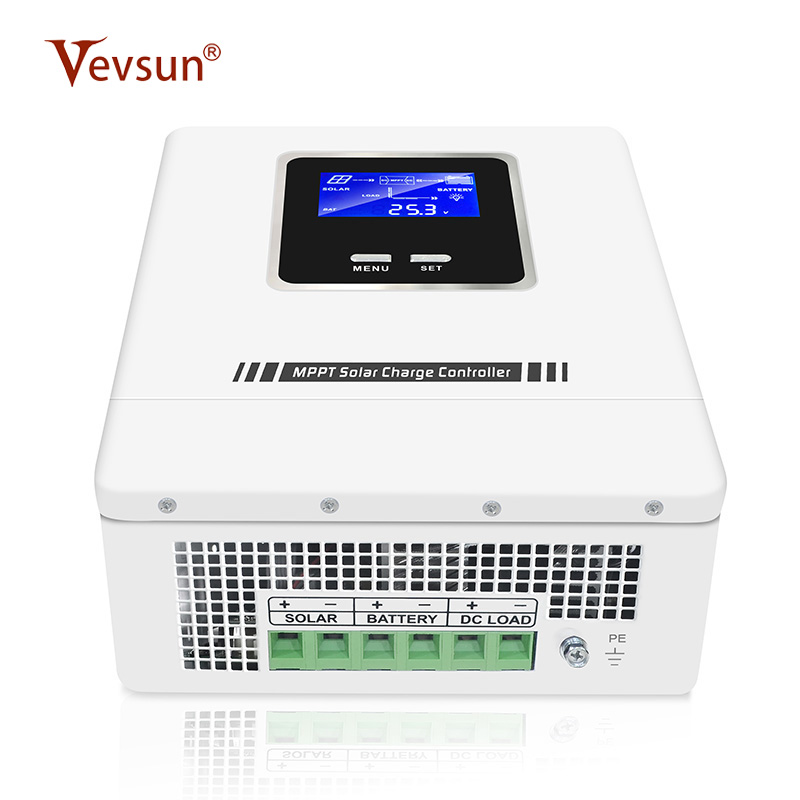

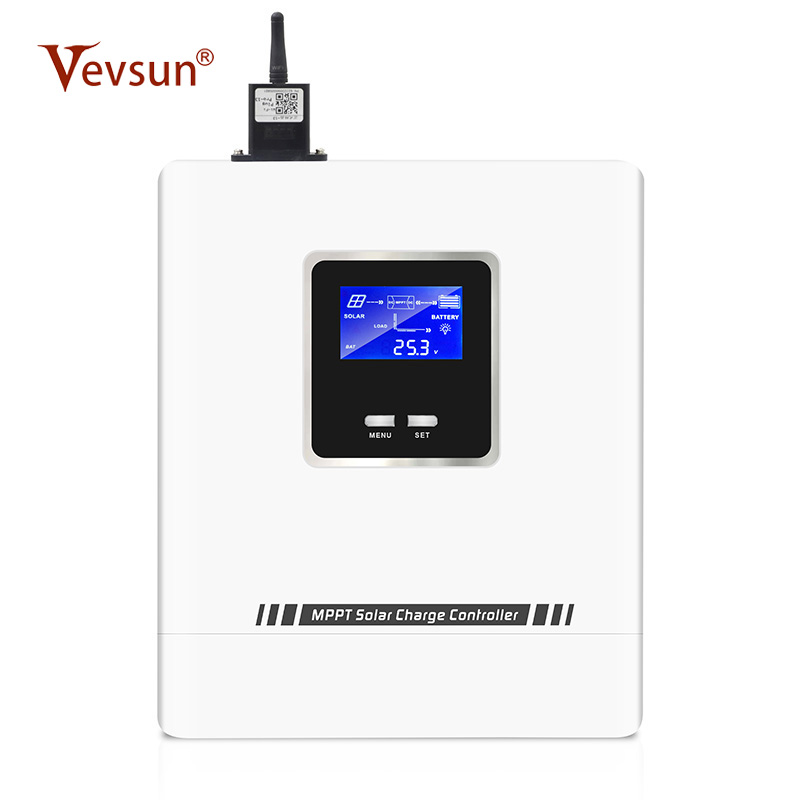

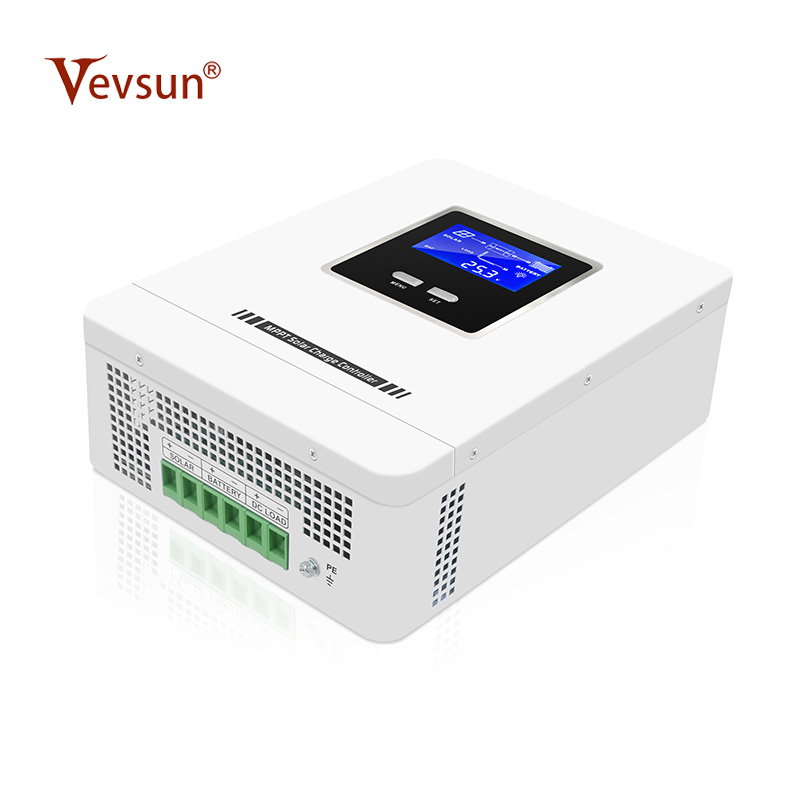

Product Details

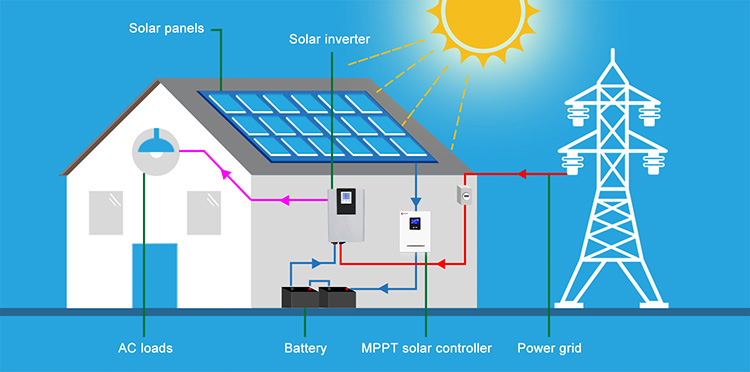

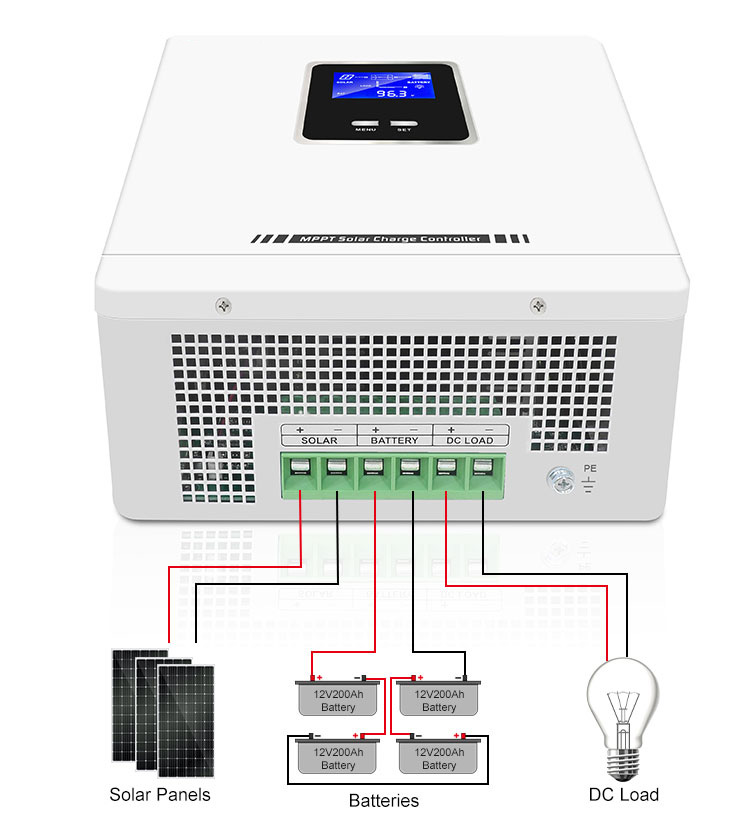

Solar system diagram
