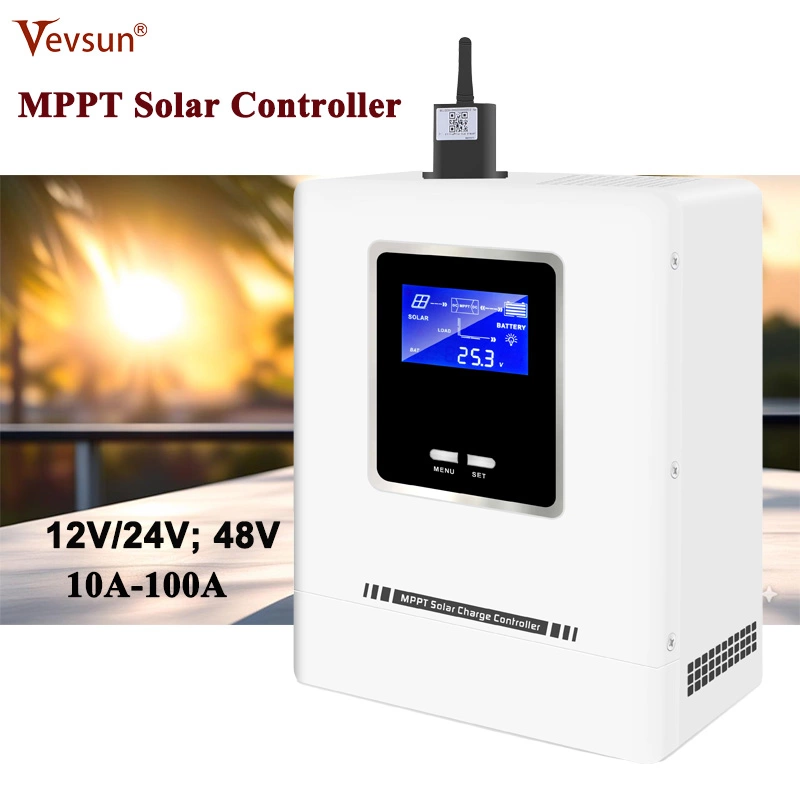

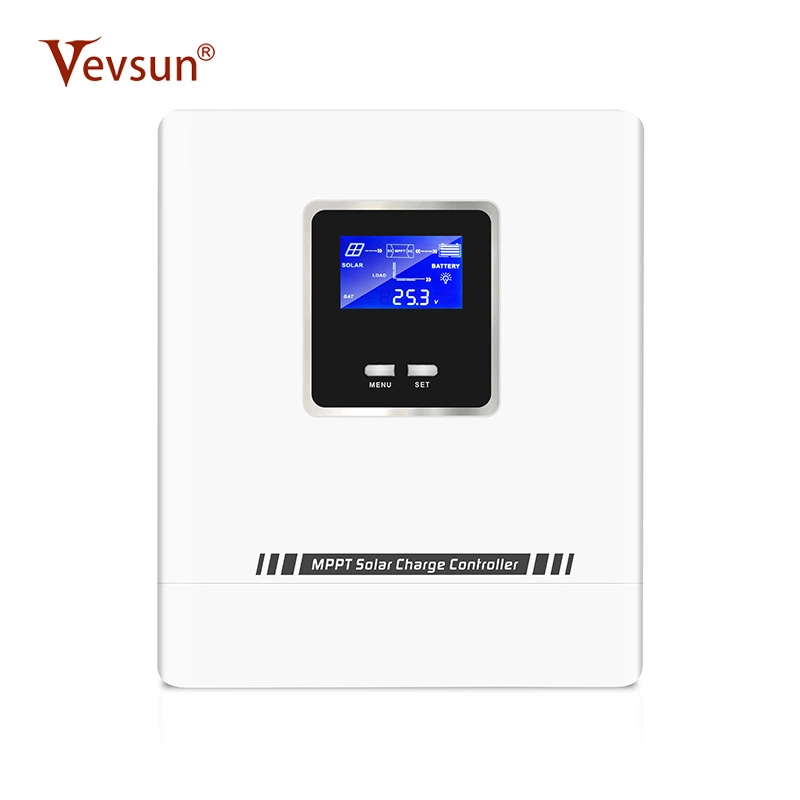

Wonder2 MPPT Solar Controller 12V/24V/48V (10A-100A)
Wonder 2 series is solar MPPT controller with voltage of 12V/24V/48VDC:10A-60A; 12V/24V/48VDC:80A-100A. With advance MPPT technology improve the tracking efficiency to 99%, make sure the system always operates at the highest efficiency point. Higher improve the solar generate power efficiency. This type controller can work with different type batteries, such as lithium battery, lead acid battery, deep cycle battery, gel battery, etc. App WIFI module optional for more convienent checking data of the solar panel, battery data from the phone APP.
Feature
◆Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary PWM algorithm, the power generation efficiency can be improved by about 20%；
◇ LCD graphic display of photovoltaic power generation data and simulation of power generation process；
◆ Multiple load working modes can be set to adapt to different working occasions；
◇ Ultra wide photovoltaic input voltage range, more convenient system configuration；
◆ It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters; Users are more flexible and convenient to use；
◇ Lithium battery activation function;
◆ Full range of electronic protection functions: battery anti reverse connection, PV anti reverse connection, charging over-current, DC output over-current, over temperature, over-voltage and undervoltage protection;
◇ Intelligent battery management function, extending battery life;

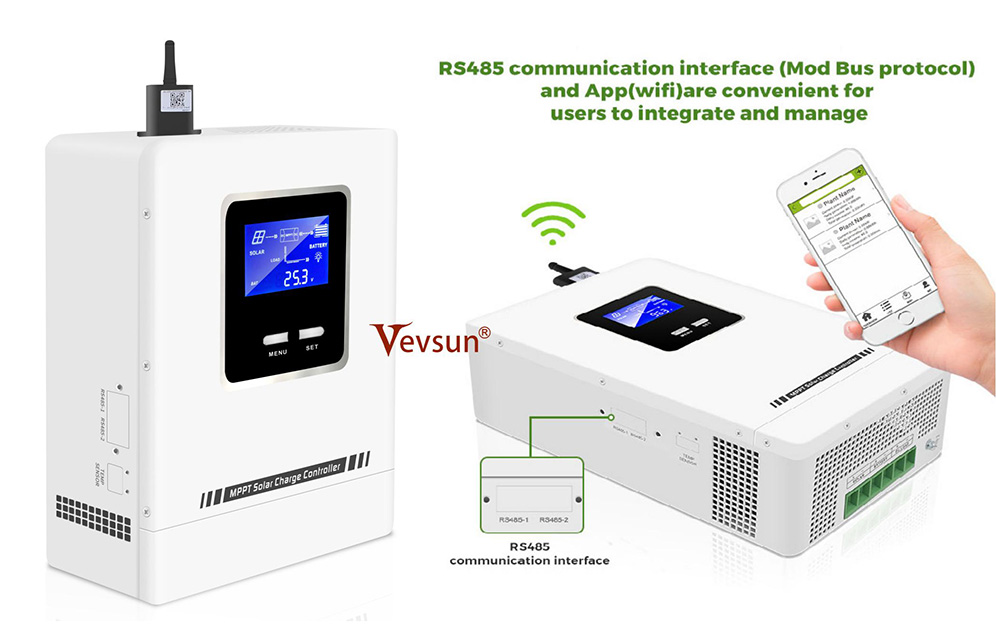

◆ RS485 communication interface (Mod Bus protocol) and mobile phone APP are convenient for users to integrate and manage.
Specification
| Model: Wonder1 |
150/10, 150/20, 150/30
(10/20/30) |
150/40， 150/50, 150/60
(40/50/60) |
150/80， 150/100
(80/100) |
| Rated Current |
10A/20A/30A |
40A/50A/60A |
80A/100A |
| Rated System Voltage |
12V/24V/48V Auto Recognition |
Max PV Input Voltage(Voc)
(At the lowest ambient temperature) |
150V |
| MPPT Tracking Voltage Range |
12V system：15V-120V；24V system：30V-120V；48V system：60V-120V |
| Recommended operating voltage range |
12V system：15V-20V；24V system：30V-40V；48V system：60V-80V |
| PV array Max power |
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A) |
| Battery Type |
Lead acid battery(Battery type base on user charge specification) |
| Floating Voltage |
13.8V/Single battery |
| Charge Voltage |
14.2V/Single battery |
| Charging Protection Voltage |
15V/Single battery |
| Promote recovery voltage |
13.8V/Single battery |
| Recovery voltage after low voltage disconnect |
12.5V/Single battery |
| Discharge Limited voltage |
10.5V/Single battery |
| Temperature Compensation Coefficient |
-3mV / ℃ / 2V (25℃ is base line) (Optional) |
| Charging Mode |
MPPT maximum power point tracking |
| Charging Method |
Three stages: constant current(MPPT); constant voltage; floating charge |
| Protection |
Over-voltage/under-voltage/over-temperature/PV anti-reverse protection |
| Conversion Efficiency |
>98% |
| MPPT Tracking Efficiency |
>99% |
| Machine Size(L*W*Hmm) |
185*135*65 |
240*143*74 |
280*180*100 |
| Package Size(L*W*Hmm) |
224*171*94（1pc）
351*233*196 (4pcs) |
281*181*103（1pc）
371*290*214 (4pcs) |
321*224*134（1pc）
457*330*142 (2pcs) |
| N.W(kg) |
1.15（1pc） |
1.8（1pc） |
3.7（1pc） |
| G.W.(kg) |
1.35（1pc） |
2（1pc） |
4.0（1pc） |
| System Parameters |
| Display |
LCD |
| Thermal Method |
Cooling fan in intelligent control |
| Type Of Mechanical Protection |
IP20 |
| Operating Temperature |
-15℃~+50℃ |
| Storage Temperature |
-20℃~+60℃ |
| Elevation |
5000m(Dreating above 2000m) |
| Humidity |
5%~95%(No condensation) |
| Communication |
RS485/APP（WIFI monitoring or GPRS monitoring） |
| Note: All specifications are subject to change without prior notice |
Product Details

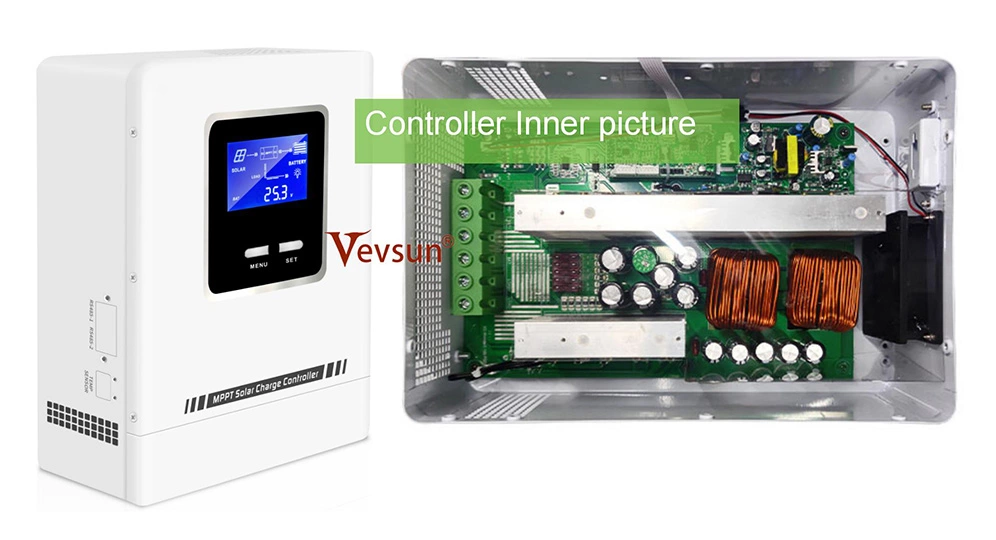

Solar MPPT Conller Inner PCB Board

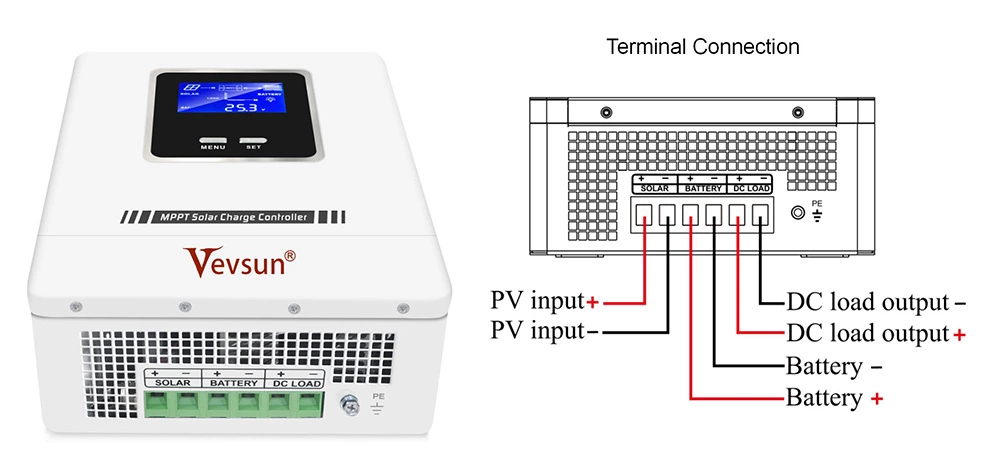

Solar MPPT Controller Terminal Connection

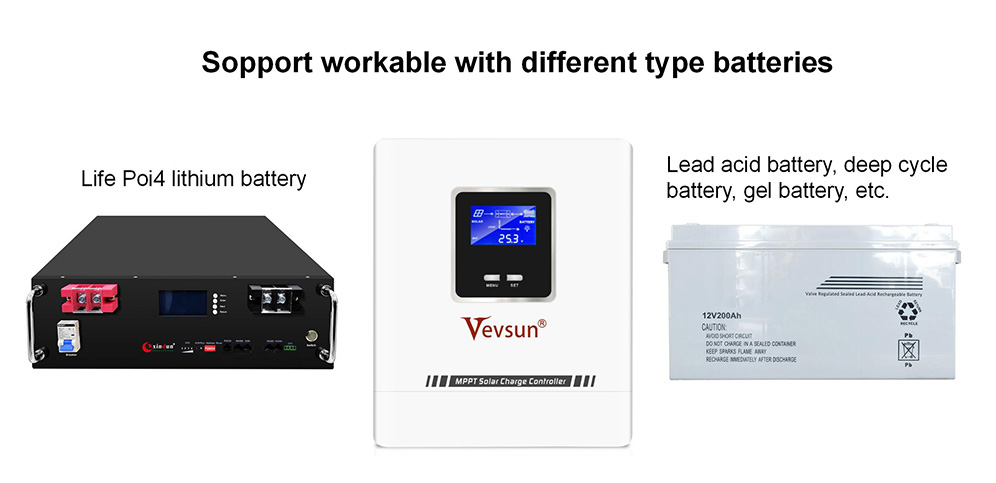

This Solar MPPT controller can work with different type batteries, such as normal lead acid battery, gel battery, solar deep cycle battery, and lithium battery, OPzV battery, etc.

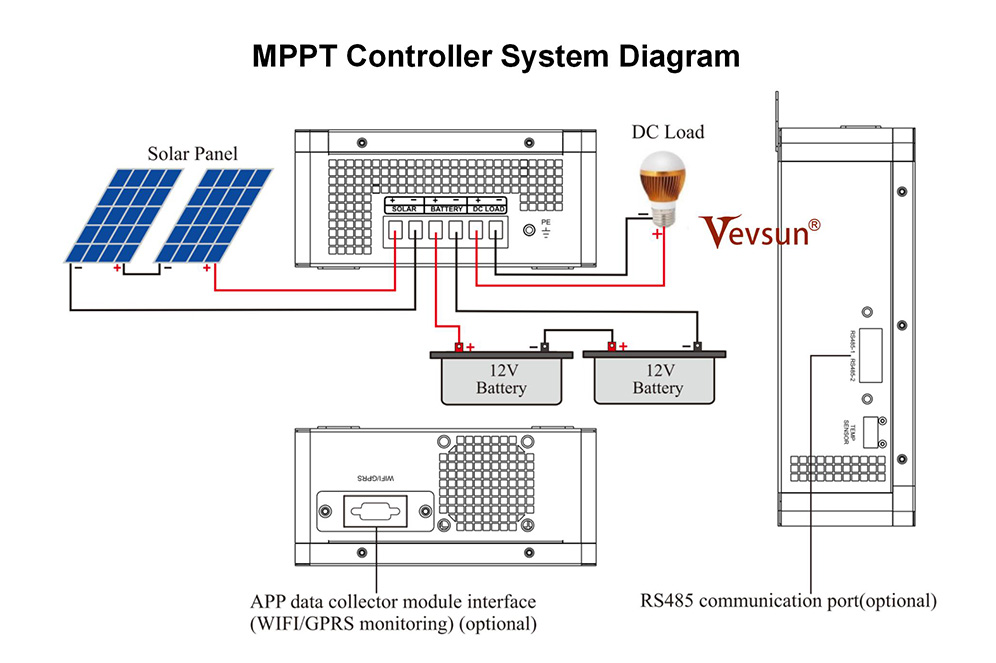

The Wonder 2 MPPT controller can choose with or without APP WIFI module, with APP WIFI module can easy check the solar power data from the mobile APP.
We can according to customer request to matched the right specification controller, and we accept OEM/ODM order for the MPPT controller.
