LWF Inverter/Solar Power Inverter (700W-40KW)

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

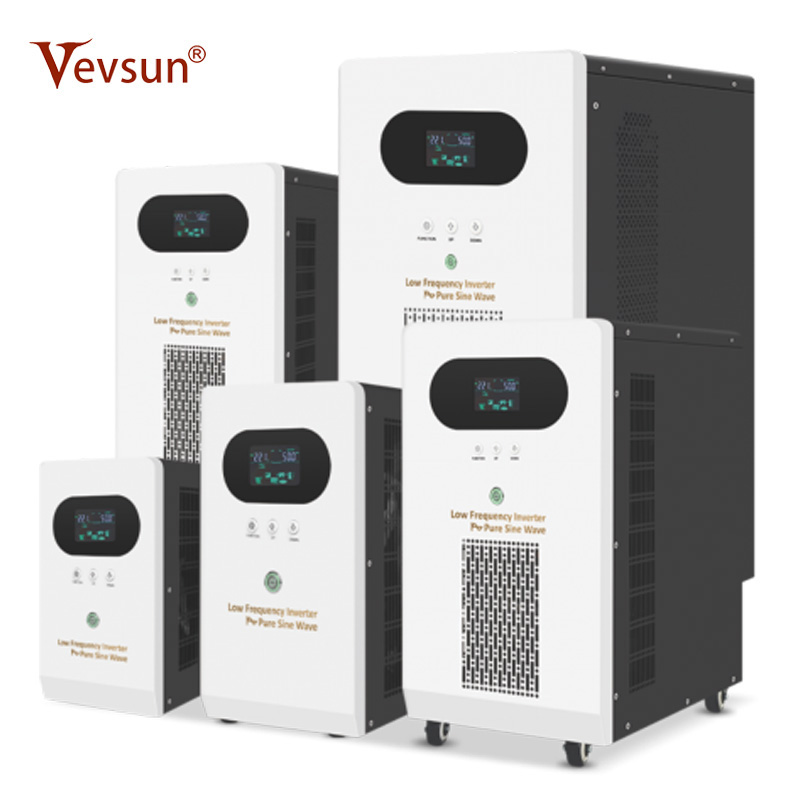

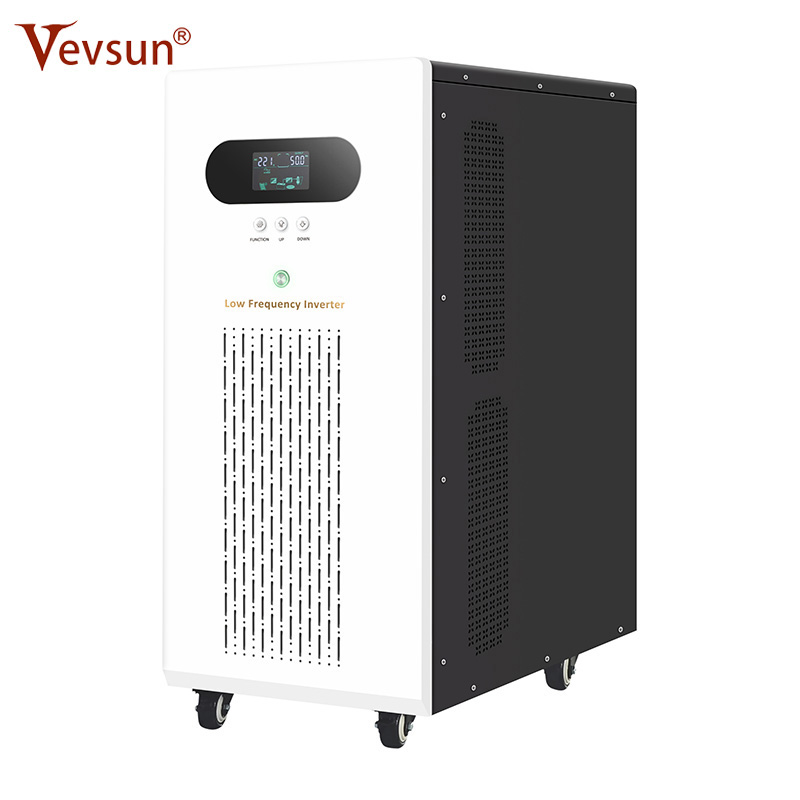

WF Inverter/Solar Inverter (700W-40KW)

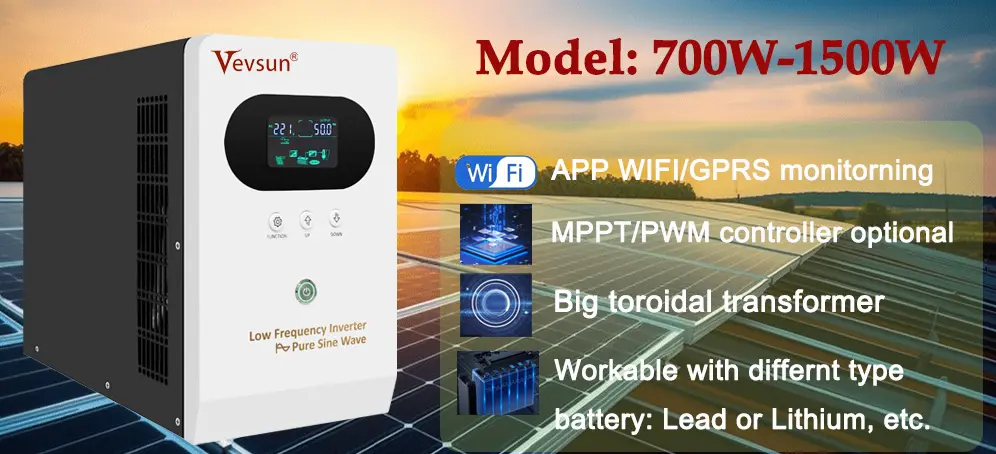

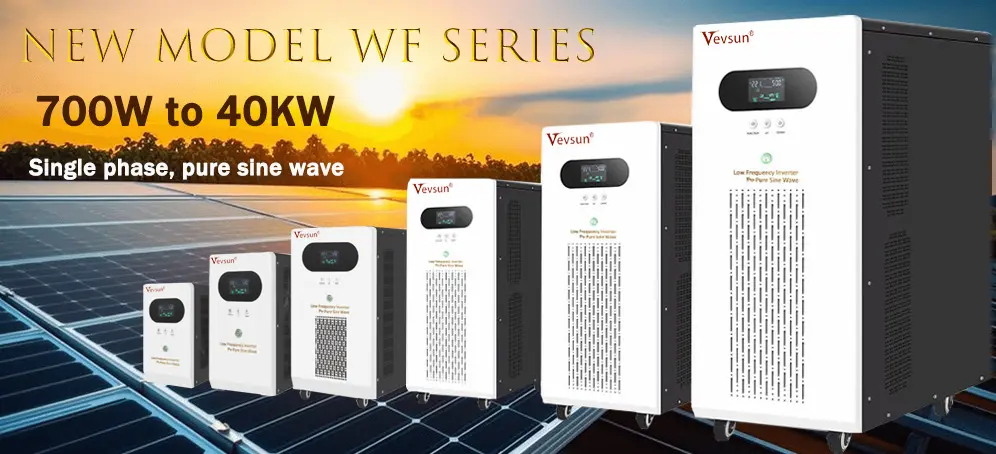

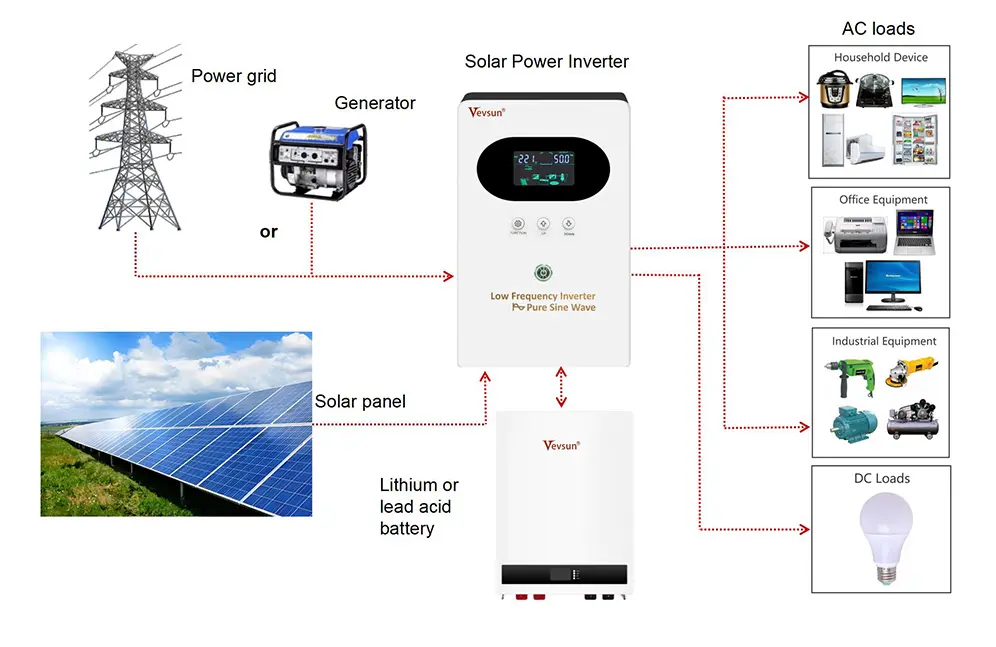

WF is the WD series update model, has wide power range of single phase solar inverter, smallest one can do 700W, biggest one can do 40KW. The inverter can choose with our without built in solar controller. If without built in controller, it can work like UPS. If with built in solar controller, it has PWM or MPPT controller optional, controller current can according to system request to matched. This series inverter also can work for different type batteries, like lead acid battery, deep cycle battery, gel battery, etc. Can choose with APP WIFI module, so easy to check the solar system data, like solar generate power, battery voltage, load percentage, etc.

Feature

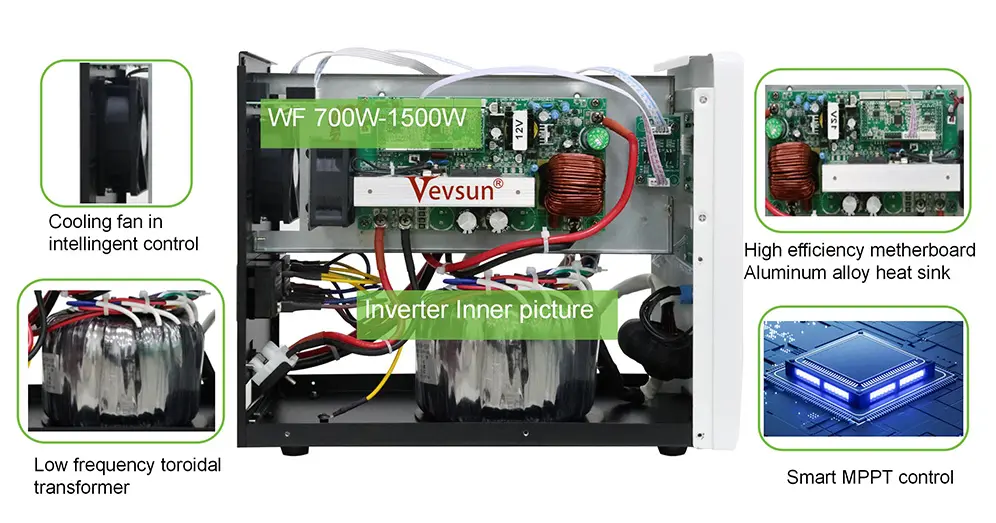

◆ With Toroidal low-loss transformer, high-efficiency inverter conversion, pure sine wave output.

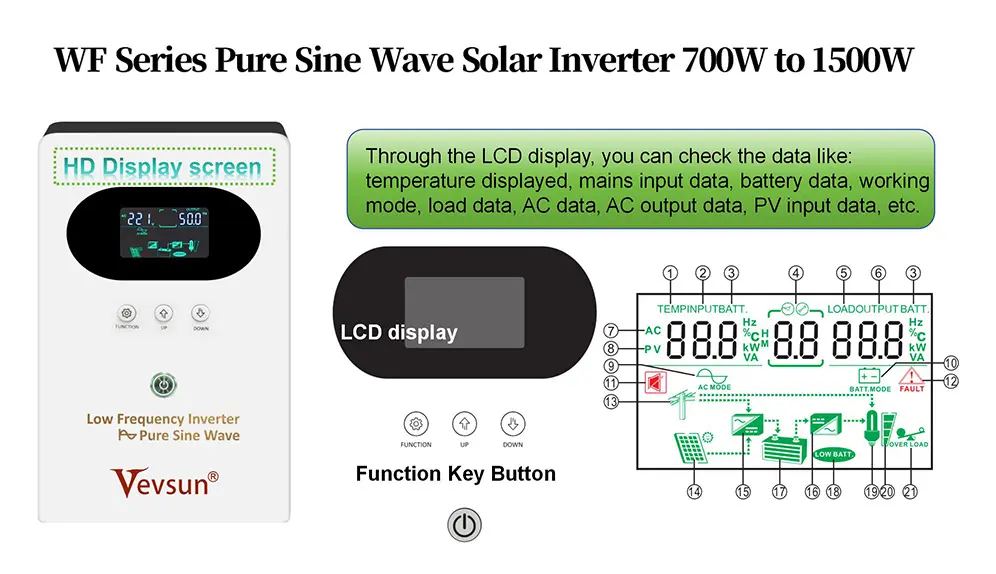

◆ Intelligent LCD display.

◆ The adjustable mains charging current range is 0-20A.

◆ Provide adjustable working modes: mains priority, inverter priority.

◆ Optional built-in PWM or MPPT solar controller to achieve high-efficiency charging.

◆ Support diesel and gasoline generators, suitable for various grid power.

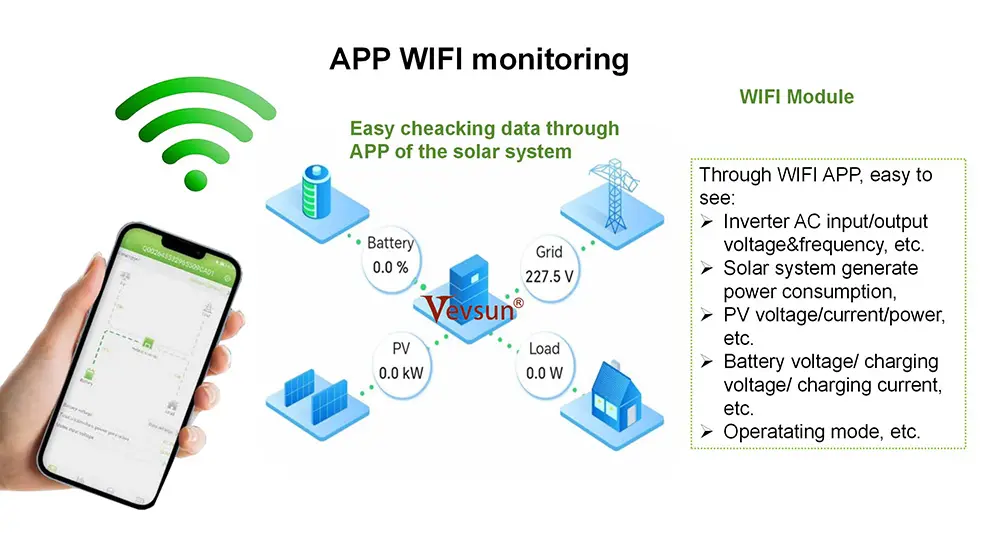

◆ Support RS485 communication /mobile APP (optional).

Specification

Model ：WF/WF-T		70112/24	10212/24	15224/48	20224/48	30224/48	35224/48	40248/96	50248/96	60248/96	70248/96
Rated Power		700W	1000W	1500W	2000W	3000W	3500W	4000W	5000W	6000W	7000W
Battery Voltage		12/24VDC	12/24VDC	24/48VDC	24/48VDC	24/48VDC	24/48VDC	48/96VDC
Max AC charging current		0A~20A（Depending on the model，The maximum charging power is 1/4 of the rated power）
Size(LWHmm)		340x165x283			410x200x350			493x260x506
Packing Size(LWHmm)		405x230x350			475x265x420			537x305x560
N.W.(kg)		8	9	10	18	20	21	28.5	31.5	33	34.5
G.W.(kg)		9	10	11	19	21	22	30	33	34.5	36.5
Installation Method		Tower
Inside Solar controlleri (Optional)	Charging Mode	MPPT
	Charging current	30A~60A			60A~100A			48V system: 60A~100A; 96V system: 60A
	PV Array MaximumPower	12V system: 420W(30A)560W(40A)/700W(50A)/840W(60A); 24V system: 840W(30A)/1120W(40A)/1400W(50A)/1680W(60A); 48V system: 1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)			24V system: 1680W(60A)/2240W(80A)/2800W(100A): 48V system: 3360W(60A)/4480W(80A)/5600W(100A)			48V system: 3360W(60A)/4480W(80A)/5600W(100A); 96V system: 6720W(60A)
	Max PV Input voltage(Voc) (At the lowesttemperature)	12V/24V system: 120VDC; 48V system: 180VDC						48V system: 180VDC; 96V system: 300VDC
	MPPT tracking range	12V systcm: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V						48V system: 60V-140V; 96V system: 120V-240V
	Standby loss	≤3W
	Maximum conversion efficiency	＞95%
Model ：WF/WF-T		80248/96/192	10348/96/192	12396/192	153192	203192	253240	303240		403384
Rated Power		8000W	10KW	12KW	15KW	20KW	25KW	30KW		40KW
Battery Voltage		48/96/192VDC		96/192VDC	192VDC	192VDC	240VDC	240VDC		384VDC
Max AC charging current		0A~40A（Depending on the model，The maximum charging power is 1/4 of the rated power）			0A~20A（Depending on the model，The maximum charging power is 1/4 of the rated power）
Size(LWHmm)		540x350x695			601x370x822			721x400x1005
Packing Size(LWHmm)		600410810			656x420x937			775x465x1120
N.W.(kg)		51	65	68	110	116	123	183		208
G.W.(kg)		61	75	78	124	130	137	202		227
Installation Method		Tower
Inside Solar controlleri (Optional)	Charging Mode	MPPT
	Charging current	48V system: 100A; 96V system: 50A/100A;192V system: 50A			50A/100A
	PV Array MaximumPower	48V system: 5600W(100A); 96V system: 5.6KW(50A)/11.2KW(100A); 192V system: 11.2KW(50A)			192V system: 11.2KW(50A)/11.22KW(100A); 240V system: 14KW(50A)/142KW(100A); 384V system: 22.4KW(50A)/22.4*2KW(100A)
	Max PV Input voltage(Voc) (At the lowesttemperature)	48V system: 180VDC; 96V system: 300VDC; 192V system: 450VDC			192V system: 450VDC; 240V system: 500VDC; 384V system: 800VDC
	MPPT tracking range	48V system: 60V-140V; 96V system: 120V-240V;192V system: 240V-360V			192V system: 240V-360V; 240V system: 300V-400V, 384V system: 480V-640V
	Standby loss	≤3W
	Maximum conversion efficiency	＞95%
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	68VAC~133VAC(105VAC)/73VAC~138VAC(110VAC)/78VAC~143VAC(115VAC)/83VAC~148VAC(120VAC)/145VAC-275VAC(220VAC)/155VAC~285VAC(230VAC)/165VAC~295VAC(240VAC)(700W~7000W) 87VAC~123VAC(105VAC)/92VAC~128VAC(110VAC)/97VAC~133VAC(115VAC)/102VAC~138VAC(120VAC)/185VAC~255VAC(220VAC)/195VAC~265VAC(230VAC)/205VAC~275VAC(240VAC)(8KW~40KW)
	AC Input Frequency Range	45Hz~55Hz（50Hz）/ 55Hz~65Hz（60Hz）
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	AC 105V~120V model: 105VAC±2%/110VAC±2%/115VAC±2%/120VAC±2%(can be set) AC 220V~240V model: 220VAC±2%/230VAC±2%/240VAC±2%(can be set)
	Output Frequency(Battery Mode)	50/60Hz±1%(can be set)
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	AC 105V~120V model: 105VAC±10%/110VAC±10%/115VAC±10%/120VAC±10%(can be set) AC 220V~240V model: 220VAC±10%/230VAC±10%/240VAC±10%(can be set)(700W~7000W) Follow input (8KW~40KW)
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion (Battery Mode)	≤3%（Linear load）
	No load loss(Battery Mode)	≤1% rated power
	No load loss(AC Mode)	≤2% rated power（ charger does not work in AC mode）
	No load loss (Energy saving Mode)	≤10W
Battery Type	Custom battery	Charging and discharging parameters of different types of batteries can be set through theoperation panel by oneself
Protection	Battery lowvoltage alarm	Factory default: Pb:11V/Single battery voltage;LI* :10%of the battery capacity
	Battery lowvoltage protection	Factory default: Pb:10.5V/Single battery voltage ;LI*: 5% of the battery capacity
	Battery overvoltage alarm	Factory default: Pb:15.5V/Single battcry voltage;LI* : following BMS instruction
	Battery overvoltage protection	Factory default: Pb:17V/Single battery voltage;Ll* : following BMS instruction
	Battery overvoltage recovery voltage	Factory default: Pb:14.5V/Single battery voltage; LI* : following BMS instruction
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD
Thermal method		Cooling fan in intelligent control
Communication(Optional)		RS485/APP(WIFI/GPRS data collcctor)
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
