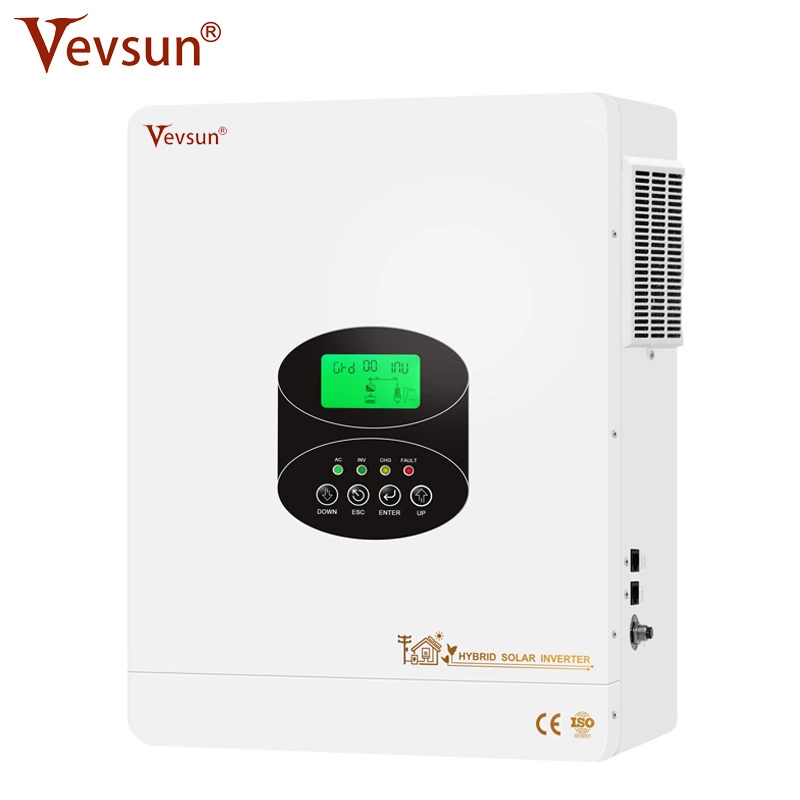

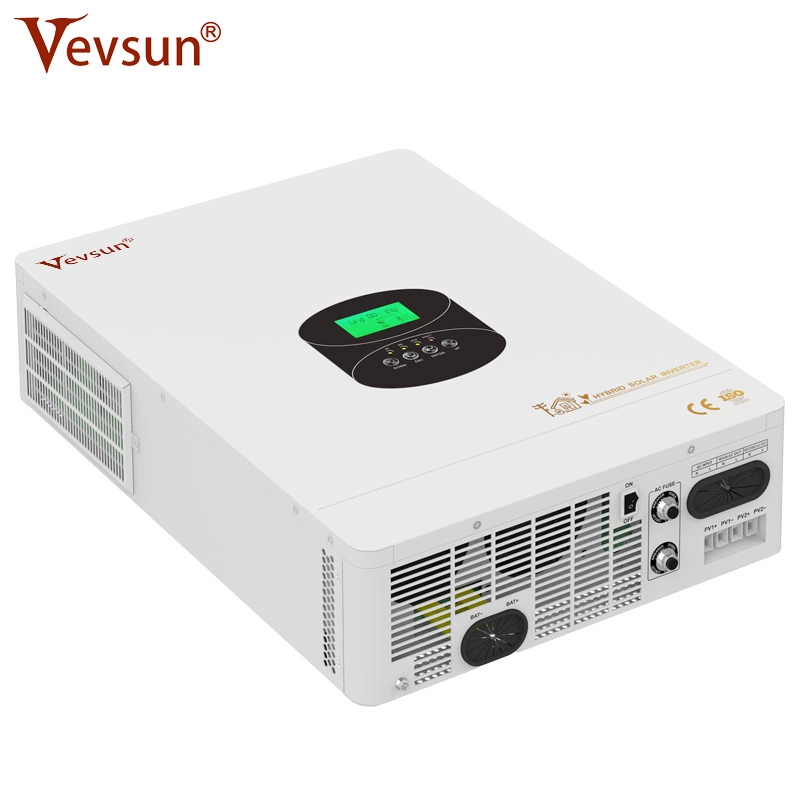

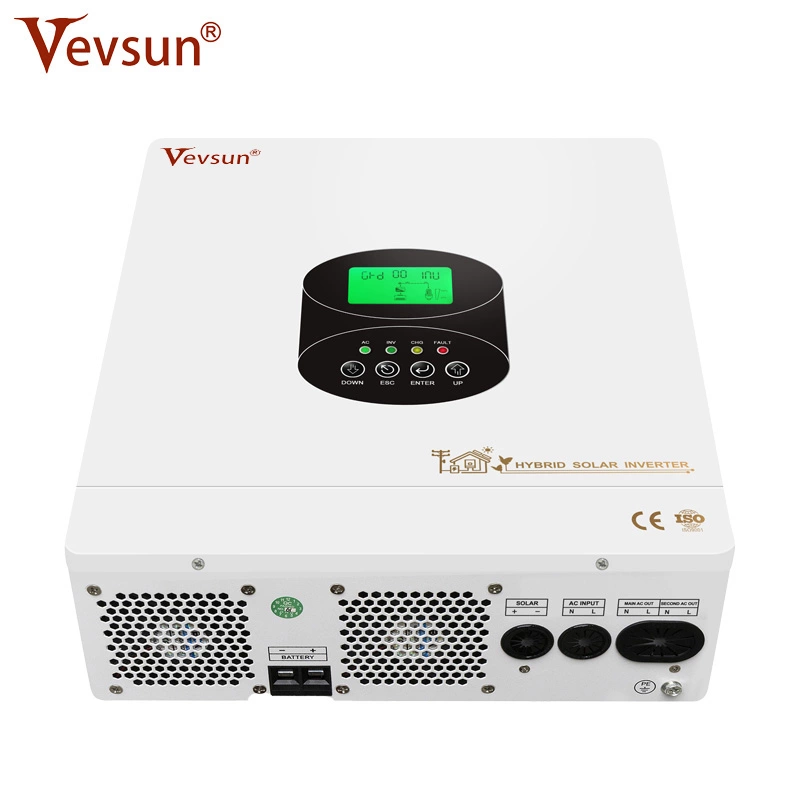

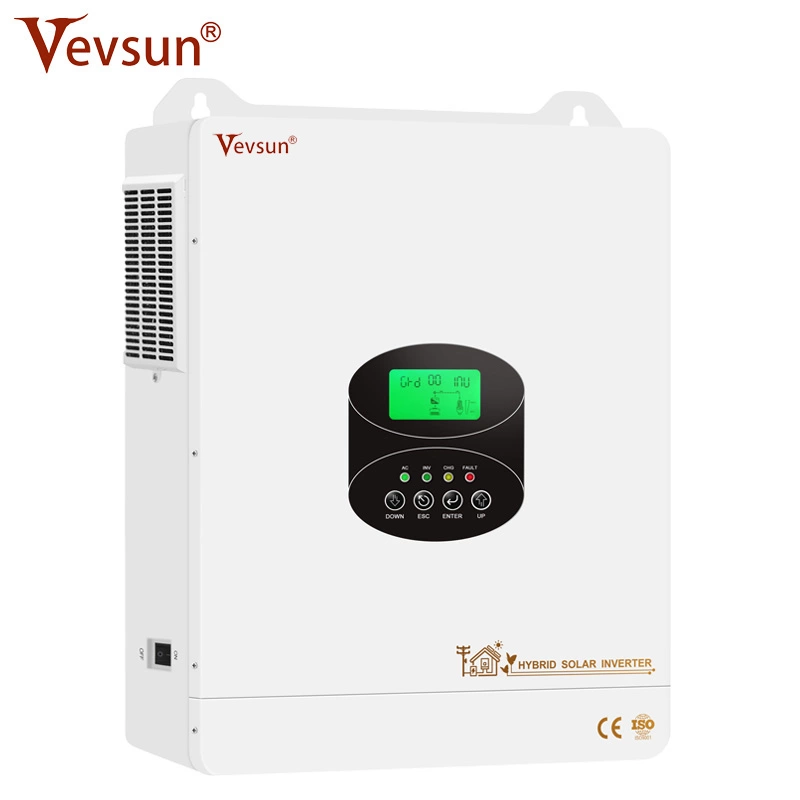

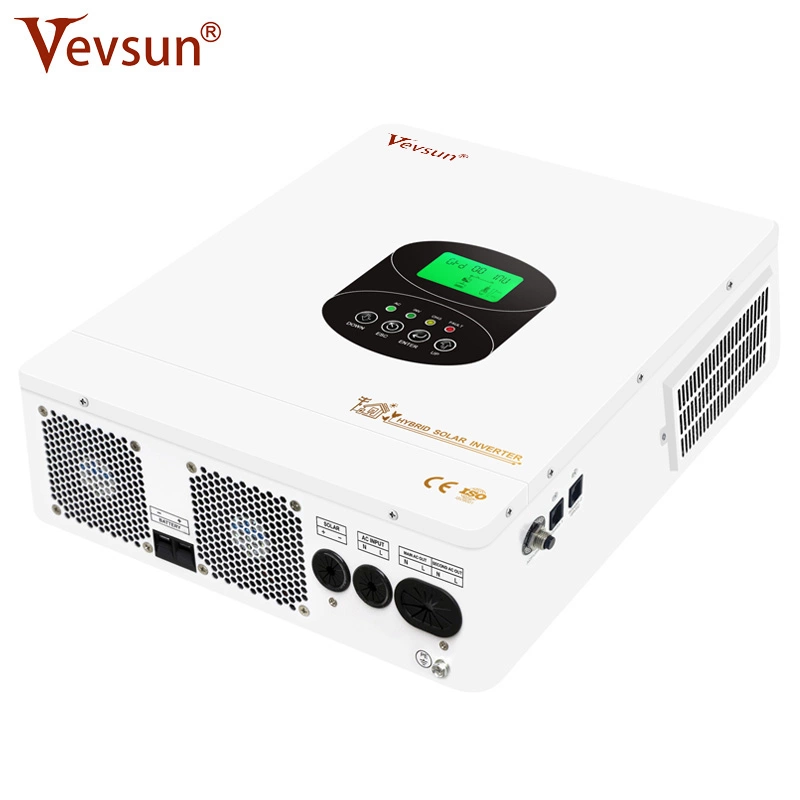

Solar Hybrid Inverter HFP-S On-off Grid 3.3KW-12.3KW
High frequency inverter HFP-S on-off grid solar hybrid inverter, power 3.3KW/ 4.3KW/ 6.3KW/ 8.3KW/ 10.3KW/ 12.3KW, DC 24V or 48V to AC 220V,230V,240VAC, with built in width MPPT DC voltage range and big current. Max. PV input voltage 500VDC. Workable with lithium battery, lead acid battery, also can work without battery. Factory OEM service, directly whosale supply.
Feature
◆ Dual output, intelligent load management design;
◆ Adopting high-frequency design, high power density, small size, and high overall efficiency;
◆ Bidirectional energy storage design, which can achieve bidirectional flow control of electrical energy, and both photovoltaic and mains electricity can be charged to the battery;
◆ Ultra wide MPPT range, with a minimum of 40Vdc(24V models) / 80Vdc(48V models);
◆ Capable of setting working modes (grid connected mode, off grid mode, hybrid mode);
◆ Equipped with grid connected current setting function;
◆ Equipped with output priority setting function;
◆ Equipped with charging priority setting function;
◆ Equipped with lithium battery BMS communication function;
◆ Equipped with dust-proof kit;
◆ Support battery-less operation mode.
Specification
| Model ： HFP-S |
33224 |
43224 |
50248 |
63248 |
83248 |
103248 |
123248 |
| PV |
Max PV Input Power |
5000W |
6000W |
7000W |
4500W*2 |
6000W*2 |
6000W*2 |
| MPPT Tracking Voltage Range |
40VDC-450VDC |
80VDC-450VDC |
| Rated Voltage |
240VDC |
280VDC |
Max PV Input Voltage voc
(at the lowest temperature) |
500VDC |
| Max PV Input Current |
18A |
27A |
18A*2 |
22A*2 |
27A*2 |
MPPT Tracking Channels
(Input Routed ) |
1 Routed |
2 Routed |
Battery&
Charging |
Battery Type |
Lead-acid Battery/Lithium Battery |
| Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board) |
| Rated Battery Voltage |
24VDC |
48VDC |
| Battery voltage Range |
21~30VDC(default) |
42~60VDC(default) |
| Max PV Charging Current |
120A |
150A |
100A |
120A |
150A |
180A |
200A |
| Max AC Charging Current |
80A |
100A |
60A |
80A |
100A |
120A |
140A |
| Max Charging Current |
120A |
150A |
100A |
120A |
150A |
180A |
200A |
| On-Grid Operation |
On-Grid
Output
(AC) |
Rated Output Power |
3300W |
4300W |
5000W |
6300W |
8300W |
10.3KW |
12.3KW |
| Rated Output Voltage |
220VAC/230VAC/240VAC |
| Grid Voltage Range |
187VAC~264VAC |
| Rated Output Frequency |
50Hz/60Hz |
| Frequency Range |
47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) |
| Rated Output Current |
15A/14.3A
/13.8A |
19.5A/18.7A
/17.9A |
22.7A/21.7A
/20.8A |
28.6A/27.4A
/26.2A |
37.7A/36.1A
/34.6A |
46.7A/44.9A
/42.9A |
55.9A/53.5A
/51.3A |
| Power Factor |
＞0.98(Rated Power) |
| Off-Grid Operation |
AC
Input |
Rated Input voltage |
220V /230V/240V |
| Mains input voltage range |
165VAC-280VAC/ 120VAC~280VAC(Can be set) |
| Rated Input Frequency |
50Hz/60Hz |
| Input Frequency Range |
45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) |
AC
Output |
Rated Output Power |
3300W |
4300W |
5000W |
6300W |
8300W |
10.3KW |
12.3KW |
| Rated Output Voltage |
220V /230V/240V |
| Output Voltage Accuracy |
±2% |
| Rated Input Frequency |
50Hz/60Hz |
| Output Frequency Accuracy |
±1% |
| Output Wave |
Pure Sine Wave |
| Hybrid Operation (Complementary Mode) |
AC
Input |
Rated Input voltage |
220V /230V/240V |
| Mains input voltage range |
187VAC~264VAC |
| Rated Input Frequency |
50Hz/60Hz |
| Input Frequency Range |
47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz) |
AC
Output |
Rated Output Power |
3300W |
4300W |
5000W |
6300W |
8300W |
10.3KW |
12.3KW |
| Rated Voltage Rated |
220VAC/230VAC/240VAC |
| Output Current |
15A/14.3A
/13.8A |
19.5A/18.7A
/17.9A |
22.7A/21.7A
/20.8A |
28.6A/27.4A
/26.2A |
37.7A/36.1A
/34.6A |
46.7A/44.9A
/42.9A |
55.9A/53.5A
/51.3A |
| Regular Parameters |
Maximum Conversion Efficiency
(Battery Discharge) |
94%(peak value) |
| MPPT Tracking Efficiency |
≥99.9 |
| Transfer Time |
10ms(Typical value) |
| Display |
LCD+LED |
| Cooling Method |
Cooling fan in intelligent control |
| Communication |
RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) |
| Protection Degree |
IP20 |
| Installation |
Wall-Mounted |
| Protection Degree |
Battery low voltage alarm |
22VDC（default value） |
44VDC(default value） |
| Battery low voltage protection |
21VDC（default value） |
42VDC（default value） |
| Anti-islanding protection |
≤2S |
| overload power protection |
Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) |
Inverter output short circuit
protection |
Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) |
| Temperature protection |
＞90 ℃(Turn off inverter and charging) |
| Environment |
Operating temperature |
-10℃~50℃ |
| Storage temperature |
-15℃~60℃ |
| Noise |
≤55dB |
| Elevation |
2000m（More than derating） |
| Humidity |
0%~95% ,No condensation |
| Dimension and Weight |
| Product Size(L*W*Hmm) |
325*275*102 |
375*297*102 |
390*320*112 |
515*365*117 |
535*462*117 |
630*540*130 |
| Package Size(L*W*Hmm) |
400*330*167 |
450*352*167 |
465*375*187 |
615*460*212 |
630*557*212 |
730*635*225 |
| N.W.(kg) |
5.5 |
6.6 |
7 |
8 |
13 |
14.5 |
22 |
| G.W.(kg) |
6.4 |
7.6 |
8 |
9.3 |
15 |
17 |
25 |
