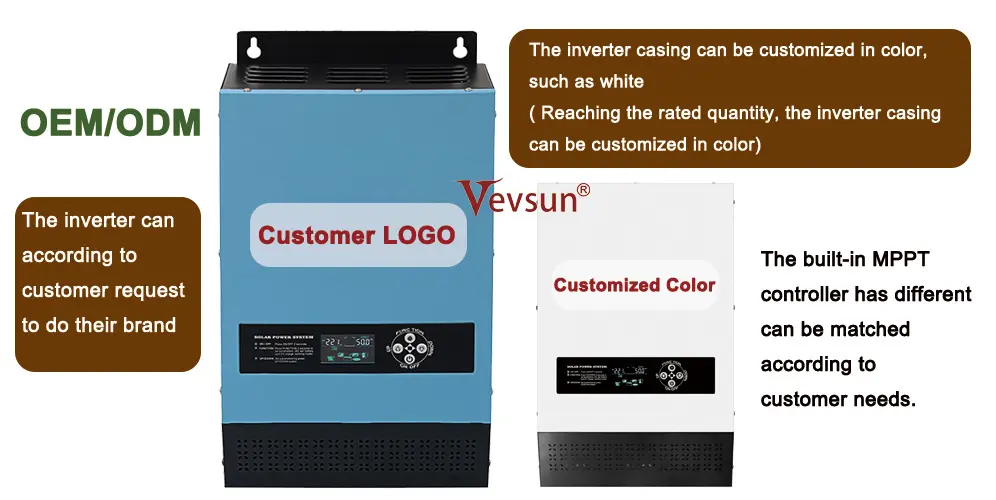

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

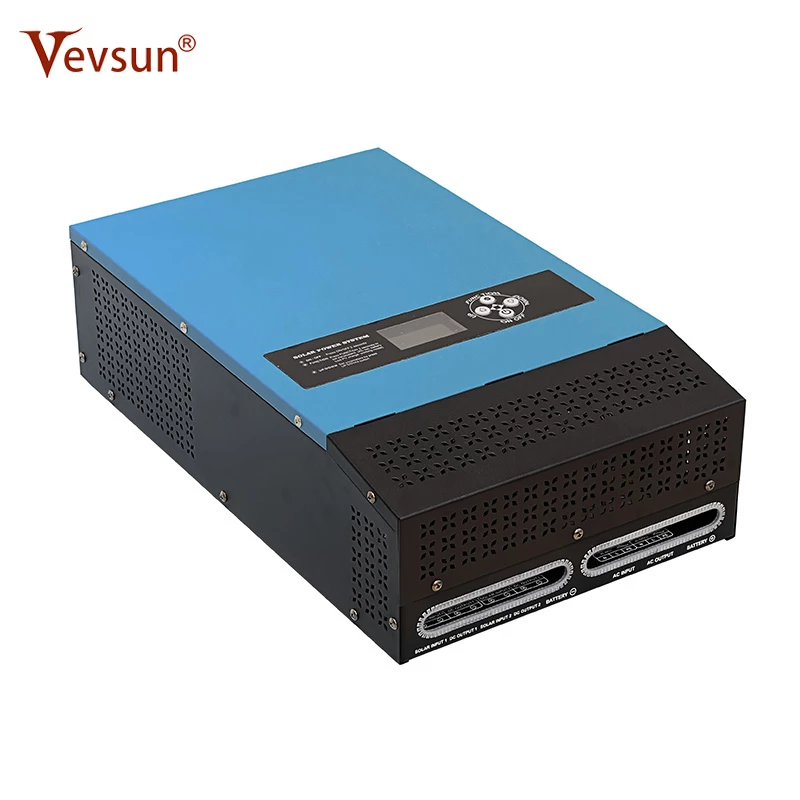

LS Inverter Charger / Solar Inverter Charger (1KW-6KW)

As an advanced power device integrating inverter and charger functions, the LS Inverter Charger is designed to provide efficient, stable, and intelligent power conversion and storage solutions for various power demand scenarios. It seamlessly integrates inverter and charging technologies, becoming a key component in off-grid and hybrid power systems, and is widely used in residential, commercial, and industrial fields.

Feature

◆ Pure sine wave output;

◇ Low frequency toroidal transformer lower loss;

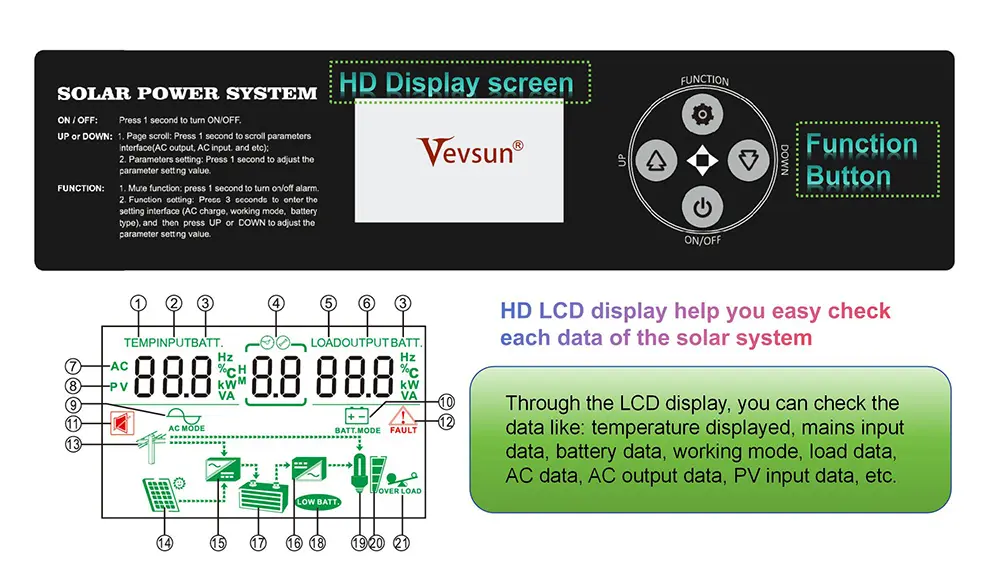

◆ Intelligent LCD integration display;

◇ Built-in PWM or MPPT controller optional;

◆ AC charge current 0~30A adjustable, three working modes selectable;

◇ Peak power more than 3 times, full-automatic and perfect protection function;

◆ Added fault code query function, easy to monitor the operation in real time;

◇ Supports diesel or gasoline generator, adapt any tough electricity situation;

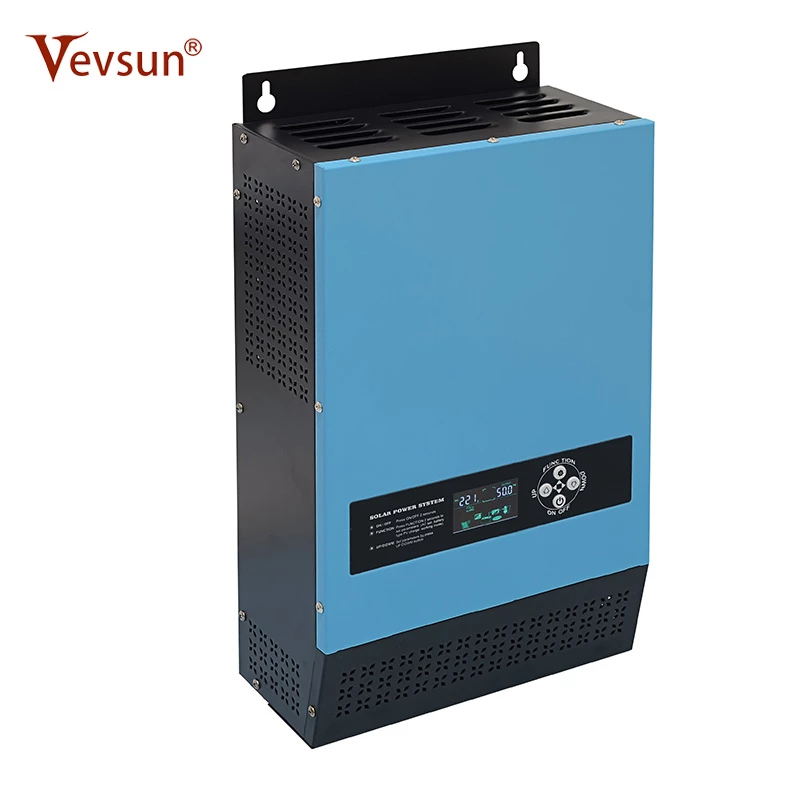

◆ Combine industrial and home usage, wall-mounted design, convenient installation.

Specification

Model LS		10212/24/48 (102)	15212/24/48 (152)	20212/24/48 (202)	30224/48 (302)	40224/48 (402)	50248 (502)	60248 (602)
Rated Power		1000W	1500W	2000W	3000W	4000W	5000W	6000W
Peak Power（20ms)		3000VA	4500VA	6000VA	9000VA	12000VA	15000VA	18000VA
Start Motor		1HP	1.5HP	2HP	3HP	3HP	4HP	4HP
Battery Voltage		12/24/48VDC			24/48VDC	24/48VDC	48VDC
Size(LWHmm)		500300140				530335150
Packing Size(LWHmm)		565395225				605430235
N.W.(kg)		12	13.5	18	20	22	24	26
G.W.(kg)（Carton Packing）		13.5	15	19.5	21.5	24	26	28
Installation Method		Wall-Mounted
Parameter
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	85VAC~138VAC（110VAC） / 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC）
	AC Input Frequency Range	45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
	Max AC charging current	0~30A(Depends on model)
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50/60Hz±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
	Output Frequency(AC Mode)	Tracking Automatically
	Output waveform distortion (Battery Mode)	≤3%（Linear load）
	No load loss(Battery Mode)	≤0.8% rated power
	No load loss(AC Mode)	≤2% rated power（ charger does not work in AC mode）
	No load loss (Energy saving Mode)	≤10W
Battery Type	VRLA Battery	Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage）
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	Factory default: 11V（Single battery voltage）
	Battery undervoltage protection	Factory default: 10.5V（Single battery voltage）
	Battery overvoltage alarm	Factory default: 15V（Single battery voltage）
	Battery overvoltage protection	Factory default: 17V（Single battery voltage）
	Battery overvoltage recovery voltage	Factory default: 14.5V（Single battery voltage）
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	MPPT or PWM
	Charging current	10A~60A（PWM or MPPT）				10A~60A(PWM ) / 10A~100A(MPPT)
	PV Input Voltage Range	PWM: 15V-44V(12V System); 30V-44V(24V System); 60V-88V(48V System) MPPT: 15V-120V(12V System); 30V-120V(24V System); 60V-120V(48V System)
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 50V(12V/24V System ); 100V(48V System) / MPPT: 150V
	PV Array Maximum Power	12V System: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A）/1120W(80A)/1400W(100A）; 24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A; 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A）
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD
Thermal method		Cooling fan in intelligent control

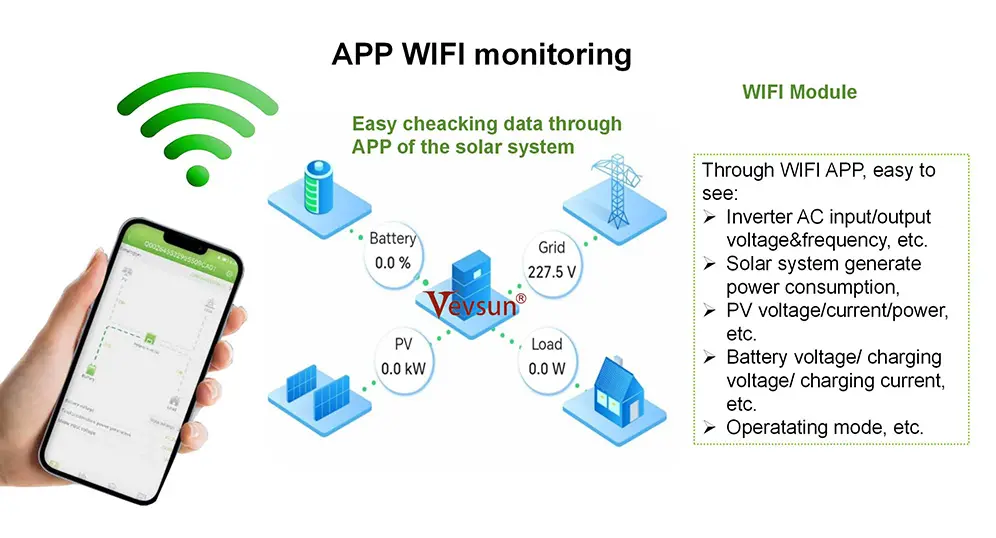

Communication		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	≤55dB
	Storage temperature	-10℃~40℃
	Noise	-15℃~60℃
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
