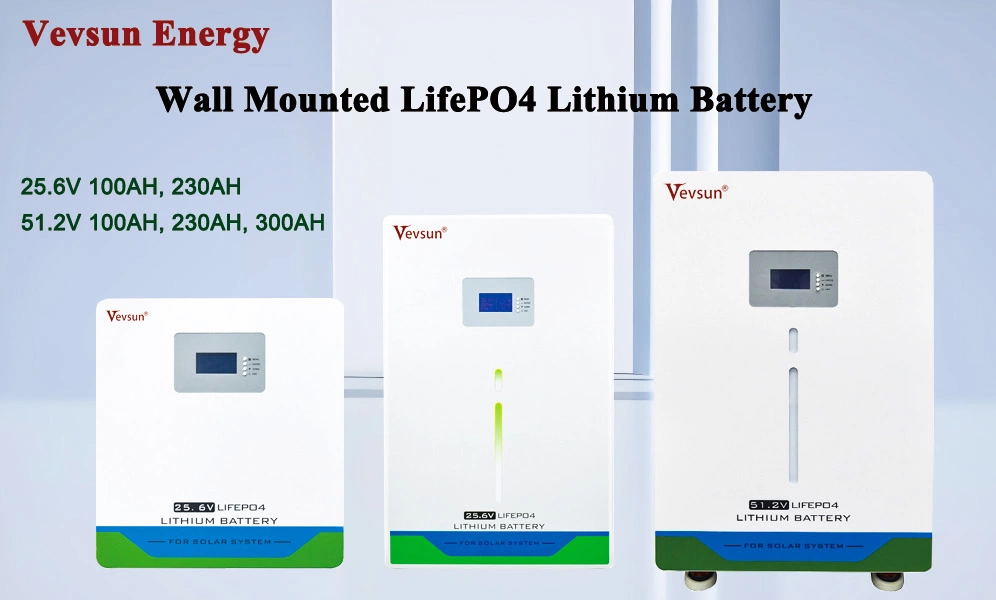

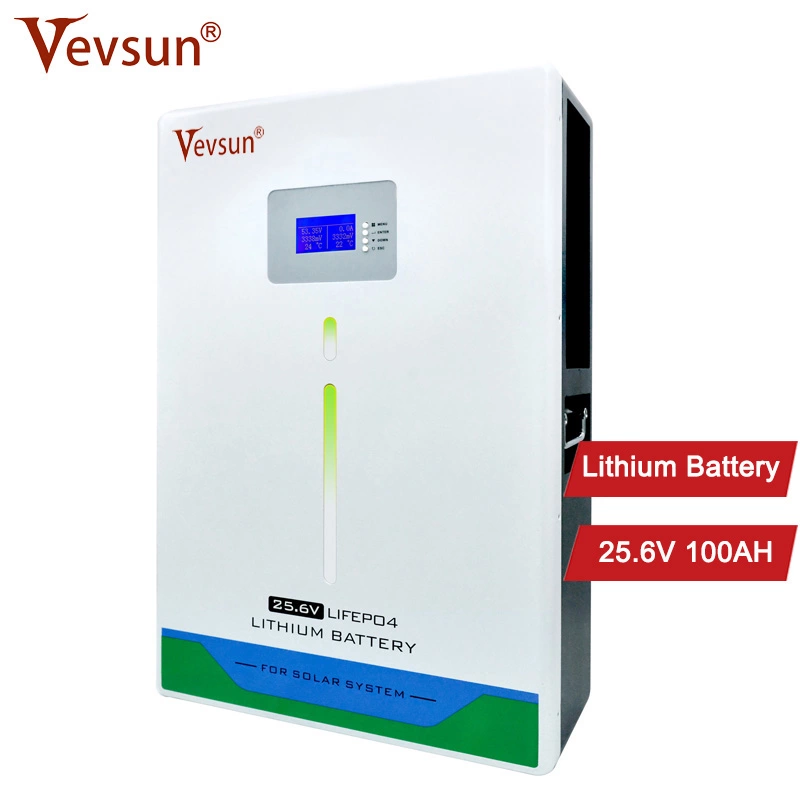

Wall mounted LifePO4 Lithium Battery

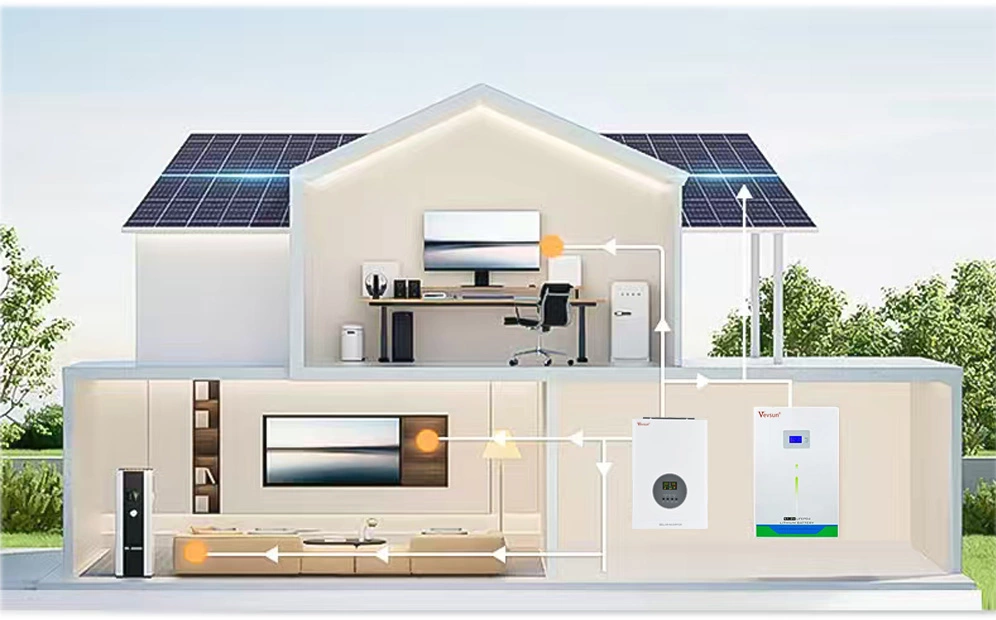

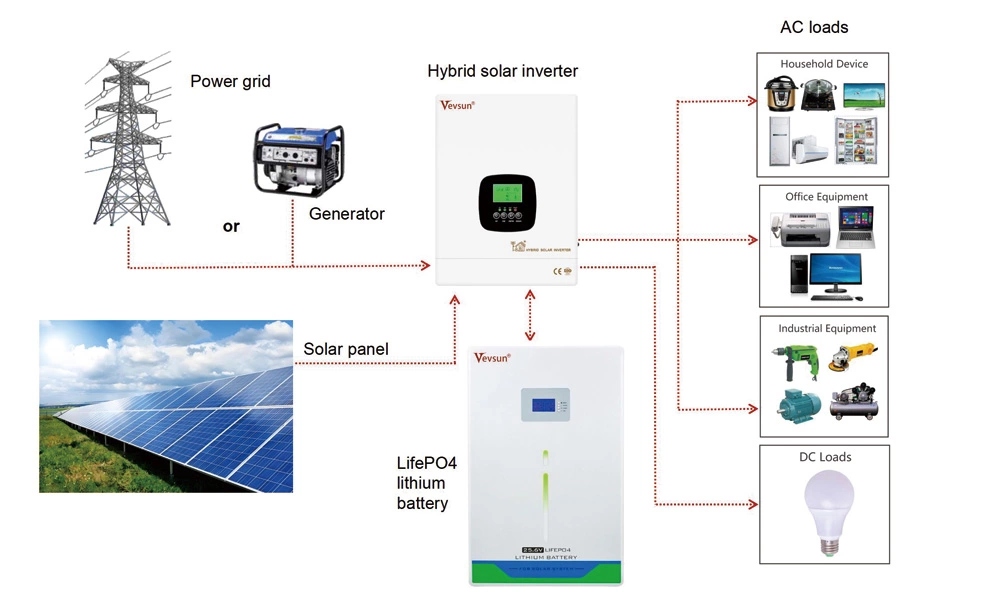

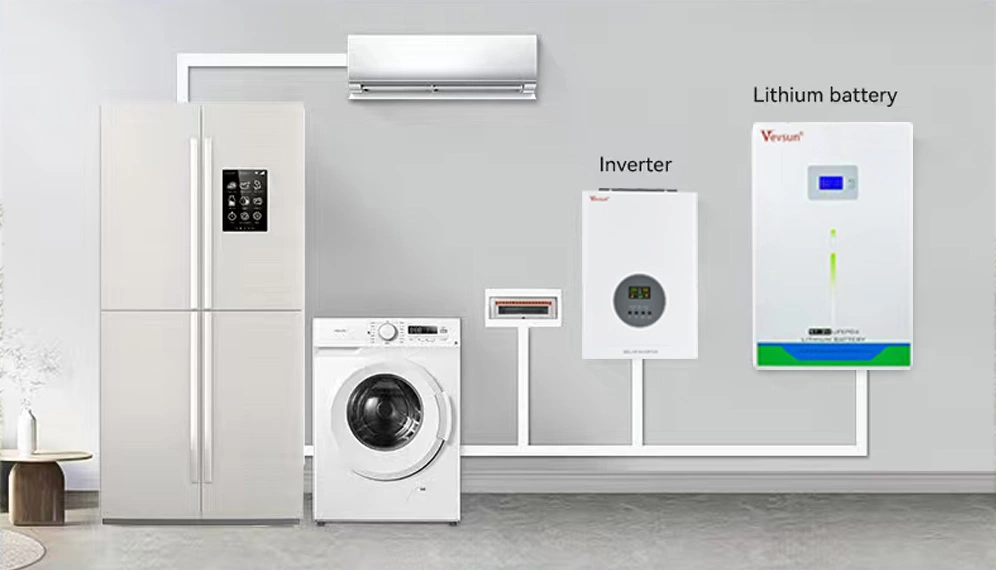

Lithium battery is the mostly hot sale products now all over the word. We provide low voltage to high voltage models, such as 12.8V 50AH, 100AH, 200AH, 25.6V, 51.2V, 96V, 192V, 384V, 100AH to 600AH, etc. Mostly now use for solar energy system storage. Our battery has all the cerfiticates, such as MSDS, UN38.3, dangerous goods packaging certificate, etc.

OEM&ODM service

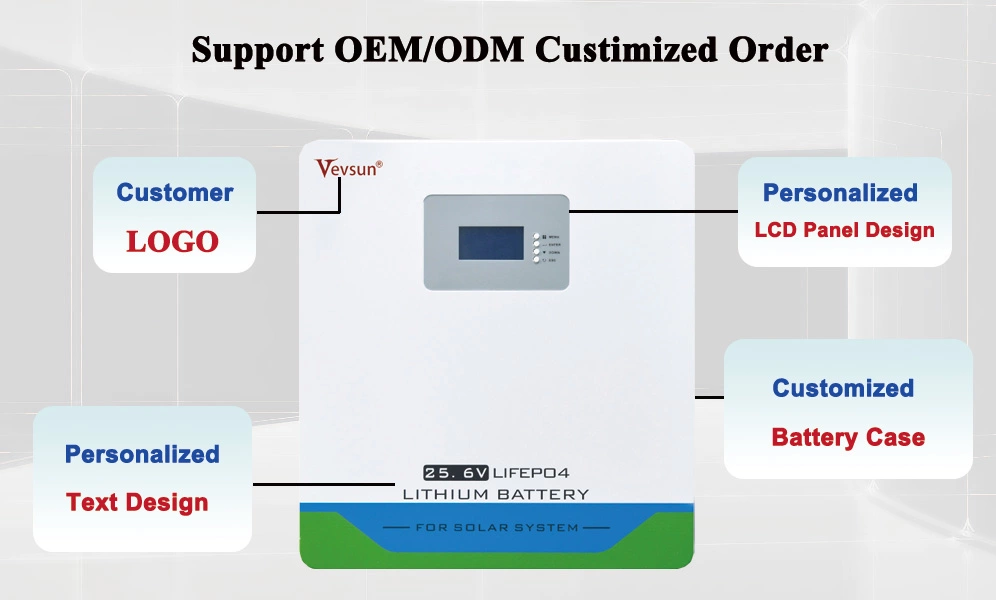

Our battery support OEM&ODM service, support customer LOGO, persoonalized LCD panel design, text design, customized battery box, etc.

We fillful customer inquiry with R&D department support.

Feature

1. High-strength metal shell Lifepo4 battery with large and sufficient capacity.
2. Charging equalization function with SOC and SOH estimation function.
3. LED with status indication function and real-time display SOC function.
4. Low power consumption, and has a variety of sleep and wake-up modes.
5. Adjustable overcurrent protection, short circuit protection, buzzer alarm.
6. High voltage accuracy(<20mV), high current accuracy(<2%@FS), battery temperature detection(<2℃).

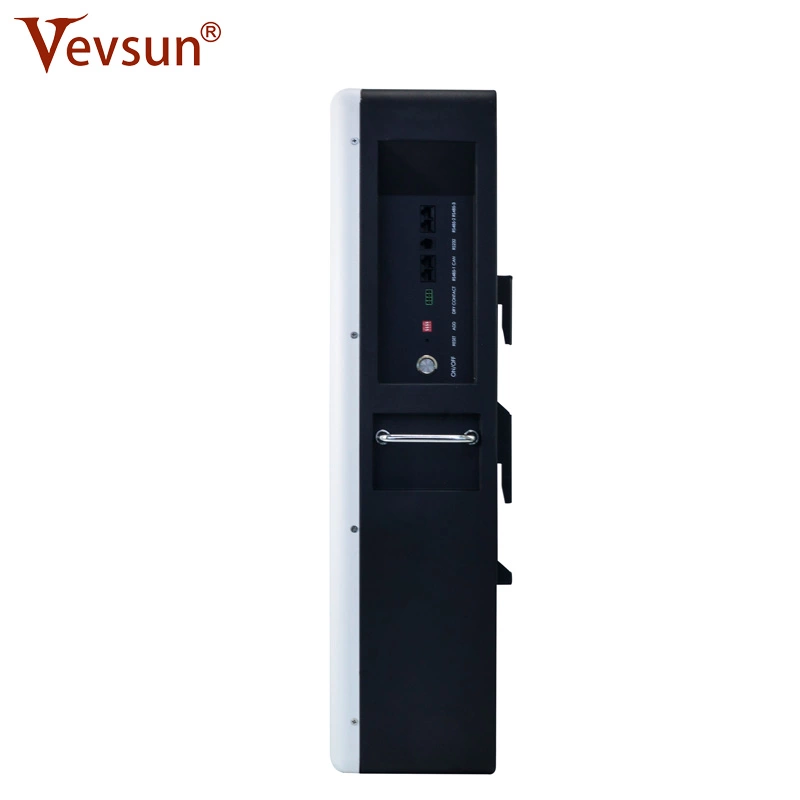

7. With parallel communication, RS485, host computer monitoring and CAN communication.
8. With battery pack capacity and cycle count calculation function.

Specification

Model	LB 100AH 51.2V TA	LB 230AH 51.2V TA	LB300AH 51.2VTA	LB100AH 25.6VTA	LB230AH 25.6VTA	LB300AH 25.6VTA
Cell chemical formula	LiFePO4
Maximum continuous discharge current	100A	100A/200A	200A	100A	200A	200A
Available capacity	5120Wh	11776Wh	15360Wh	2560Wh	5888Wh	7680Wh
Rated Voltage	51.2VDC			25.6VDC
Voltage range	43.2V-58.4VDC			21.6V-29.2VDC
Maximum output power	5120W	5120W/10240W	10240W	2560W	5120W	5120W
Maximum charging voltage	58.4V ± 0.2VDC			29.2V± 0.2VDC
Recommended charging voltage	57.6V ± 0.2VDC			28.8V ± 0.2VDC
Recommended charging current	50A	100A/115A	140A	50A	115A	115A
Number of cycles (standard charge and discharge at room temperature)	≧6000(times)		≧8000(times)	≧6000(times)
Low power mode	Work self depletion ≦50mA, Low power mode < 200uA
Communication	RS 232、RS485 、 CAN
Battery discharge depth(DOD)	≧95%

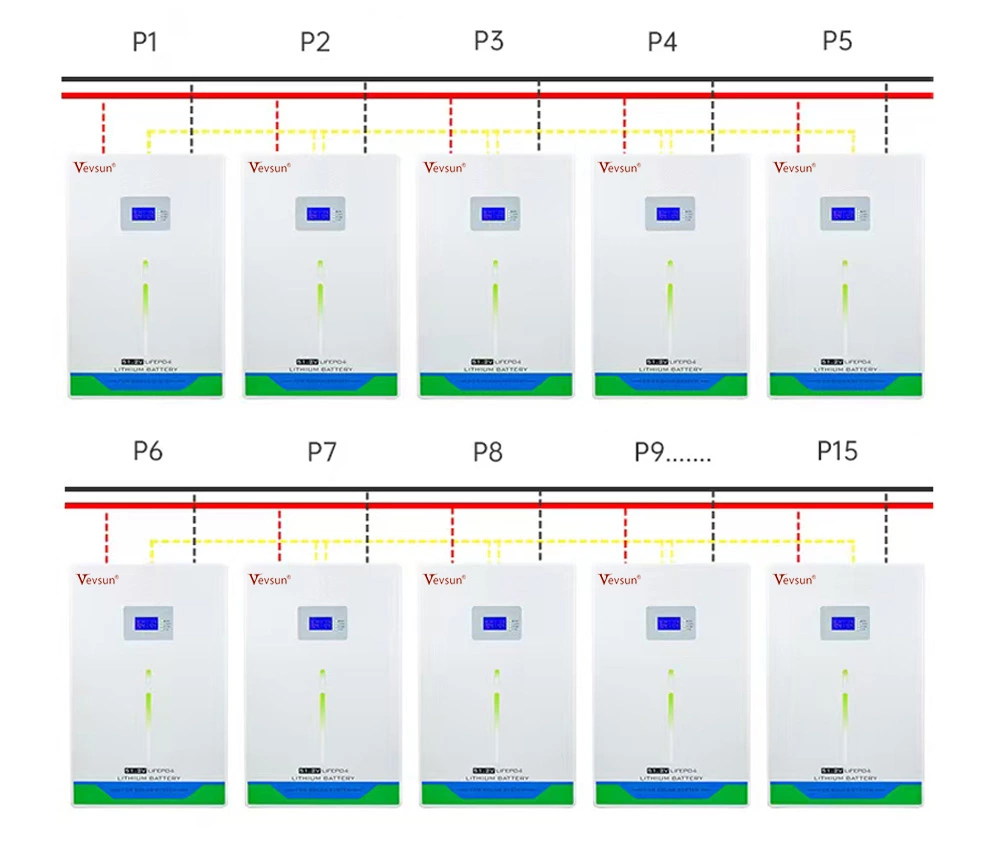

Modules connect	1月15日
Protection	Over Charger, Over Current, Over Voltage, Over Discharge, Short Circuit, High Temperature
Display screen	LED light strip display +LCD display
Operating trmperature range	Discharge: -10℃ - + 50℃; Charge: +0℃ - + 60℃
Storage temperature	>1 month , 0-35℃ ≦ 1 month, -20-45℃
Weight (N.W/KG)	54.5kg	100kg	116kg	30kg	51kg	70kg
LxWxH(mm)	720480170	785510293	755490253	532347170	475420255	/
