Custom 12V100ah Lead Acid Battery Manufacturer

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

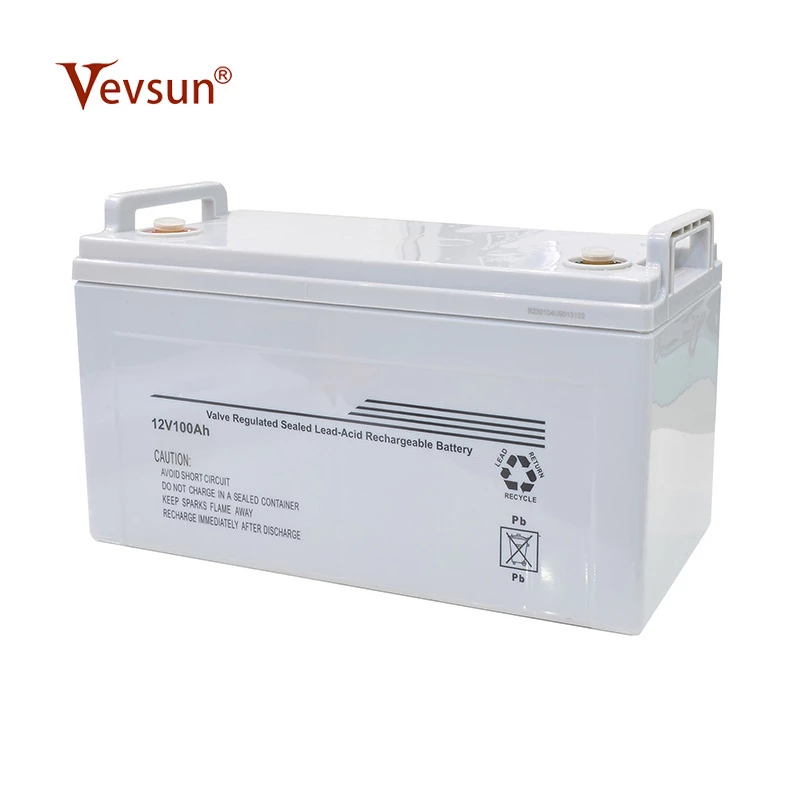

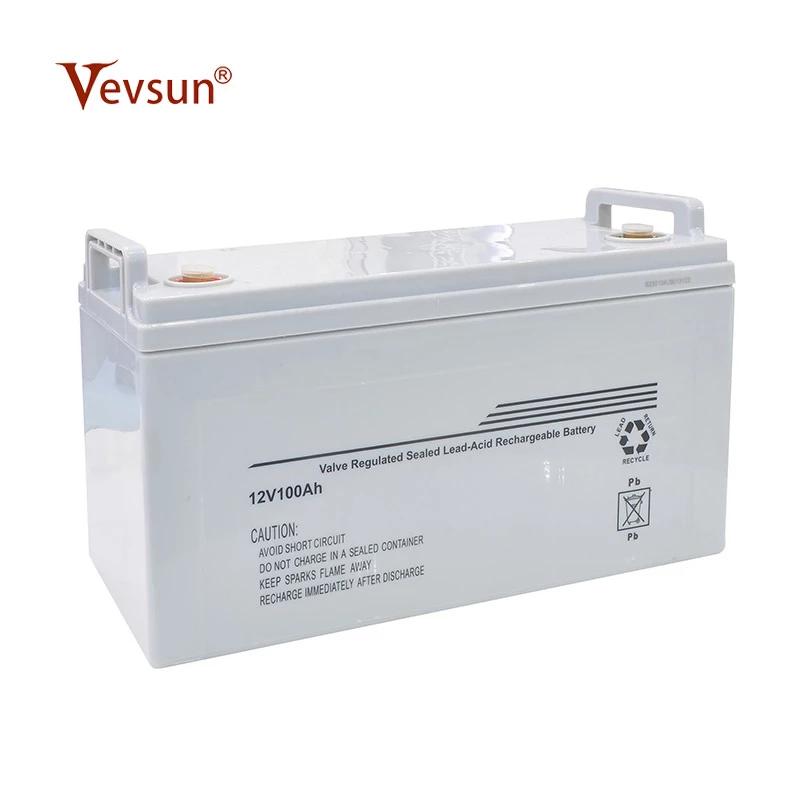

General Series Battery

General Series batteries are designed with AGM (Absorbent Glass Mat) technology, High-performance plates, and electrolyte to give extra power output for common power backup systems.

General Series Batteries are the general purpose batteries with 12 years of floating design life at 25℃, meet with IEC, BS, JIS, and Eurobat standards, UL(MH62092), and CE approved.

Feature

1. Fully sealed: with cover and pole double seal design to block leakage of electrolysis, the safe valve will also prevent outside oxygen and dust from entering the battery.

2. Free maintenance: with the performance of water reproduction and high sealed reaction efficiency, there is no need for any compensation for water during use.

3. Safety: without acid leaking, a reliable gas pressure venting system equipped with an anti-explosion device makes the battery safer during use.

4. Long cycle life: anti-erosion Pb-Ca multi-alloy, ABS plastic material, and high sealed reaction efficiency assure the battery service life.

5 .Temperature adaptability: the battery can be used safely during -25 ℃~50 ℃

Specification

Battery Model	Nominal Voltage Rated capacity (10Hour rate)		12V 100Ah
	Cells Per battery		XD100-12
Dimension	Length 406mm (15.98 inches)	Width 173mm (6.81 inches)	Height 208mm (8.19 inches)	Total Height 233mm (9.17 inches)
Approx Weight	29.40kg(64.82lbs)±3%
Capacity @25℃ (77°F)	20 hour rate(10.5V)	10 hour rate(10.8V)	5 hour rate(10.5V)	1 hour rate(9.6V)
	104Ah	100Ah	92.41Ah	60.00Ah
Max.discharge current	1200A (5 Sec.)
	Full charged at 25℃(77 F):Approx 4.10mΩ
Capacity affected by Temp. (20 HR)	40℃(104°F) 102%	25℃(77°F) 100%	0℃(32°F) 85%	15℃(5°F) 65%
Self Discharge @25℃(77F)	After 3 months storage 98%		After 6 months storage 94%	After 12 months storage 74%
Charge method @25℃(77F)	Cycle Use		Float Use
	14.40-15.00V (Initial charging current less than30A)		13.50-13.80V
