Custom HP Plus+ Solar Inverter (5000W) Manufacturer

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

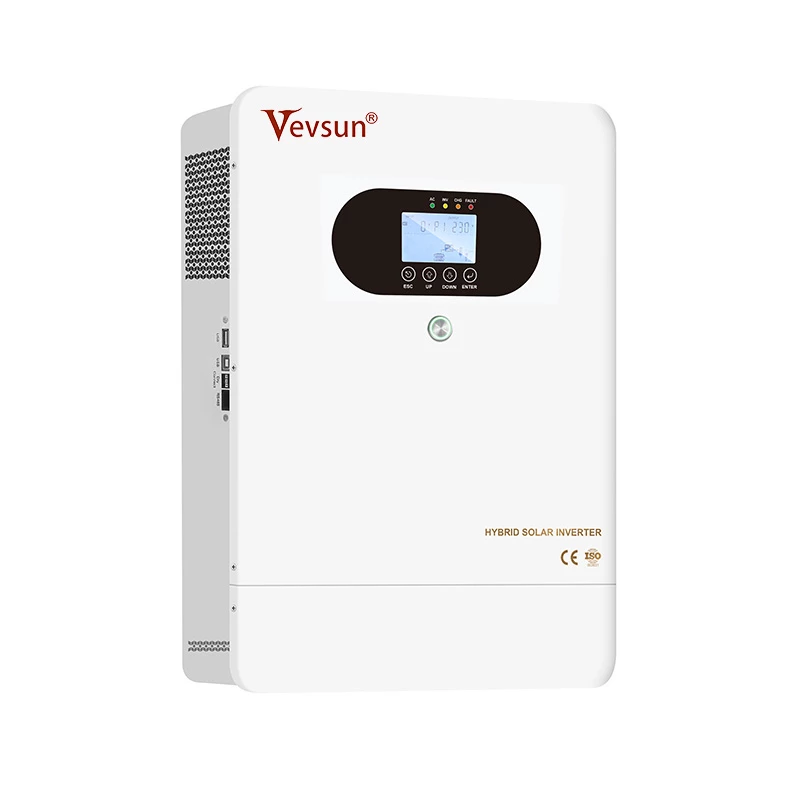

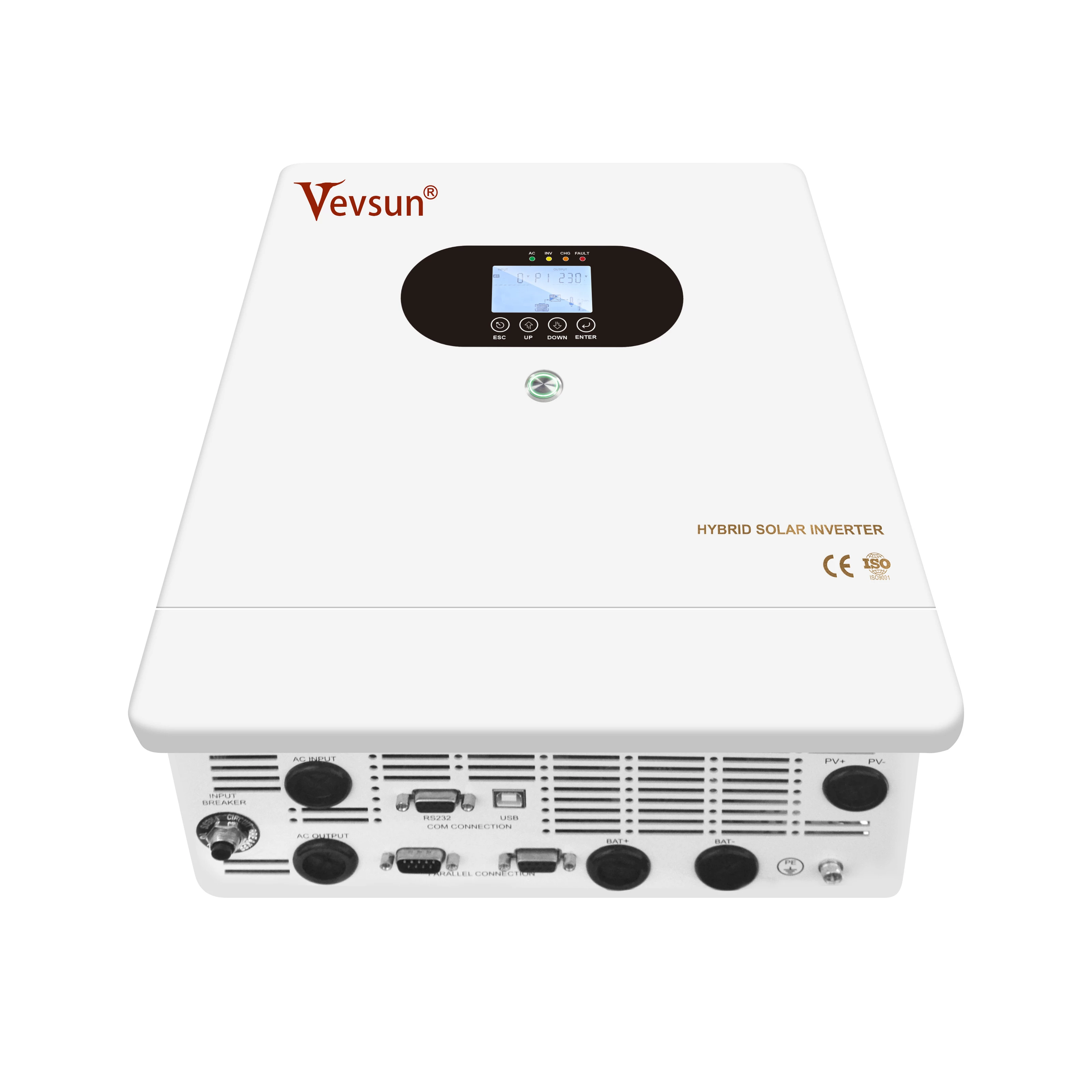

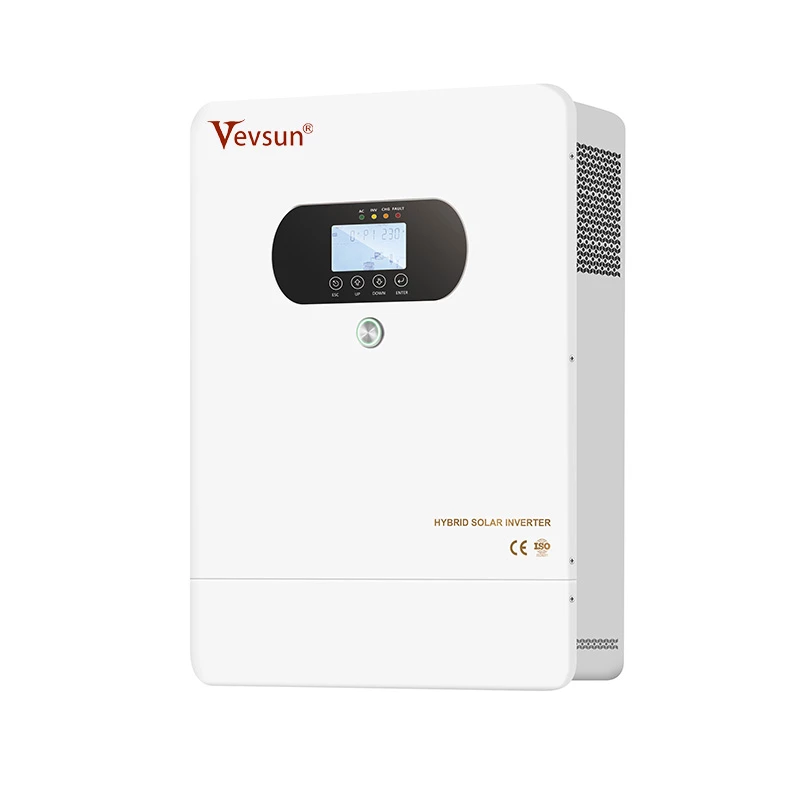

HP plus+ Solar Inverter (5000W)

HP plus+ Solar Inverter supports up to 9 inverters running in parallel. A single 5kW device can be expanded to 45kW, which can meet the diverse power needs from small households to large commercial buildings. Flexible operation mode: built-in MPPT solar controller, supports battery-free operation mode, can power the load without using batteries, reducing maintenance costs.

Feature

◆ Pure sine wave output.

◇ High frequency design, high efficiency with low no-load loss.

◆ Built-in MPPT solar controller, solar input voltage up to 450V Maximum.

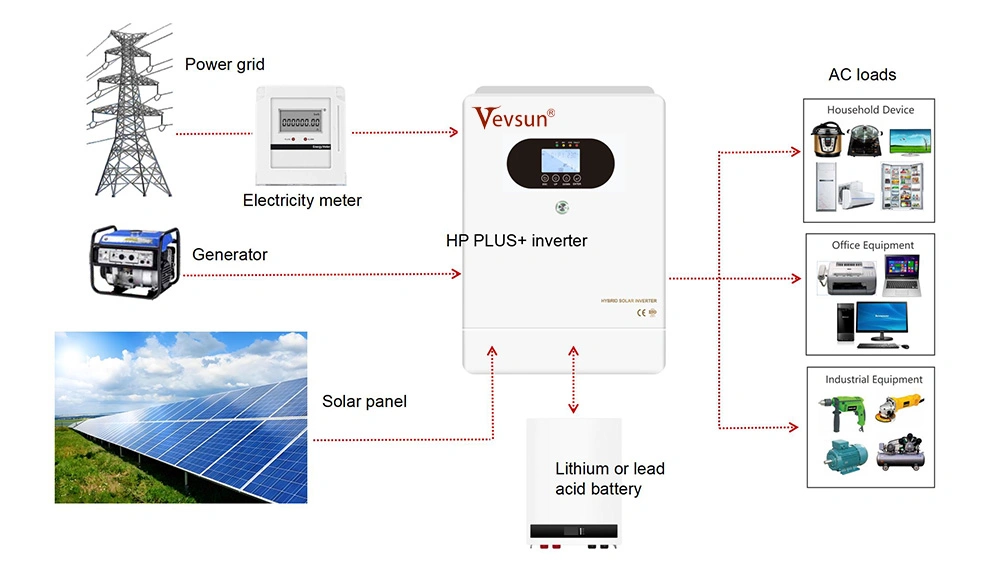

◇ Combining solar system, AC utility, and battery power source to supply continuous power.

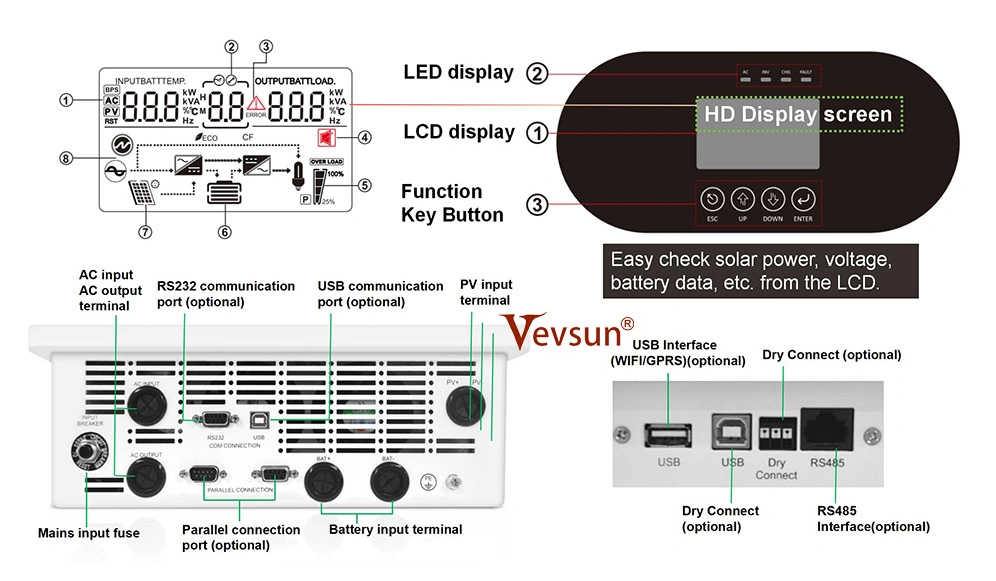

◆ Smart LCD setting (Working modes, Charging Current, Charge Voltage, AC Output voltage/ frequency, etc).

◇ LED+LCD display is easy to operate.

◆ Support provide the power to the load without battery （Without parallel operation）.

◇ Multi-protection function(Overload, over temperature, short circuit protection ,etc).

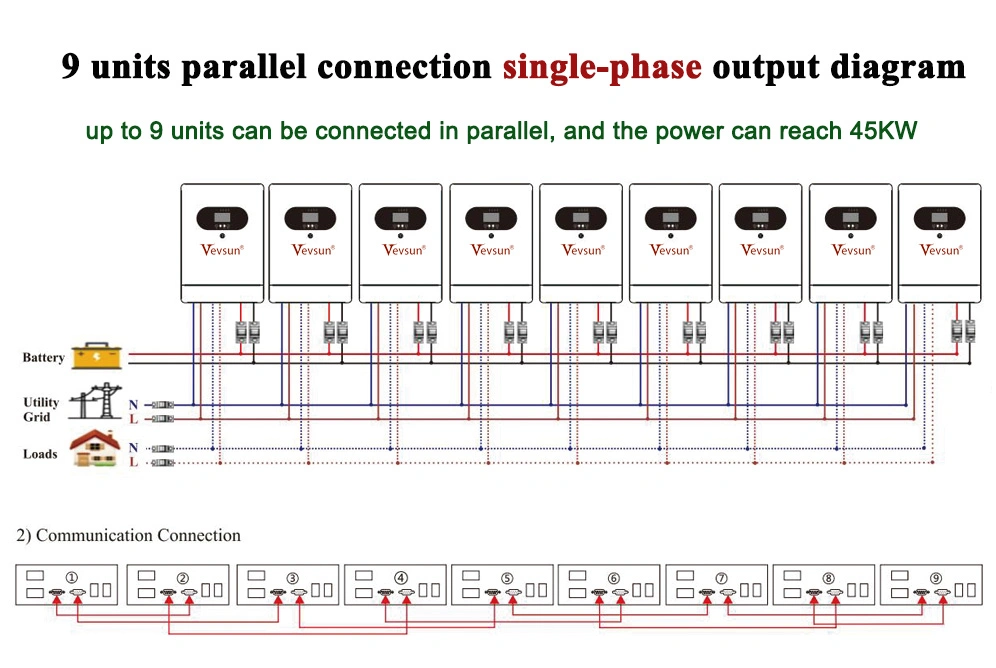

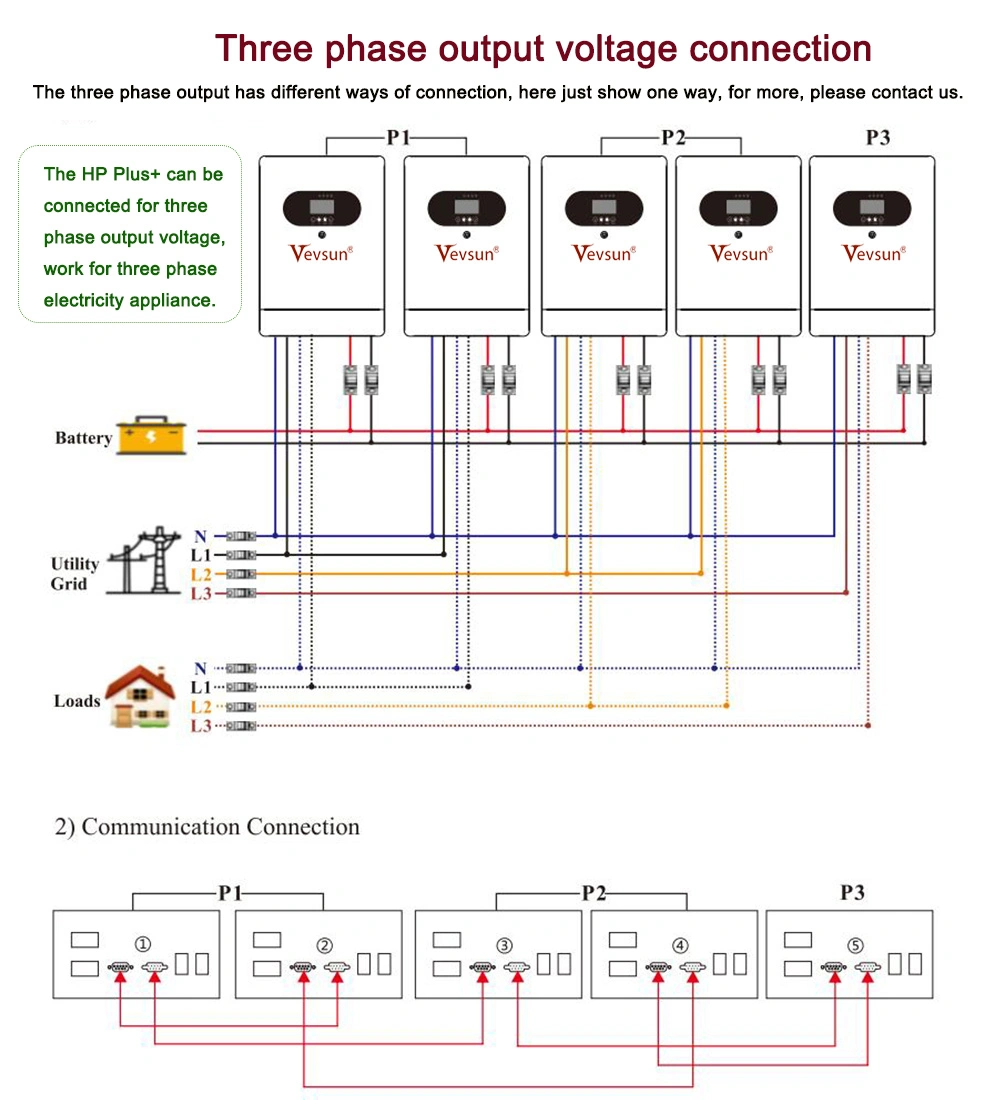

◆ Parallel operation with up to 9 units.

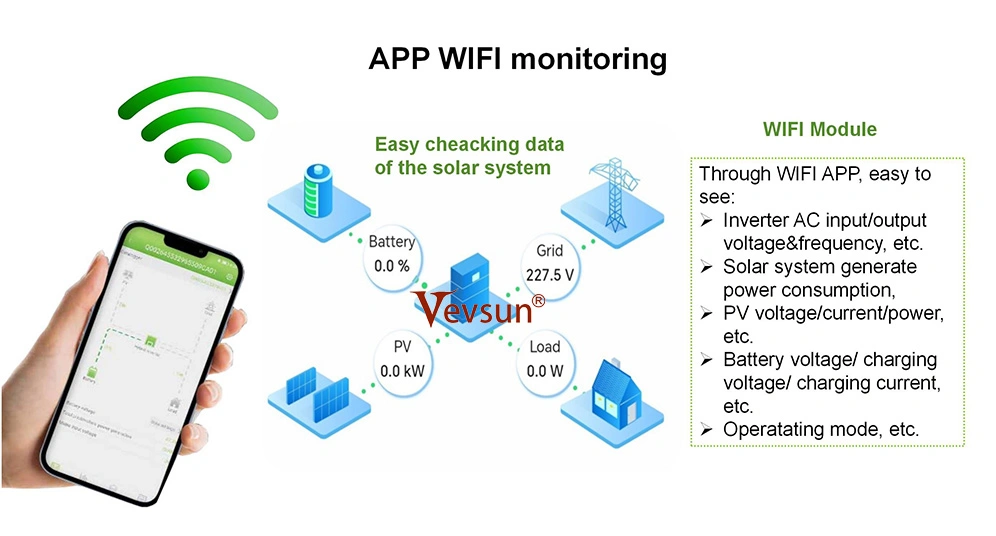

◇ Support USB, RS232 communication, APP（WIFI ,etc optional) .

Specification

Model: HP plus+			50248
Rated Power			5000W
Battery Voltage			48VDC
Product Size（LWHmm）			460x320x110
Package Size（LWHmm）			530x385x185
N.W（Kg）			9.75
G.W（Kg）			10.75
Installation Method			Wall-Mounted
PV	Charging Mode		MPPT
	Rated PV input voltage		360VDC
	MPPT tracking voltage range		120V-430V
	Max PV Input Voltage Voc (At the lowest temperature)		500V
	PV Array Maximum Power		5500W
	MPPT tracking channels (input channels)		1
Input	DC Input Voltage Range		42VDC-60VDC
	Rated AC input voltage		208VAC/220VAC/230VAC/240VAC
	AC Input Voltage Range		90VAC~280VAC(Appliance mode)/170VAC~280VAC(UPS mode)
	AC Input Frequency Range		40Hz~70Hz(default)
Output	Output efficiency(Battery/PV Mode)		94%（Peak value）
	Output Voltage(Battery/PV Mode)		208VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%(INV mode)
	Output Frequency(Battery/PV Mode)		50Hz/60Hz±0.1%
	Output Wave(Battery/PV Mode)		Pure Sine Wave
	Efficiency(AC Mode)		>99%
	Output Voltage(AC Mode)		Follow input
	Output Frequency(AC Mode)		Follow input
	Output waveform distortion Battery/PV Mode)		≤3%(Linear load)
	No load loss(Battery Mode)		≤1% rated power
	No load loss(AC Mode)		≤0.5% rated power(charger does not work in AC mode)
Battery	Battery Type	VRLA Battery	Charge Voltage :56.4V; Float Voltage:54V
		Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
	Max AC Charging Current		60A
	Max PV Charging Current		80A
	Maximum charging current (mains + PV)		80A
	Charging method		Three-stage (constant current, constant voltage, floating charge)
Protection	Battery low voltage alarm		Factory default: 44V
	Battery low voltage protection		Factory default: 42V
	Battery over voltage protection		61VDC
	Overload power protection		Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection		Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection		>90°C(Shut down output)
Working Mode			Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time			≤10ms
Display			LCD+LED
Thermal method			Cooling fan in intelligent control

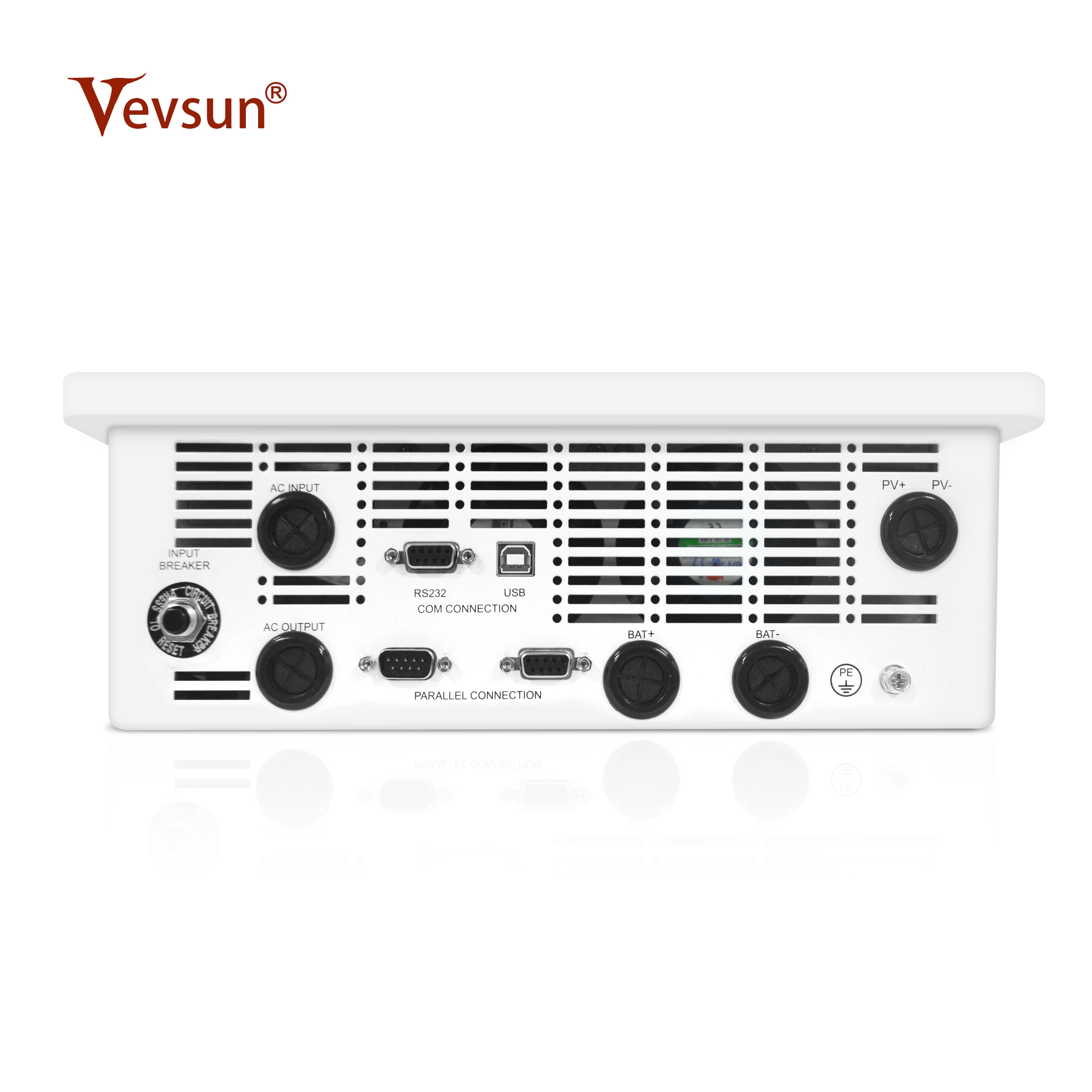

Communication(Optional)			RS232/USB/APP(WIFI monitoring or GPRS monitoring)
Environment	Operating temperature		-10℃~40℃
	Storage temperature		-15℃~60℃
	Noise		≤55dB
	Elevation		2000m(More than derating)
	Humidity		0%~95% (No condensation)
