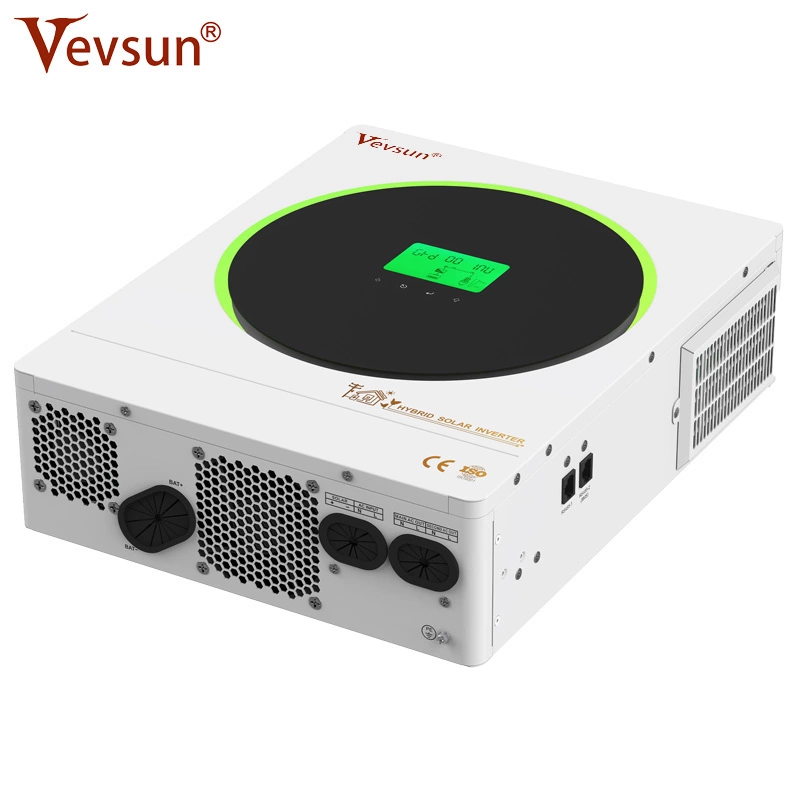

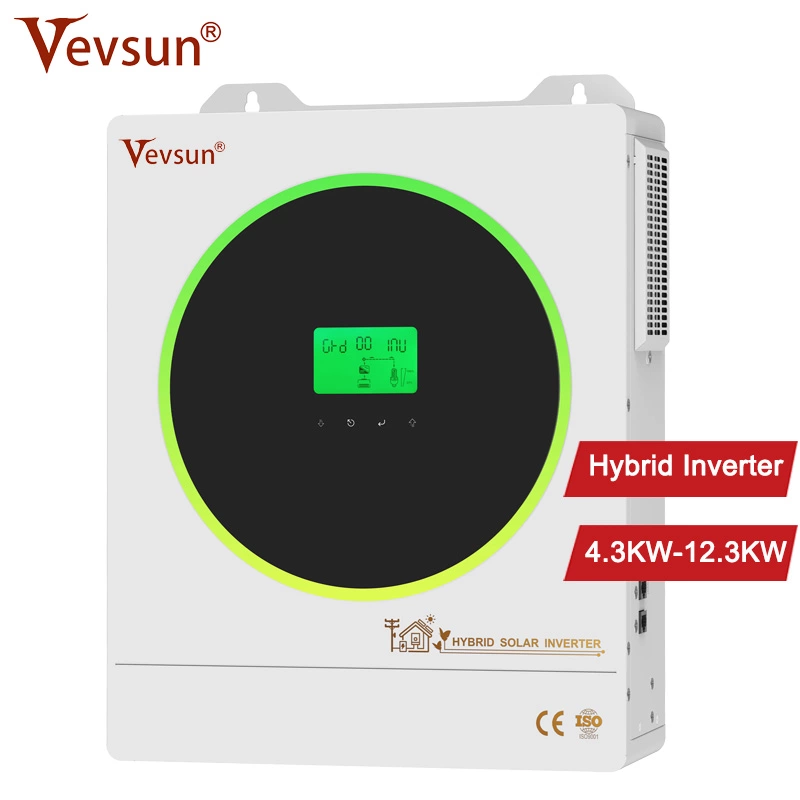

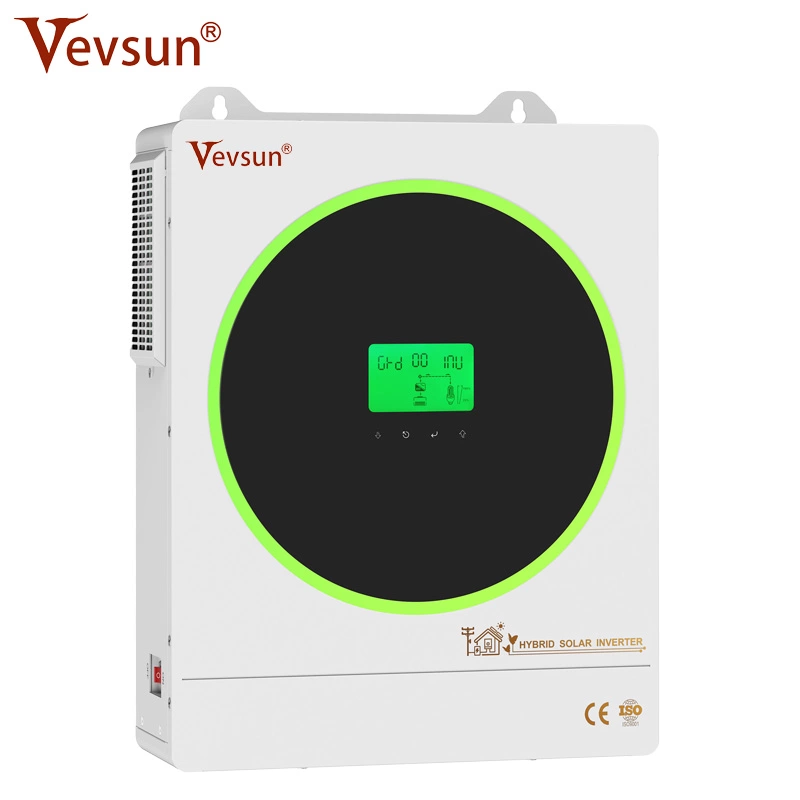

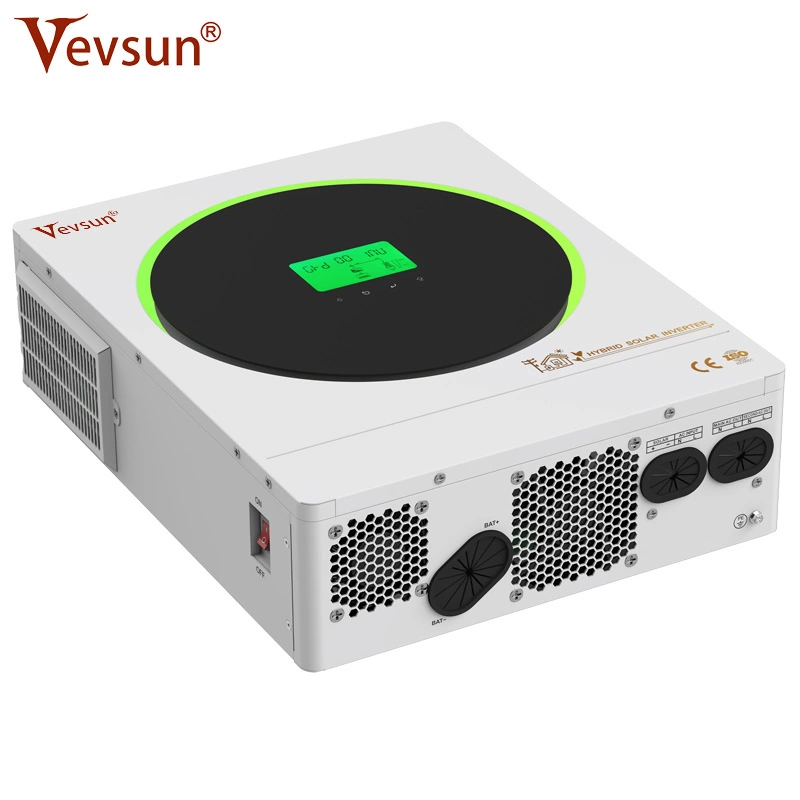

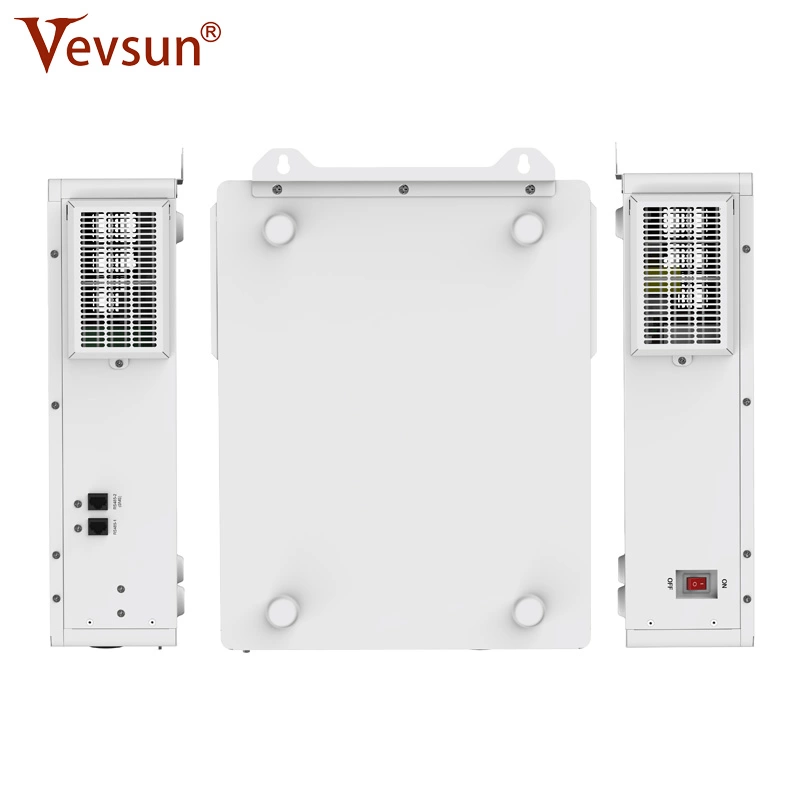

HFP-C Solar Hybrid Inverter 4.3KW-12.3KW
HFP-C series solar hybrid inverter is high frequency on-off grid inverter with power of 4.3KW/5KW/6.3KW/8.3KW/10.3KW/12.3KW, with built in width range DC input big current MPPT controller, max. PV input voltage 500VDC. Working mode with on grid, off grid, hybrid and batteryless .
Feature
1.Dual AC output, intelligent load management design;
2.Equipped with intelligent RGB large disc and LED display design,enhanced visual appeal;
3.Bidirectional energy storage design, which can achieve bidirectional flow control of electrical energy,and both solar and mains electricity can charge the battery;
4.Adopting high-frequency design, high power density, small size, and high overall efficiency;
5.Ultra wide MPPT range, with a minimum of 40Vdc(24V models) / 80Vdc(48V models) and a maximum of 500Vdc;
6.Capable of setting working modes (on grid mode, off grid mode, hybrid mode);
7.Equipped with charging priority setting function;
8.Equipped with lithium battery BMS communication function;
9.Equipped with grid connected current setting function;
10.Equipped with output priority setting function;
11.Support battery-less operation mode；
12.Support RS4585 communication function, real-time monitoring of inverter status, remote intelligent monitoring;
Specification
| Model ： HFP-C |
43224 |
50248 |
63248 |
83248 |
103248 |
123248 |
| Rated Power |
4300W |
5000W |
6300W |
8300W |
10.3KW |
12.3KW |
| Maximum Main Output Power |
4300W |
5000W |
6300W |
8300W |
10.3KW |
12.3KW |
| Maximum Second Output Power |
1290W |
1500W |
1890W |
2490W |
3.09KW |
3.69KW |
| PV |
Max PV Input Power |
5000W |
6000W |
7000W |
4500W*2 |
6000W*2 |
6000W*2 |
| MPPT Tracking Voltage Range |
40VDC-450VDC |
80VDC-450VDC |
| Rated Voltage |
240VDC |
280VDC |
Max PV Input Voltage voc
(at the lowest temperature) |
500VDC |
| Max PV Input Current |
18A |
27A |
18A*2 |
22A*2 |
27A*2 |
MPPT Tracking Channels
(Input Routed ) |
1 Routed |
2 Routed |
Battery&
Charging |
Battery Type |
Lead-acid Battery/Lithium Battery |
| Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board) |
| Rated Battery Voltage |
24VDC |
48VDC |
| Battery voltage Range |
21~30VDC(default) |
42~60VDC(default) |
| Max PV Charging Current |
150A |
100A |
120A |
150A |
180A |
200A |
| Max AC Charging Current |
100A |
60A |
80A |
100A |
120A |
140A |
| Max Charging Current |
150A |
100A |
120A |
150A |
180A |
200A |
| Off-Grid Operation |
AC
Input |
Rated Input voltage |
230V (220V or 240V Can be set) |
| Mains input voltage range |
165VAC-280VAC/ 120VAC~280VAC(Can be set) |
| Rated Input Frequency |
50Hz/60Hz |
| Input Frequency Range |
45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) |
AC
Output |
Rated Output Voltage |
230V (220V or 240V Can be set) |
| Output Voltage Accuracy |
±2% |
| Rated Input Frequency |
50Hz/60Hz |
| Output Frequency Accuracy |
±1% |
| Output Wave |
Pure Sine Wave |
| Hybrid Operation (Complementary Mode) |
AC
Input |
Rated Input voltage |
230V (220V or 240V Can be set) |
| Mains input voltage range |
187VAC~264VAC |
| Rated Input Frequency |
50Hz/60Hz |
| Input Frequency Range |
47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz) |
AC
Output |
Rated Voltage Rated |
230Vac (220Vac or 240Vac Can be set) |
| Output Current |
18.7A |
21.7A |
27.4A |
36.1A |
44.9A |
53.5A |
| On-Grid Operation |
On-Grid
Output
(AC) |
Rated Output Voltage |
230Vac (220Vac or 240Vac Can be set) |
| Grid Voltage Range |
187VAC~264VAC |
| Rated Output Frequency |
50Hz/60Hz |
| Frequency Range |
47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) |
| Rated Output Current |
18.7A |
21.7A |
27.4A |
36.1A |
44.9A |
53.5A |
| Power Factor |
＞0.98(Rated Power) |
| Regular Parameters |
Maximum Conversion Efficiency
(Battery Discharge) |
94%(peak value) |
| No load loss (Battery Discharge) |
1% Rated Power (Typical value) |
| MPPT Tracking Efficiency |
≥99.9 |
| Transfer Time |
10ms(Typical value) |
| Display |
LCD+LED |
| Cooling Method |
Cooling fan in intelligent control |
| Communication |
RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) |
| Protection Degree |
IP20 |
| Installation |
Wall-Mounted |
| Protection Degree |
Battery low voltage alarm |
22VDC（default value） |
44VDC(default value） |
| Battery low voltage protection |
21VDC（default value） |
42VDC（default value） |
| Anti-islanding protection |
≤2S |
| overload power protection |
Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) |
Inverter output short circuit
protection |
Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) |
| Temperature protection |
＞90 ℃(Turn off inverter and charging) |
| Environment |
Operating temperature |
-10℃~50℃ |
| Storage temperature |
-15℃~60℃ |
| Noise |
≤55dB |
| Elevation |
2000m（More than derating） |
| Humidity |
0%~95% ,No condensation |
| Dimension and Weight |
| Product Size(L*W*Hmm) |
375*297*102 |
390*320*112 |
515*365*117 |
535*462*117 |
630*540*130 |
| Package Size(L*W*Hmm) |
450*352*167 |
465*375*187 |
615*460*212 |
630*557*212 |
730*635*225 |
| N.W.(kg) |
6.6 |
7 |
8 |
13 |
14.5 |
22 |
| G.W.(kg) |
7.6 |
8 |
9.3 |
15 |
17 |
25 |
