Custom HDSX Three Phase Inverter Charger (10KVA-30KVA) Manufacturer

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

HDSX Three Phase Inverter Charger (10KVA-30KVA) Performance Advantages

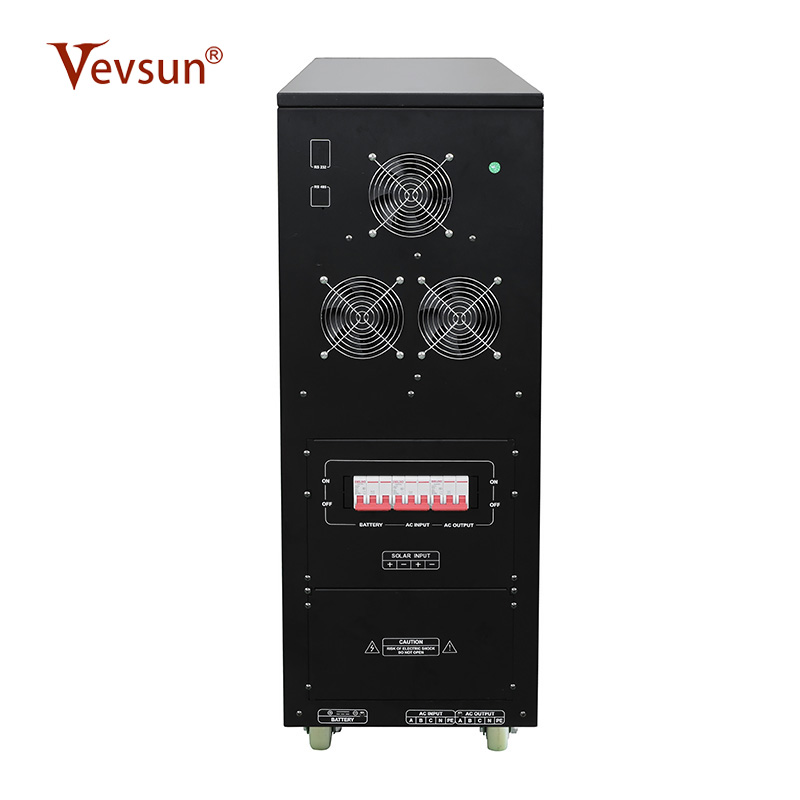

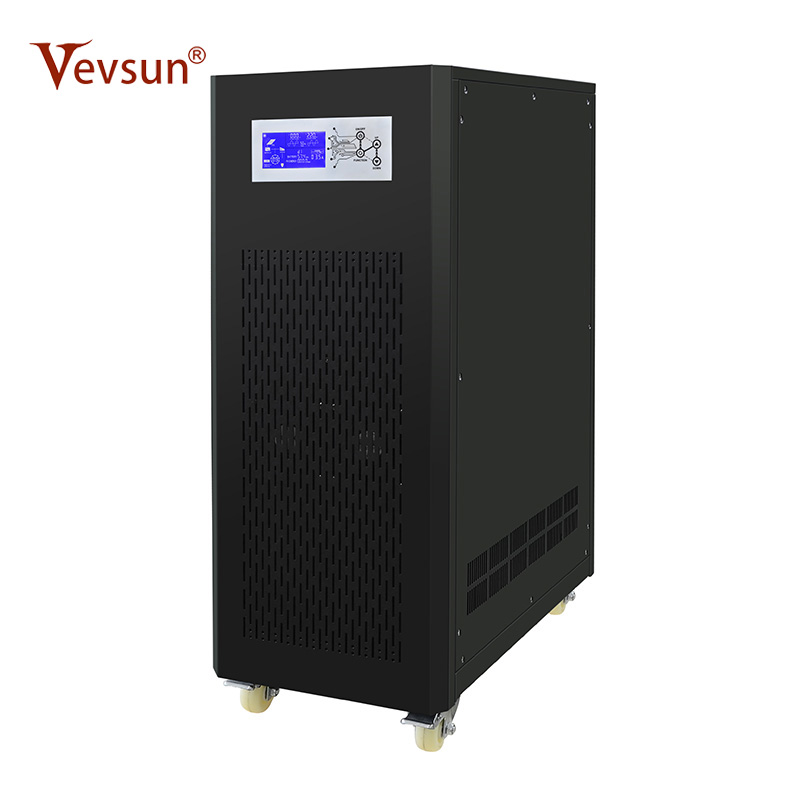

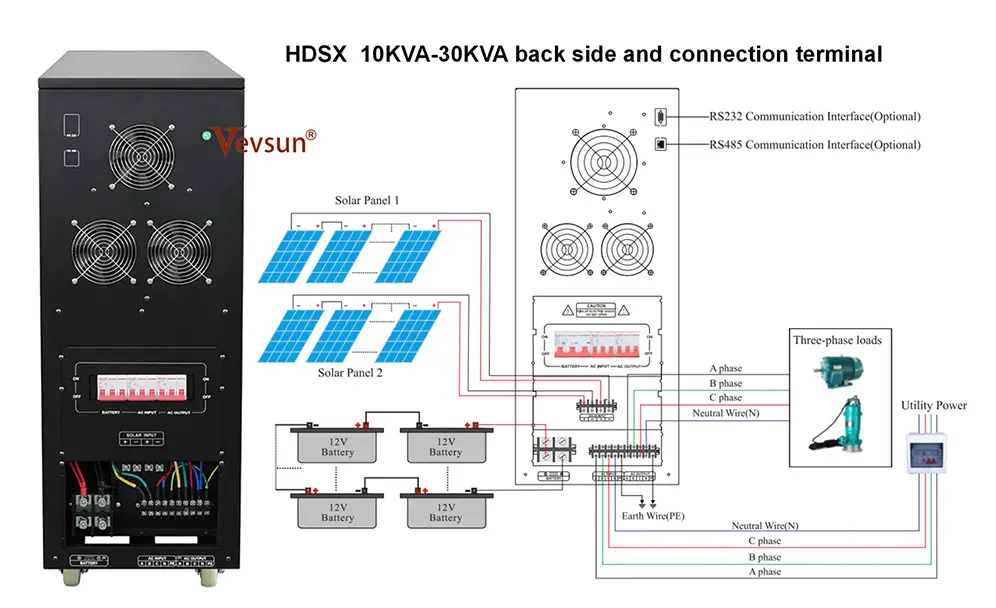

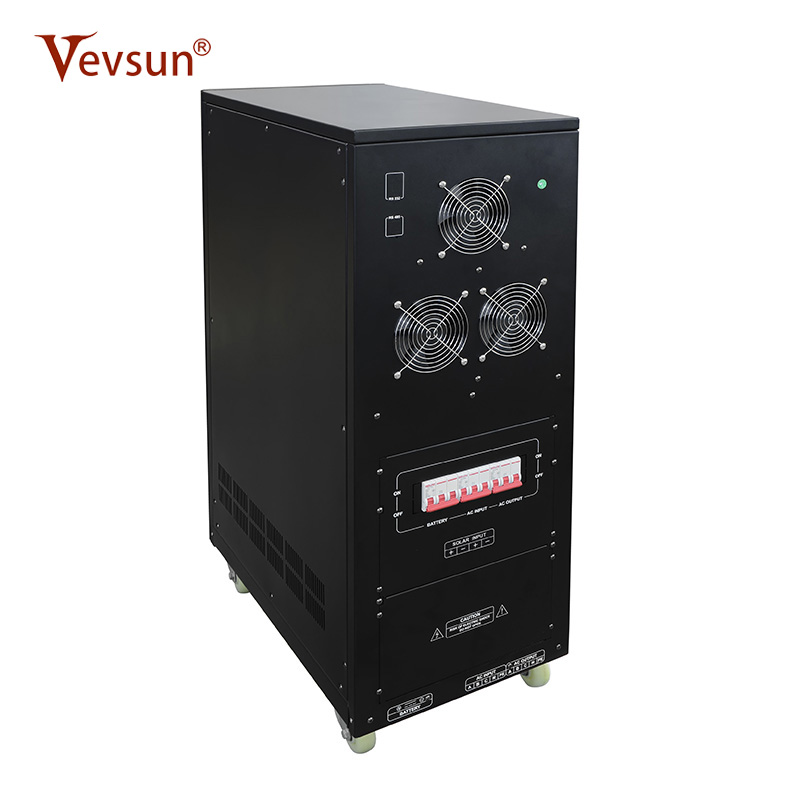

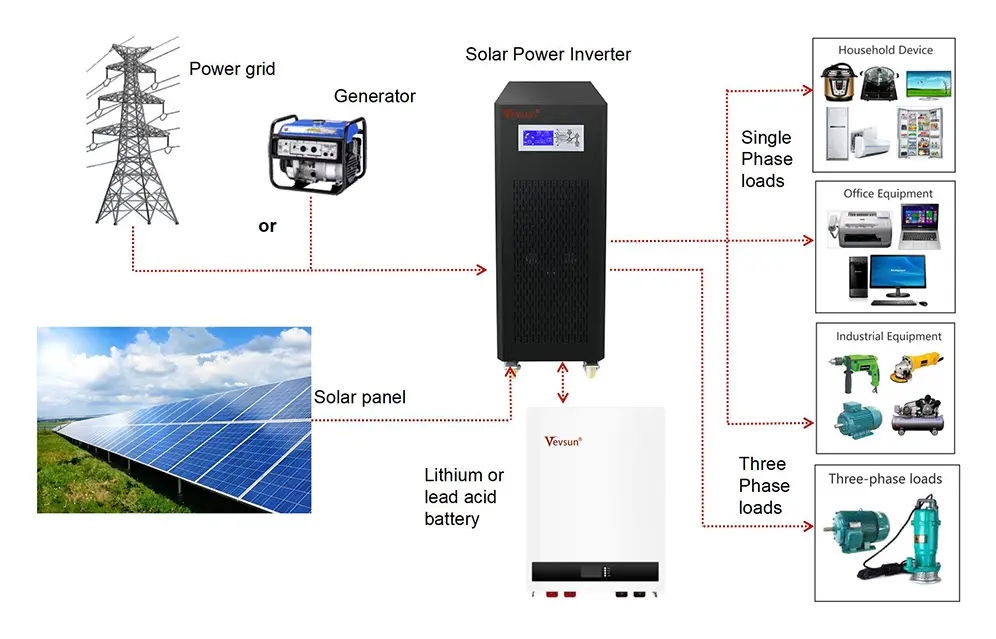

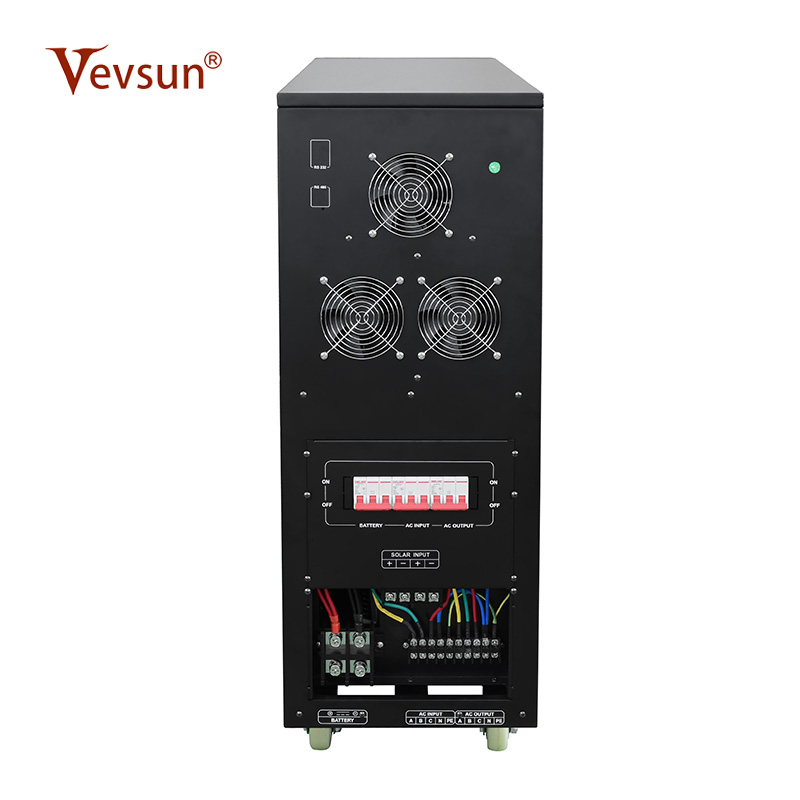

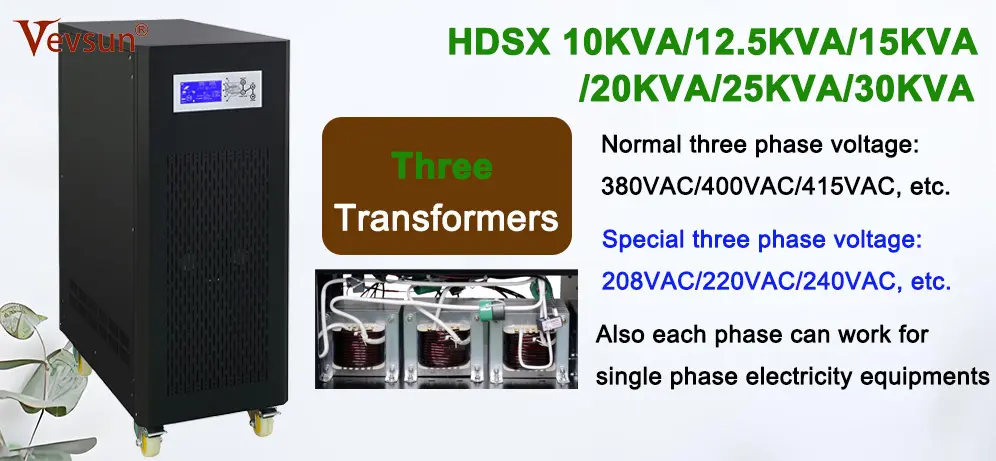

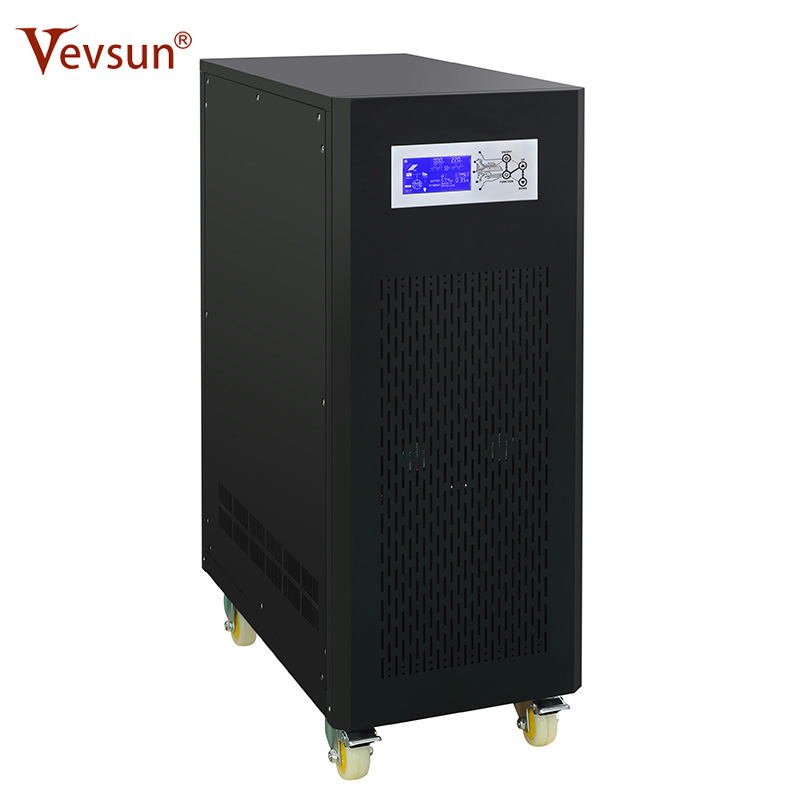

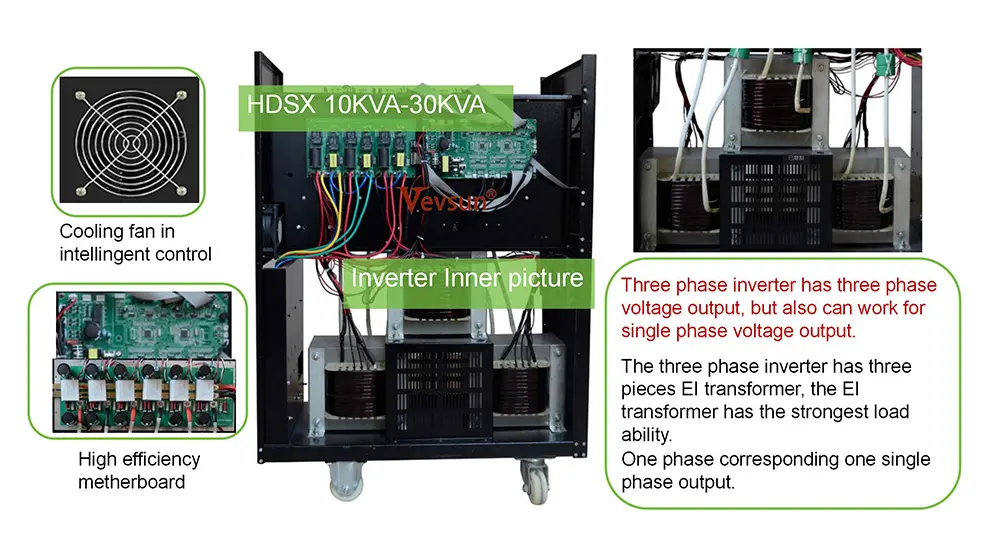

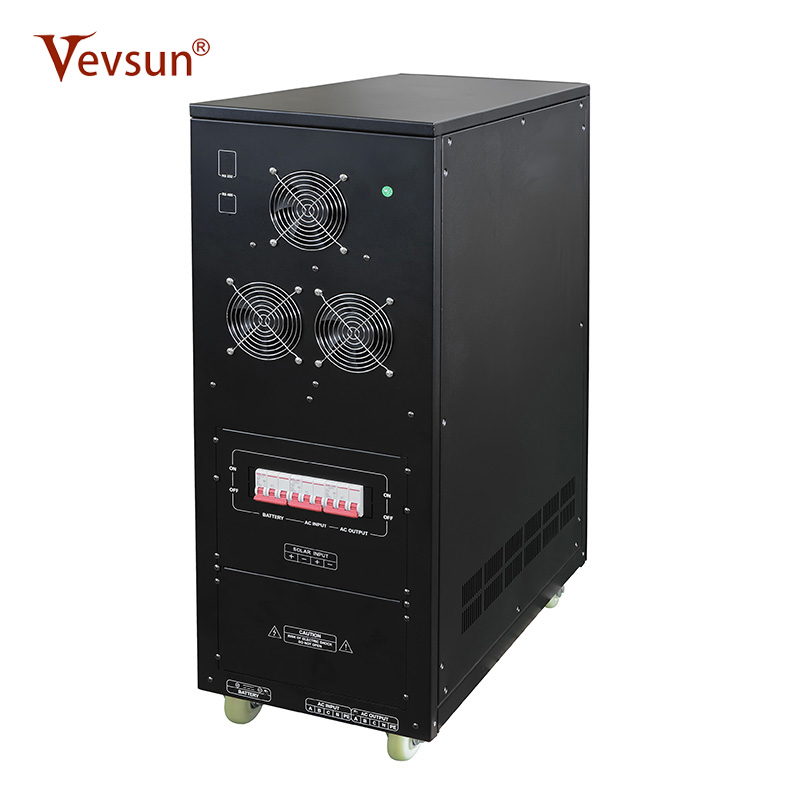

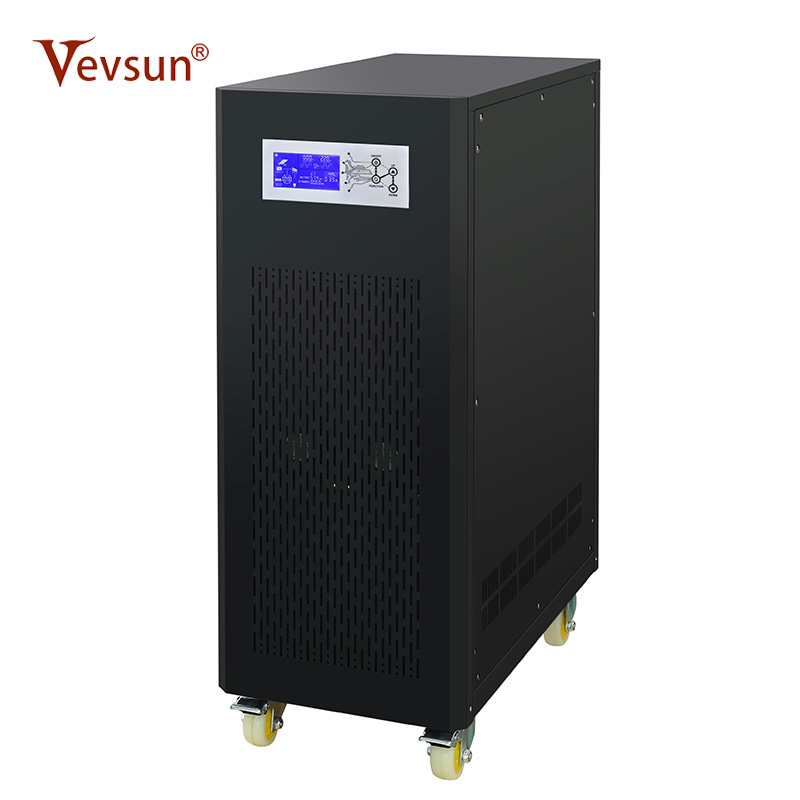

Three phase solar off grid inverter, HDSX series 4KVA to 200KVA. Built in 3pcs traditional strip transformer with strong load ability, it widely use in industrial equipment, bank, school, farm, and some use three phase voltage home use, etc. This inverter can use with battery only work as UPS for back up power, also can do with built in MPPT controller use for solar power system. New technology with APP WIFI monitoring, easy check solar panel, battery, inverter data, etc. from the APP in the mobile phone. Can do normal three phase voltage: 380VAC/400VAC/415VAC ; also can do special three phase voltage: 208VAC/220VAC/240VAC, suit for different voltages in the word.

Feature

◆ Pure sine wave output.

◇ Low DC voltage, saving system cost.

◆ Built-in PWM or MPPT charge controller.

◇ AC charge current 0-45A adjustable.

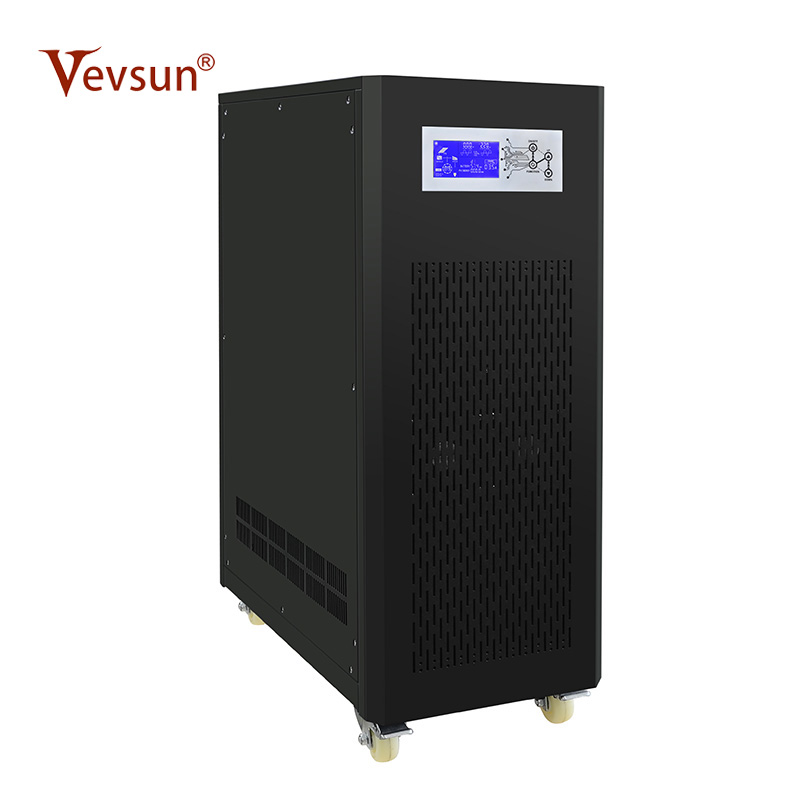

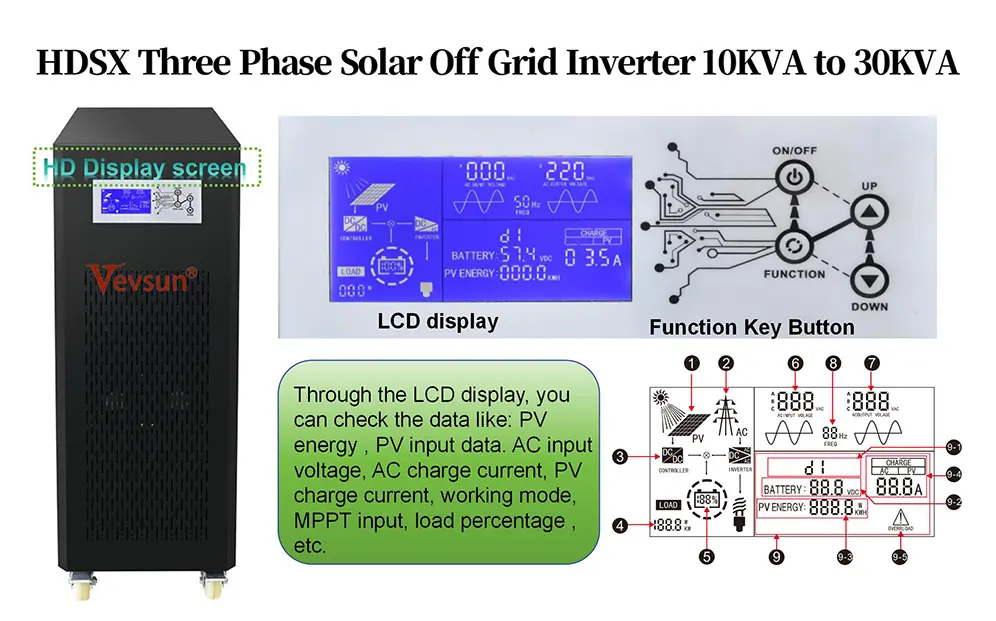

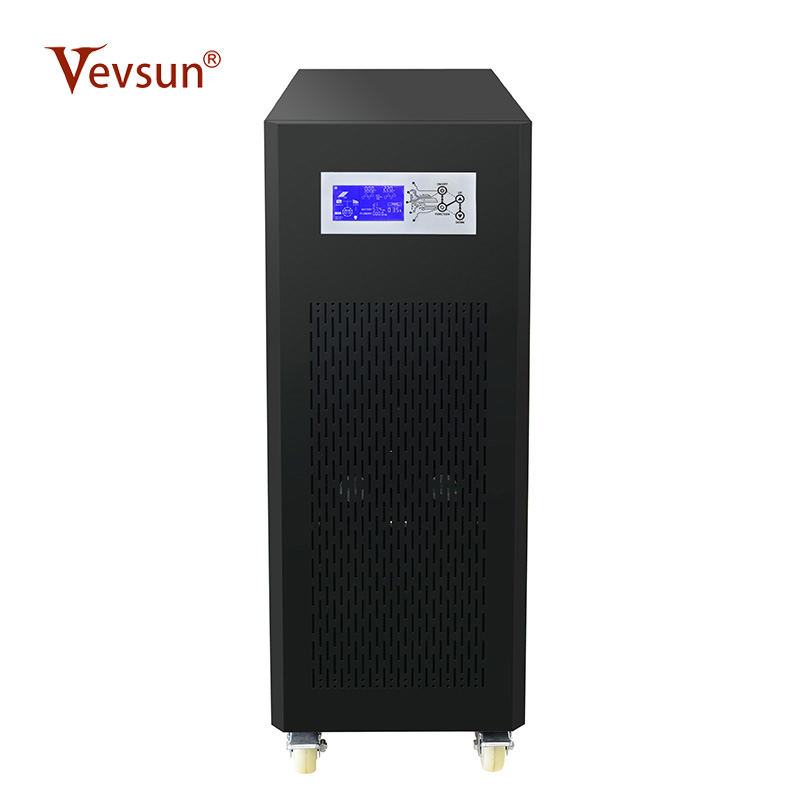

◆ Wide LCD screen, clearly and precisely shows icon data.

◇ 100% imbalance loading design, 3 times peak power.

◆ Setting different working modes based on variable usage requirements.

◆ Various communication ports and Remote monitoring RS485/APP(WIFI/GPRS) (Optional)

Specification

Model: HDSX		10KVA	12.5KVA	15KVA	20KVA	25KVA	30KVA
Rated Power		8KW	10KW	12KW	16KW	20KW	24KW
Peak Power（20ms)		24KVA	30KVA	36KVA	48KVA	60KVA	72KVA
Start Motor		5HP	6HP	7HP	10HP	10HP	15HP
Battery Voltage		48/96/192VDC			96/192VDC
Size(LWHmm)		7253651010
Packing Size(LWHmm)		7854251135
N.W.(kg)		112	122	134	160	176	189
G.W.(kg)（Wooden Packing）		136	146	158	184	200	213
Installation Method		Tower
Parameter
Input	DC Input Voltage Range	10.5VDC-15VDC（Single battery voltage）
	AC Input Voltage Range	380Vac/400Vac±10%(customized 190Vac/200Vac)
	AC Input Frequency Range	45Hz-55Hz（50Hz）/ 55Hz-65Hz（60Hz）
	Max AC charging current	0-45A(Depending on the model）
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
	Phase	3/N/PE
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	380Vac/400Vac±10%(customized 190Vac/200Vac)
	Output Frequency(Battery Mode)	50/60Hz ±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Output waveform distortion	Linear load≤3%
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	Conforming to AC input
	Output Frequency(AC Mode)	Conforming to AC input
	No load loss(Battery Mode)	≤2.5% rated power
	No load loss(AC Mode)	≤2%rated power（ charger does not work in AC mode）
	No load loss(Energy saving Mode)	≤10W
	Phase	3/N/PE
Battery Type	VRLA Battery	Charge Voltage :13.8V; Float Voltage:13.7V（Single battery voltage）
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	11V（Single battery voltage）
	Battery undervoltage protection	10.5V（Single battery voltage）
	Battery overvoltage alarm	15V（Single battery voltage）
	Battery overvoltage protection	17V（Single battery voltage）
	Battery overvoltage recovery voltage	14.5V（Single battery voltage）
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	MPPT or PWM
	Charging current	PWM: 10A-60A（48V System); 50A/100A（96V System); 50A/100A（192V System) MPPT: 10A-100A（48V System); 50A/100A（96V System)
	PV Input Voltage Range	PWM: 60V-88V(48V System); 120V-176V(96V System); 240V-352V(192V System) MPPT: 60V-120V(48V System); 120V-240V(96V System); 240V-360V(192V System)
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 100V(48V System); 200V(96V System); 400V(192V System) MPPT: 150V(48 System); 300V(96V System); 450V(192V System)
	PV Array Maximum Power	48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A); 96V System: (PWM: 5.6KW(50A)/11.2KW(100A)) / (MPPT: 5.6KW(50A)/5.6KW*2(100A)); 192V System: (PWM: 11.2KW(50A)/22.4KW(100A))
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD
Thermal method		Forced air cooling
Communication(Optional)		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Noise	2000m（More than derating）
	Elevation	≤65dB
	Humidity	0%~95% ,No condensation
