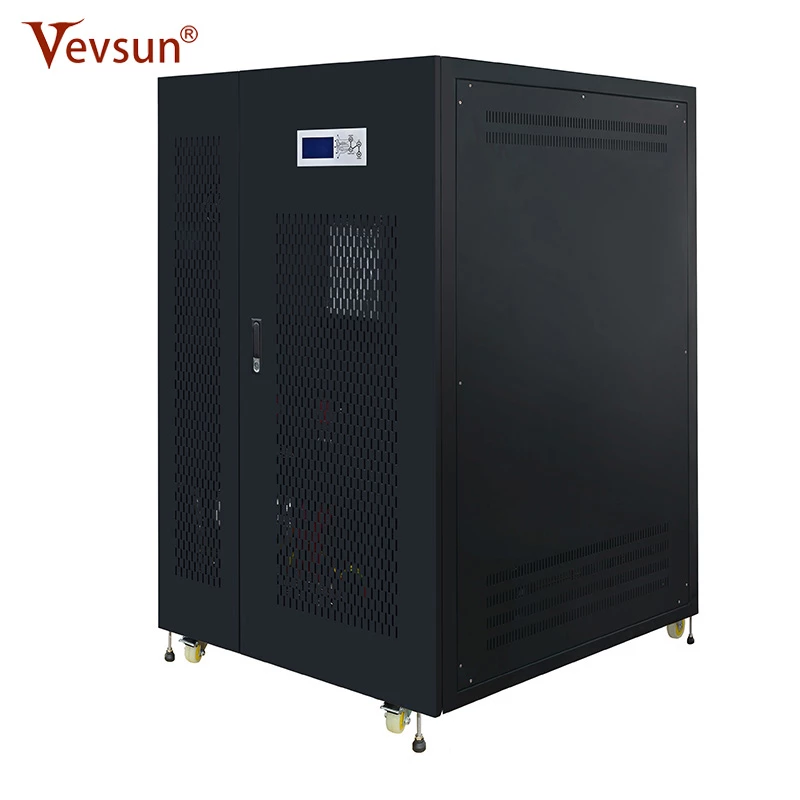

HDSX Three Phase Inverter Charger Performance Advantages

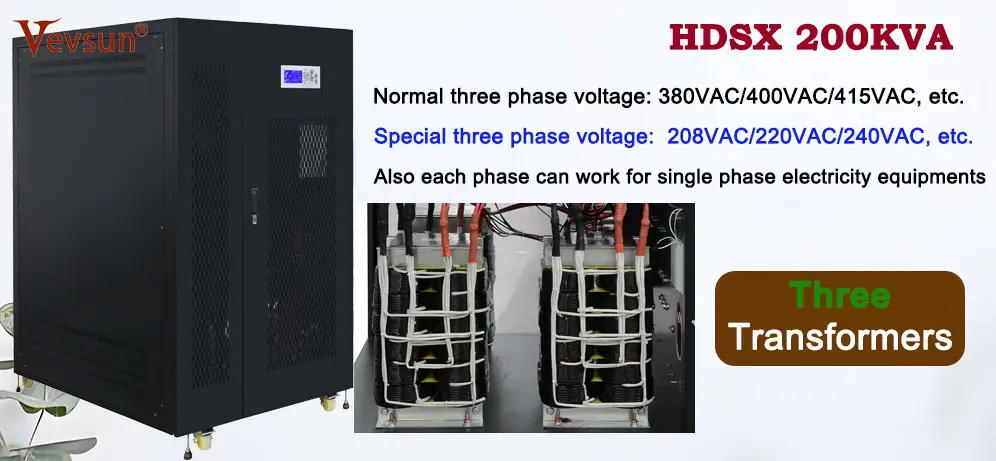

Three phase solar off grid inverter, HDSX series 4KVA to 200KVA. Built in 3pcs traditional strip transformer with strong load ability, it widely use in industrial equipment, bank, school, farm, and some use three phase voltage home use, etc. This inverter can use with battery only work as UPS for back up power, also can do with built in MPPT controller use for solar power system. New technology with APP WIFI monitoring, easy check solar panel, battery, inverter data, etc. from the APP in the mobile phone. Can do normal three phase voltage: 380VAC/400VAC/415VAC ; also can do special three phase voltage: 208VAC/220VAC/240VAC, suit for different voltages in the word.

Feature

◆ Pure sine wave output.

◇ Low DC voltage, saving system cost.

◆ Built-in PWM or MPPT charge controller.

◇ AC charge current 0-45A adjustable.

◆ Wide LCD screen, clearly and precisely shows icon data.

◇ 100% imbalance loading design, 3 times peak power.

◆ Setting different working modes based on variable usage requirements.

◆ Various communication ports and Remote monitoring RS485/APP(WIFI/GPRS) (Optional)

Specification

Model: HDSX		190KVA	200KVA
Rated Power		150KW	160KW
Peak Power（20ms)		450KVA	480KVA
Start Motor		80HP	80HP
Battery Voltage		384VDC
Size(LWHmm)		11239001605
Packing Size(LWHmm)		11859601750
N.W.(kg)		705	755
G.W.(kg)（Wooden Packing）		755	805
Installation Method		Tower
Parameter
Input	DC Input Voltage Range	10.5VDC-15VDC（Single battery voltage）
	AC Input Voltage Range	380Vac/400Vac±10%(customized 190Vac/200Vac)
	AC Input Frequency Range	45Hz-55Hz（50Hz）/ 55Hz-65Hz（60Hz）
	Max AC charging current	0-45A(Depending on the model）
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
	Phase	3/N/PE
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	380Vac/400Vac±10%(customized 190Vac/200Vac)
	Output Frequency(Battery Mode)	50/60Hz ±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Output waveform distortion	Linear load≤3%
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	Conforming to AC input
	Output Frequency(AC Mode)	Conforming to AC input
	No load loss(Battery Mode)	≤1% rated power
	No load loss(AC Mode)	≤2%rated power（ charger does not work in AC mode）
	No load loss(Energy saving Mode)	≤10W
	Phase	3/N/PE
Battery Type	VRLA Battery	Charge Voltage :13.8V; Float Voltage:13.7V（Single battery voltage）
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	11V（Single battery voltage）
	Battery undervoltage protection	10.5V（Single battery voltage）
	Battery overvoltage alarm	15V（Single battery voltage）
	Battery overvoltage protection	17V（Single battery voltage）
	Battery overvoltage recovery voltage	14.5V（Single battery voltage）
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	MPPT or PWM
	Charging current	PWM: 100A-200A / MPPT: 50A/100A
	PV Input Voltage Range	PWM: 480V-704V / MPPT: 480V-640V
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 750V / MPPT: 800V
	PV Array Maximum Power	PWM: 44.8KW(100A)/33.6KW2(150A)/44.8KW2(200A)) / (MPPT: 22.4KW(50A)/22.4KW*2(100A)
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD
Thermal method		Forced air cooling
Communication(Optional)		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Noise	2000m（More than derating）
	Elevation	≤65dB
	Humidity	0%~95% ,No condensation

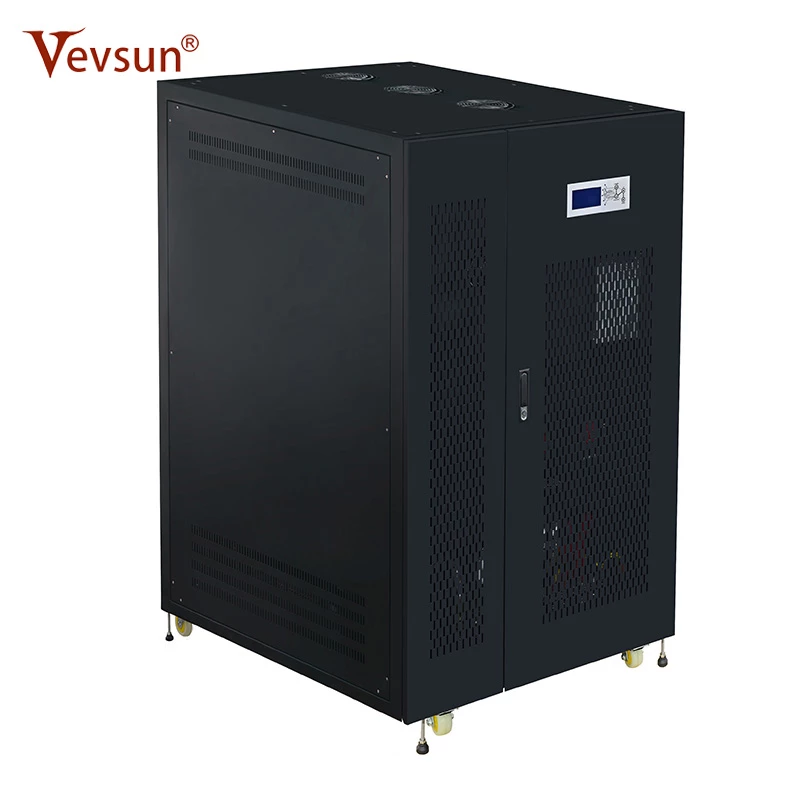

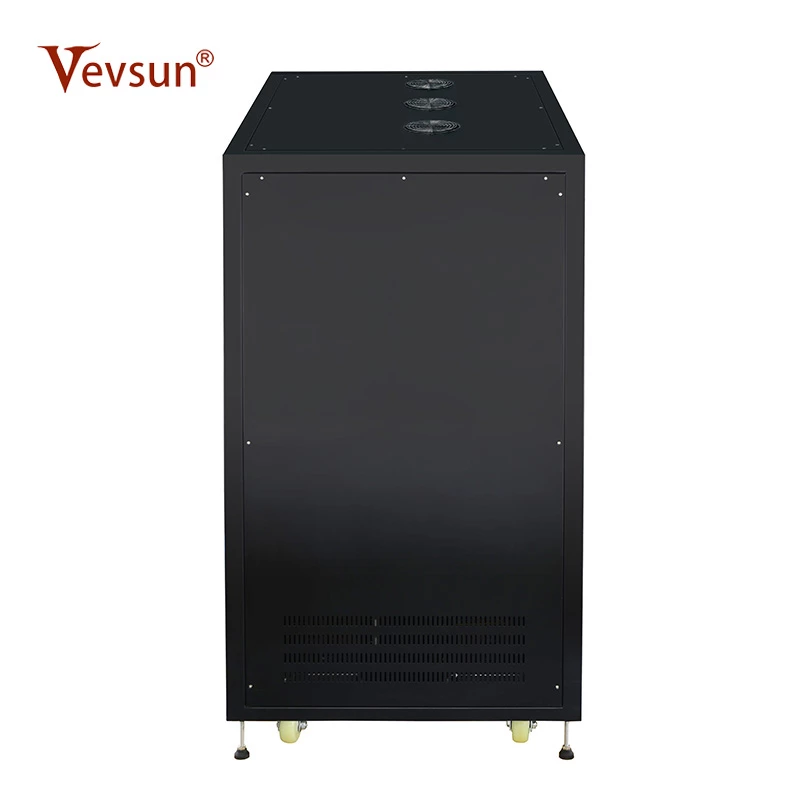

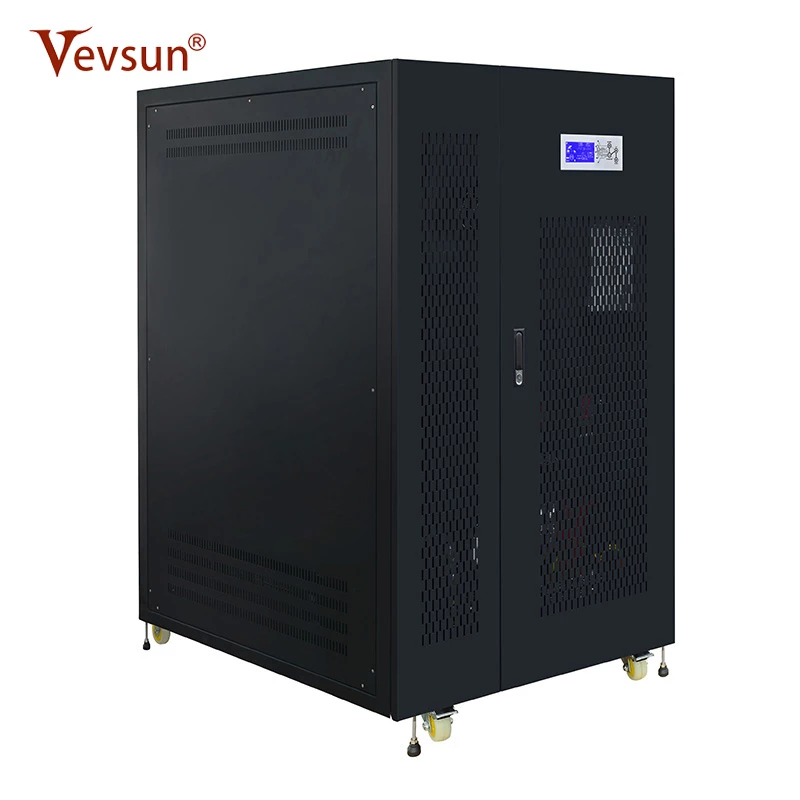

Product Details

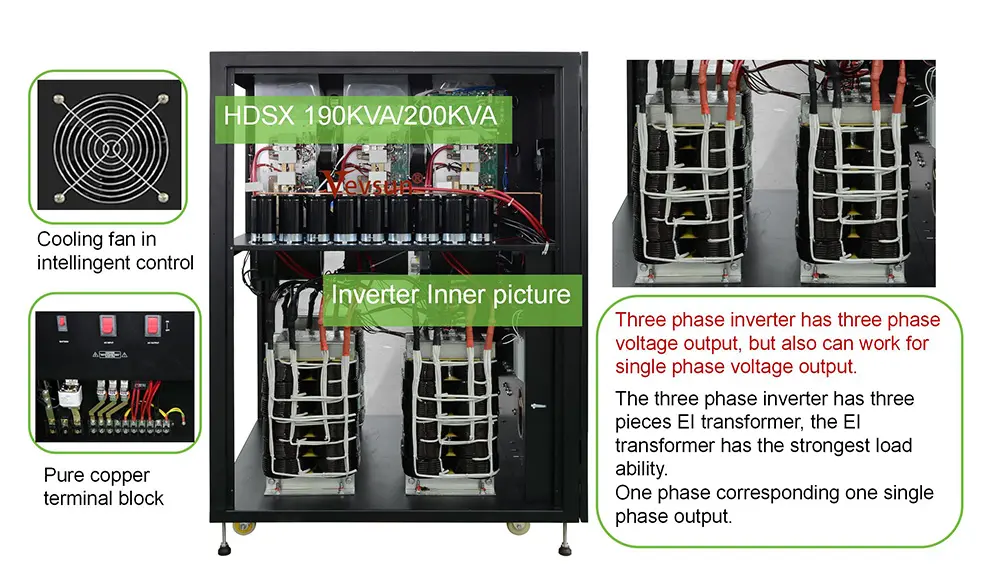

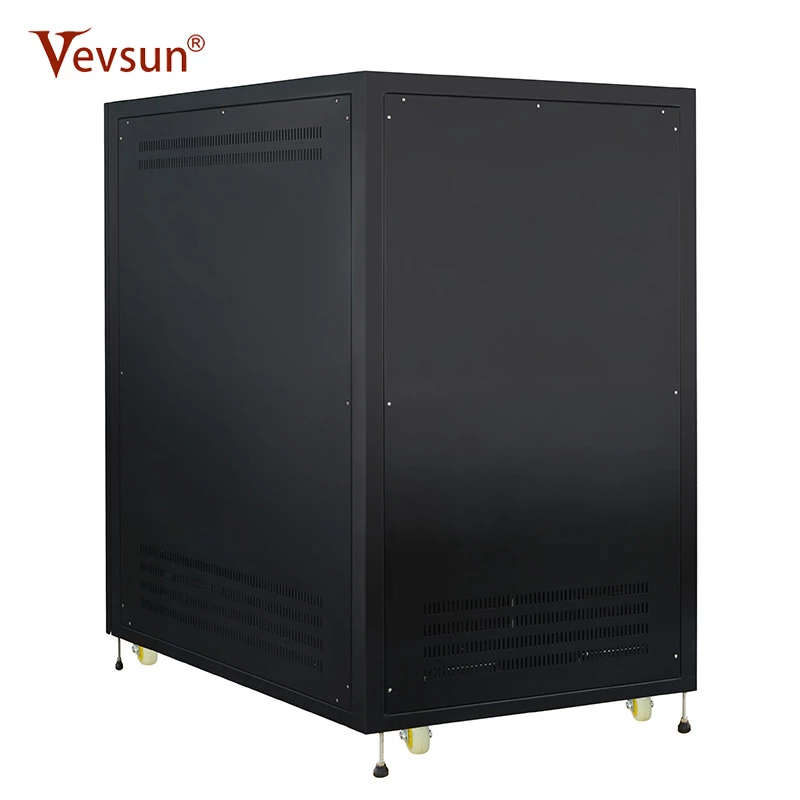

HDSX Three Phase Inverter Charger (190KVA-200KVA)

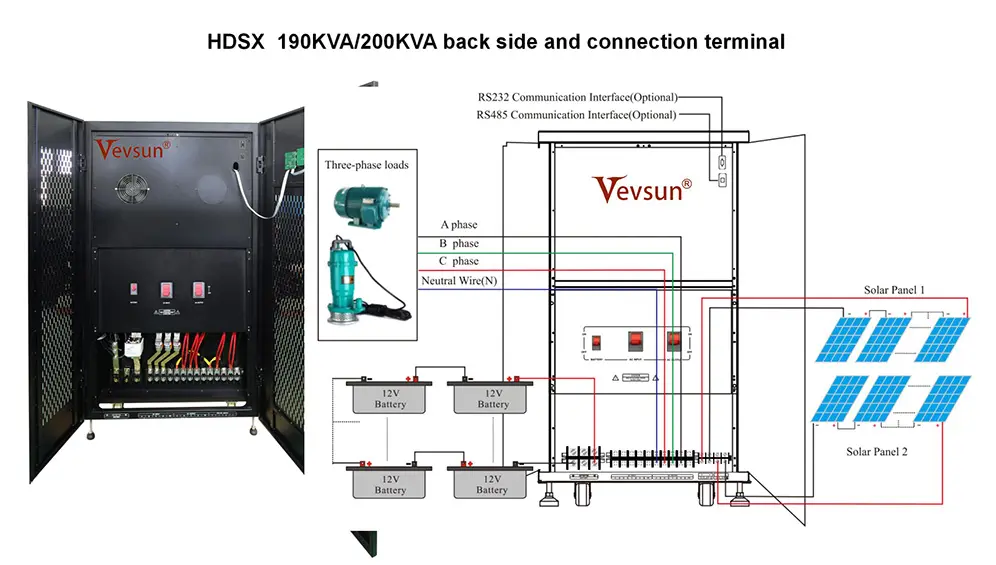

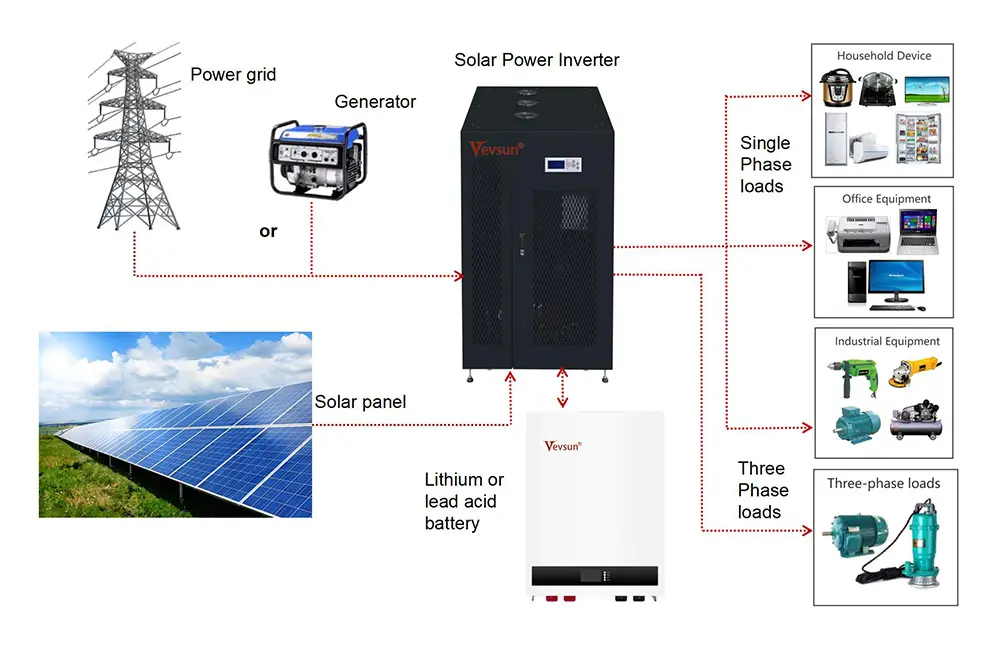

System Diagram

HDSX Three Phase Inverter Charger (190KVA-200KVA)

Application

HDSX Three Phase Inverter Charger (190KVA-200KVA)

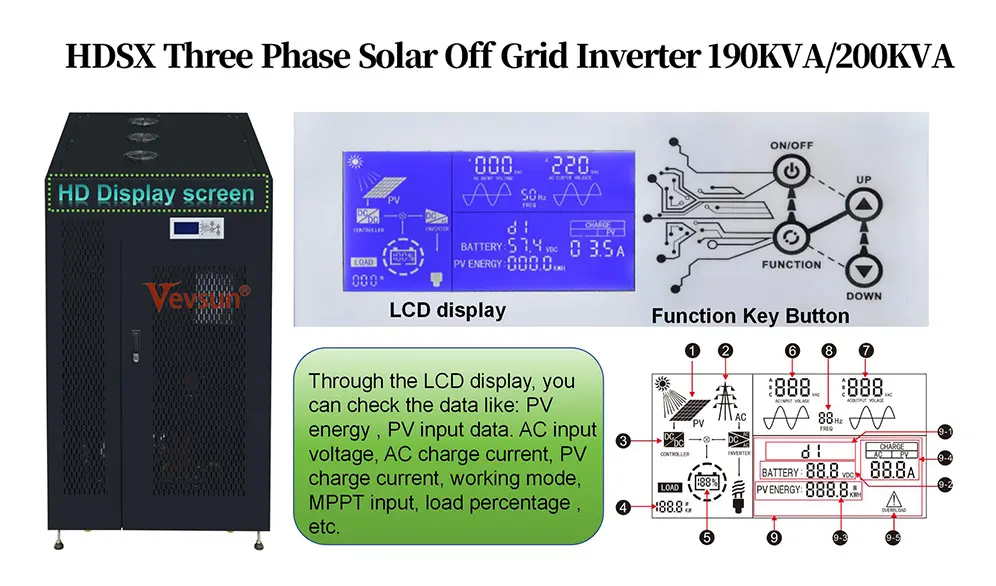

Function and setting of button on board

1. PV: When there’s solar input, sun icon is lighted; when there is no PV input, only the solar panel icon is displayed.
2. AC: When mains voltage is over 100V, the high voltage wire rack icon is lighted. When use mains power, corresponding arrow and AC icon is lighted.
3. CONTROLLER: When there’s solar charging, arrow icon is lighted.
4. LOAD: To show alternately three phase load capacity and percentage. (The phase of the real-time load information is consistent with the phase of the upper left corner display of the AC voltage.)
5. BATTERY: To show balance battery capacity or charging process.
6. AC INPUT VOLTAGE: To show alternately three phases mains input voltage. (The upper left corner alternates with the A / B / C icon, The screen corresponds to the immediate operation status of the A / B / C phase)
7. A C OUTPUT VOLTAGE: To show alternately three phases of output voltage. (The upper left corner alternates with the A / B / C icon, The screen corresponds to the immediate operation status of the A / B / C phase.)
8. FREQ: To show output frequency.
9. Auxiliary information
9-1.a: Display the working mode of the machine in real time, d1( mains priority)/ d2(energy saving mode)/d3(battery priority);
b: When there’s an alarm, show alarm code Axx (The specific content of the code can be found in the following fault code table.);
c: The set battery type U0~U7 is displayed when setting the battery type.(For details, see Chapter 4 Operating Instructions.)
9-2.BATT: To show battery voltage.
9-3.PV POWER: To show PV energy generation. (If there is no built-in PV controller, this item is not displayed.)
9-4.CHARGE AC/PV: To show alternately AC/PV charging current. (If there is no built-in PV controller, only the AC charging current is displayed.)
9-5.OVERLOAD: Overload alarm
