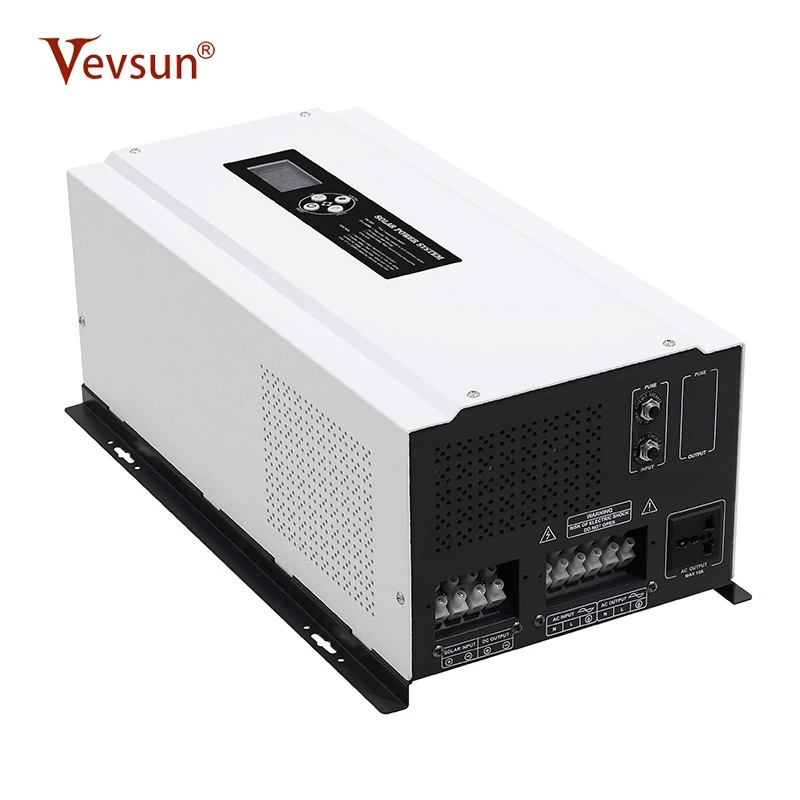

DP Inverter Charger is a powerful and stable power conversion and charging device, which is widely used in off-grid areas, RVs, ships, solar energy systems, and other scenarios, providing users with reliable power supply and battery charging solutions.

Feature

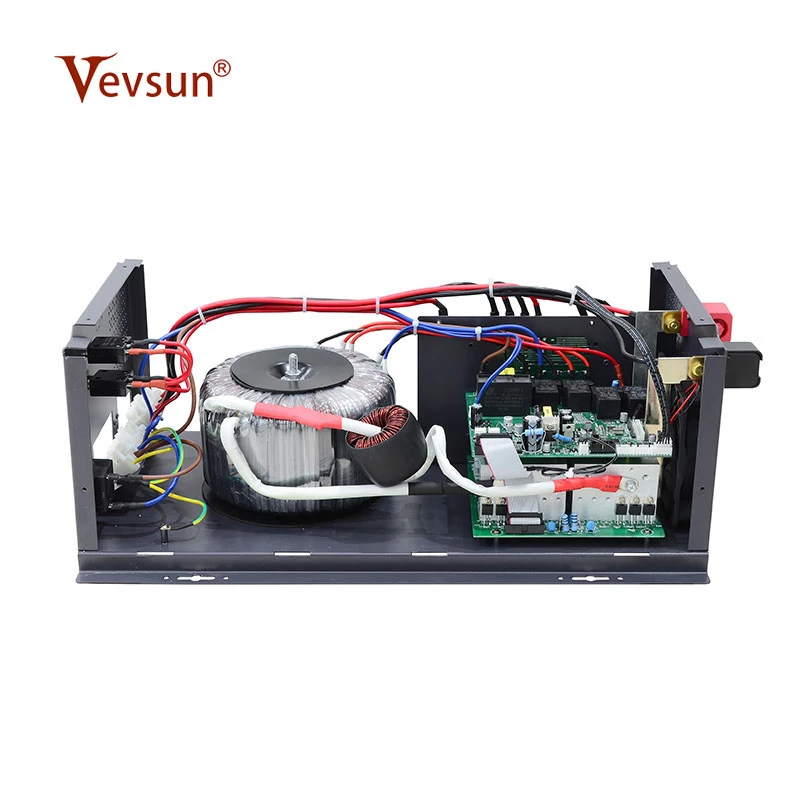

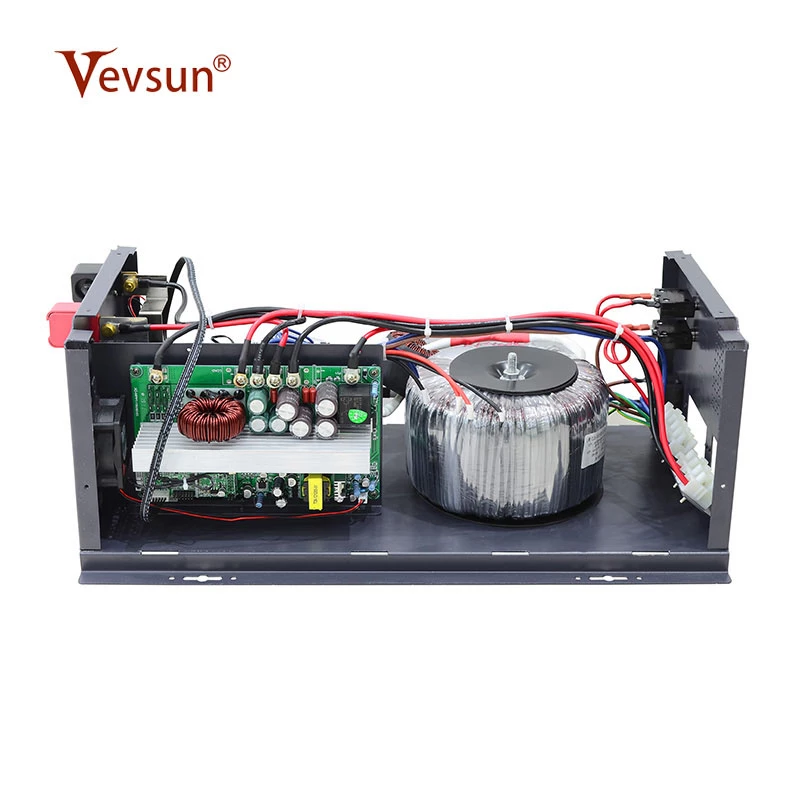

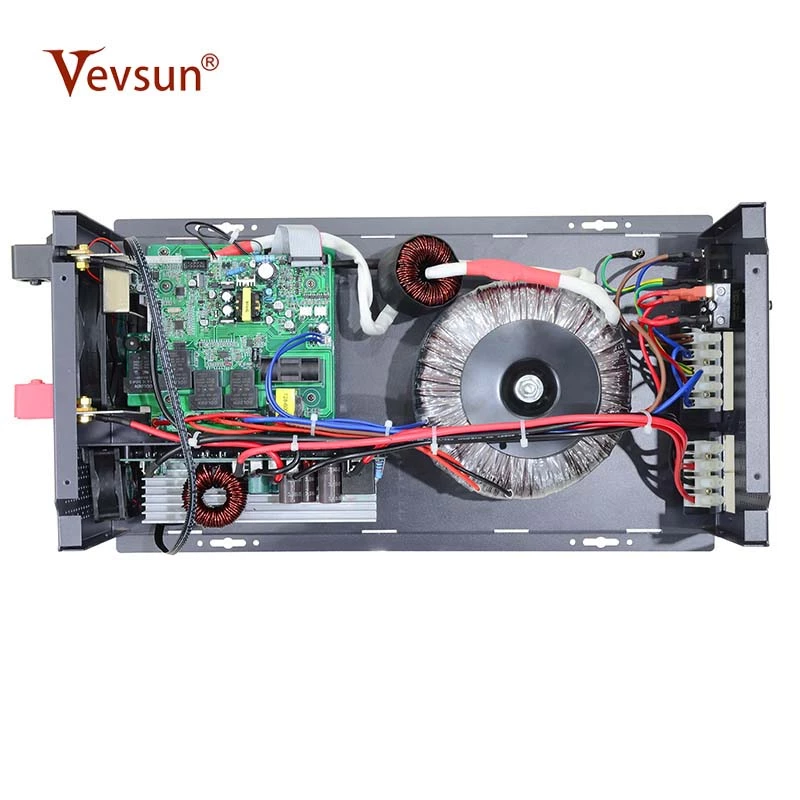

◆ Low frequency toroidal transformer increase efficiency，Pure sine wave output；

◇ Integrated LCD display; One-button start with an external display screen( optional)；

◆ Dedicated DCP chip design; stable and high-speed operation；

◇ LCD display, easy to monitor the operation condition in real time；

◆ AC charge current 0-30A adjustable; battery capacity configuration more flexible；

◇ Three types working modes adjustable:AC first, DC first, energy-saving mode；

◆ AVR output, all-around automatic protection function；

◆ Built-in PWM or MPPT controller optional；

◇ Added fault codes query function,facilitate user to monitor the operation state in real time；

◆ Supports diesel or gasoline generator, adapt any tough electricity situation；

◇ RS485 communication port/APP optional.

Specification

Model: DP/DP-T		10212/24/48	15212/24/48	20212/24/48	30224/48	40224/48	50248	60248	70248
Rated Power		1000W	1500W	2000W	3000W	4000W	5000W	6000W	7000W
Peak Power（20ms)		3000VA	4500VA	6000VA	9000VA	12000VA	15000VA	18000VA	21000VA
Start Motor		1HP	1.5HP	2HP	3HP	3HP	4HP	4HP	5HP
Battery Voltage		12/24/48VDC			24/48VDC	24/48VDC	48VDC
Size(LWHmm)		555297184				615315209

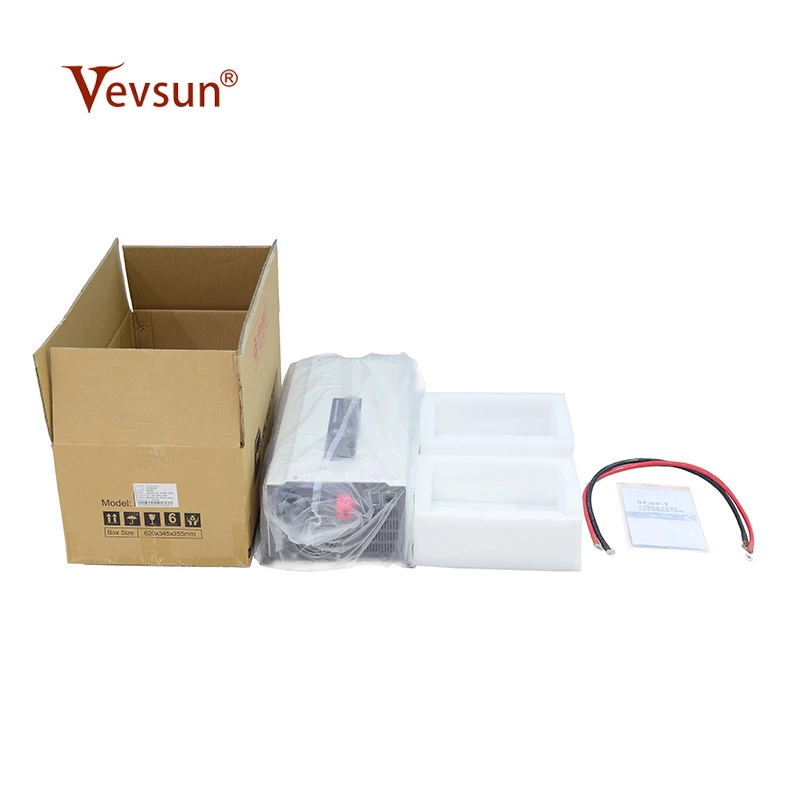

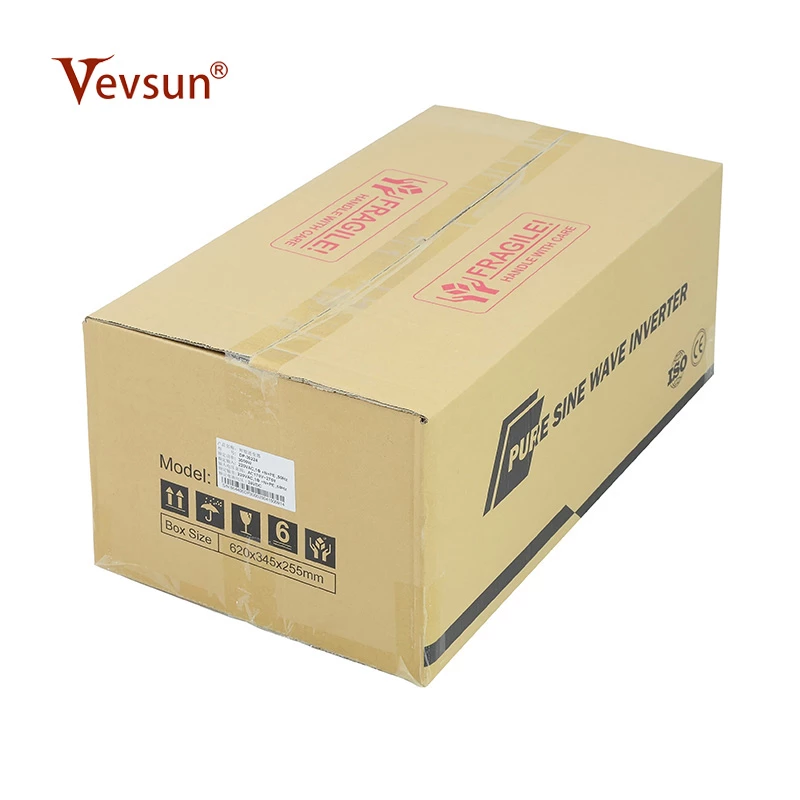

Packing Size(LWHmm)		620345255				680365280
N.W.(kg)		12	13	15.5	18	23	24.5	26	27.5

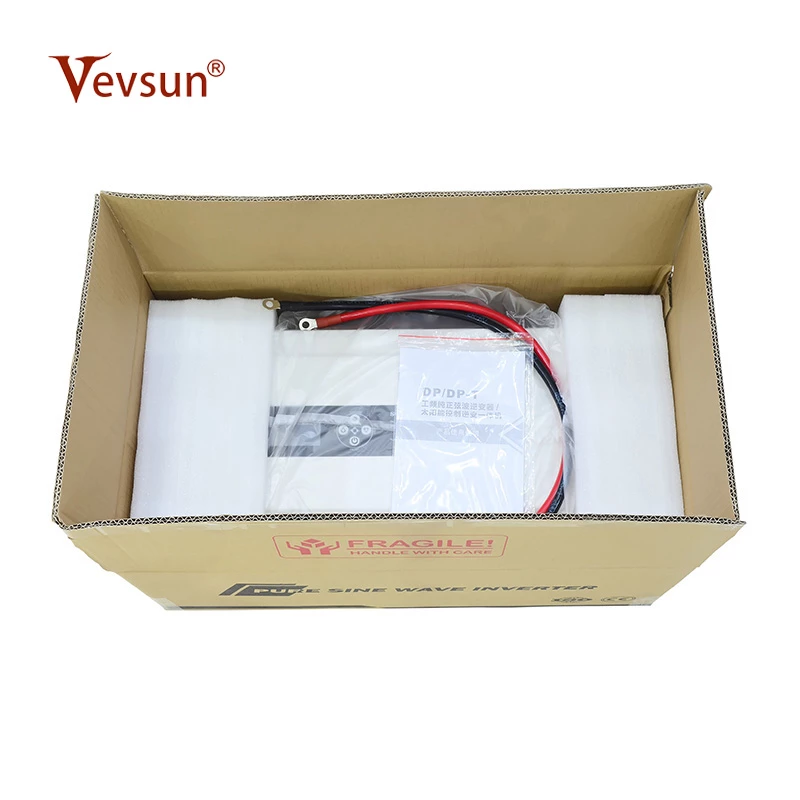

G.W.(kg)（Carton Packing）		14	15	17.5	20	25.5	27	28.5	30
Installation Method		Wall-Mounted
Parameter
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	85VAC~138VAC（110VAC） / 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC）
	AC Input Frequency Range	45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
	Max AC charging current	0~30A(Depending on the model）
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50/60Hz±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
	Output Frequency(AC Mode)	Tracking Automatically
	Output waveform distortion (Battery Mode)	≤3%（Linear load）
	No load loss(Battery Mode)	≤0.8% rated power
	No load loss(AC Mode)	≤2% rated power（ charger does not work in AC mode）
	No load loss(Energy saving Mode)	≤10W
Battery Type	VRLA Battery	Charge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4)
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	Factory default: 11V(12V system; 24V system x2; 48V system x4)
	Battery undervoltage protection	Factory default: 10.5V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage alarm	Factory default: 15V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage protection	Factory default: 17V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage recovery voltage	Factory default: 14.5V(12V system; 24V system x2; 48V system x4)
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	PWM or MPPT
	Charging current	10A~60A（PWM or MPPT）				10A~60A(PWM ) / 10A~100A(MPPT)
	PV Input Voltage Range	PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system) MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system)
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 50V(12V/24V system); 100V(48V system) / MPPT: 150V(12V/24V/48V system)
	PV Array Maximum Power	12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A）; 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A）; 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A）
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD（External LCD Display(Optional)）
Thermal method		Cooling fan in intelligent control
Communication(Optional)		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
