Convenient Solar Generator ESS 5000W Factory

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

ESS Solar Generator 5000W

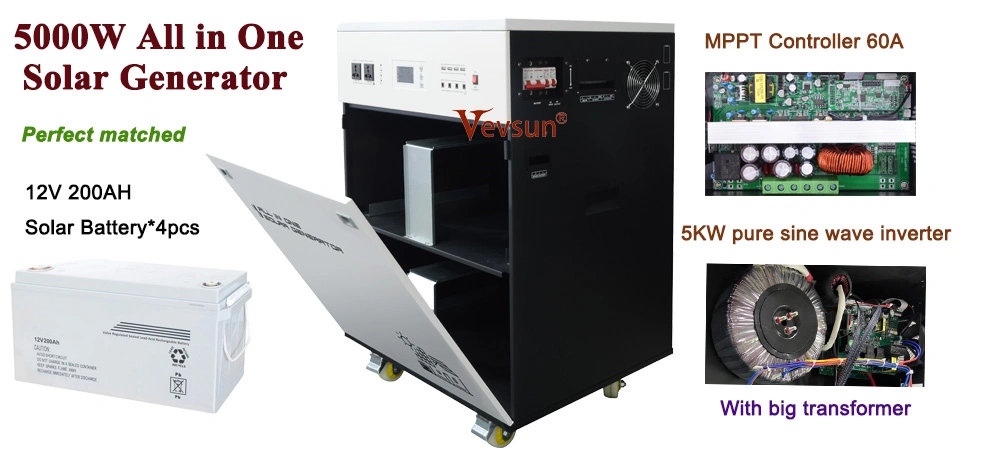

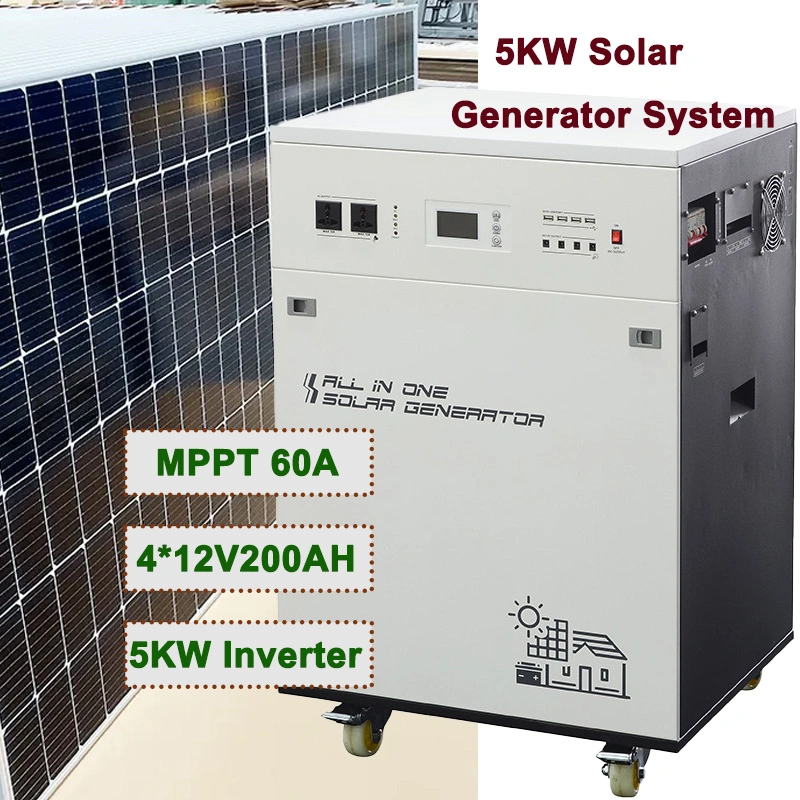

High quality 5KW solar generator system with Multi Busbars Technology high efficiency Mono 550W solar panel, which has strong ability to works in Harsh environment. And the solar generator with toroidal low-loss transformer make it has strong load ability. The system can load AC conditioner, pumps, and other household equipments, etc.

Our Services:

We provide one-to-one system matching services. Our company has a professional team of engineers who can match the corresponding solar energy system according to the customer's household appliances and usage load. Rooftop installation can be configured according to the customer's roof area, material, and type. Accept OEM&ODM service.

Feature

◆ 3 times peak power, excellent loading capability.

◆ Combine inverter/solar controller/battery all in one.

◆ Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.

◆ Working mode AC prior/ECO mode/Solar prior selectable.

◆ AC charging current 0-10A selectable.

◆ LVD/HVD/Charging voltage adjutable, suitable for kinds of battery

◆ Adding fault code to monitor real-time work situations.

◆ Continuous stable pure sine wave output with inbuilt AVR stabilizer.

◆ Digital LCD and LED for visualization of operation status of the equipment.

◆ Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.

Specification

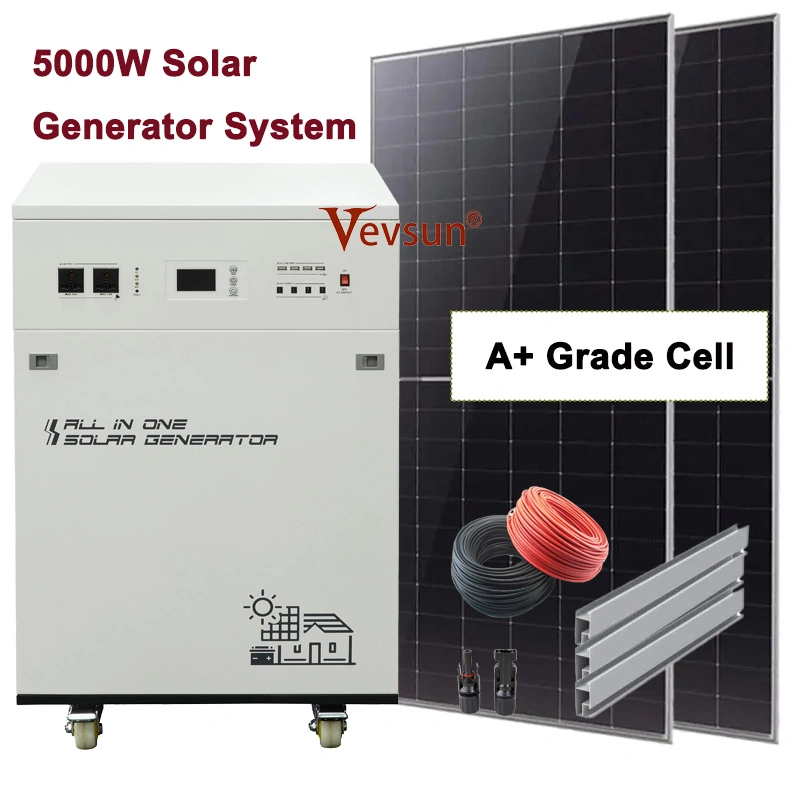

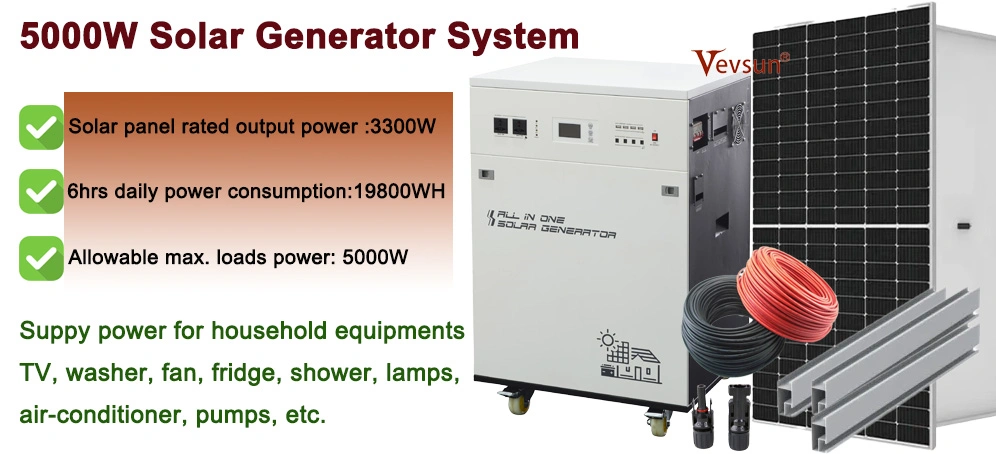

5000W solar generator system matched products
Item No.	Model	Description	Quality
1	Solar panel	Monocrystalline 550W	6pcs
2	Solar generator	All in one generator 5000W (with built in PWM/MPPT controller+ inverter + battery)	1 set
3	Solar mounting bracket	Roof mounting and Ground mounting two installtion(optional)	13sets
4	PV array combiner box	3PV string inputs, 1 output. With PV dedicated high voltage lightning protection device. Waterproof terminals.	1pc
5	PV cable	Single-core 4mm2 solar cable	1 set
6	MC4 Connector	male and female,for 4mm2 cable	3 sets
