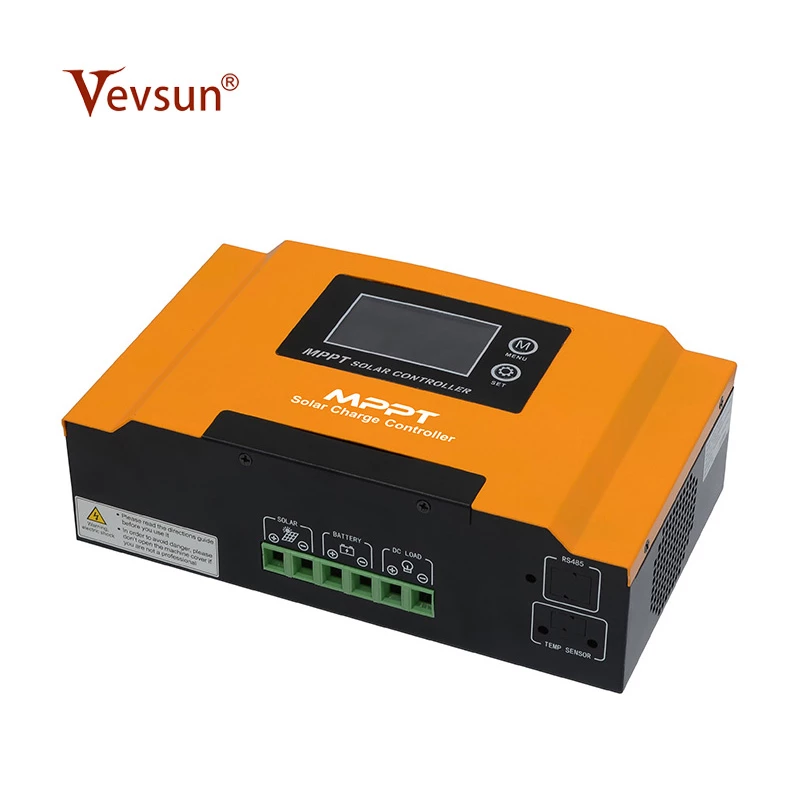

Wonder1-150 MPPT Solar Charge Controller Inverter(10A-100A) Manufacturer

Wonder1-150 MPPT Solar Charge Controller Inverter(10A-100A) Manufacturer

It has a high tracking efficiency of up to 99%, which can increase the power generation efficiency by nearly 20% compared with traditional PWM (pulse width modulation)

Model : Wonder1 150/10, 150/20, 150/30(10/20/30), 150/40, 150/50, 150/60(40/50/60), 150/80, 150/100(80/100)

Rated Current : 10A/20A/30A, 40A/50A/60A, 80A/100A

Battery Voltage : 12V/24V/48V Auto Recognition

Max PV Input Voltage (Voc) (At the lowest ambient temperature) : 150V

MPPT Tracking Voltage Range : 12V system

Recommended Operating Voltage Range : 12V system

Machine Size(L*W*Hmm) : 185*135*65, 240*143*74, 280*180*100

Package Size(L*W*Hmm) : "224*171*94（1pc）, 351*233*196 (4pcs), "281*181*103（1pc）, 371*290*214 (4pcs), 321*224*134（1pc）, 457*330*142 (2pcs)

N.W(kg) : 1.15（1pc）, 1.8（1pc）, 3.7（1pc）

G.W.(kg) : 1.35（1pc）, 2（1pc）, 4.0（1pc）

Whatapp：+8613025672933

Email: wendy@vevsun.com

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

Wonder1-150 MPPT Solar Charge Controller (10A-100A) Supplier

It has a high tracking efficiency of up to 99%, which can increase the power generation efficiency by nearly 20% compared with traditional PWM (pulse width modulation). It can detect the power generation voltage of the solar panel in real time and track the highest voltage and current value, so that the system can charge the battery with the maximum power output and maximize the output power of the photovoltaic panel.

Feature

◆ Advanced MPPT tracking, 99% tracking efficiency. Compared with

PWM, the generating efficiency increase near 20%；

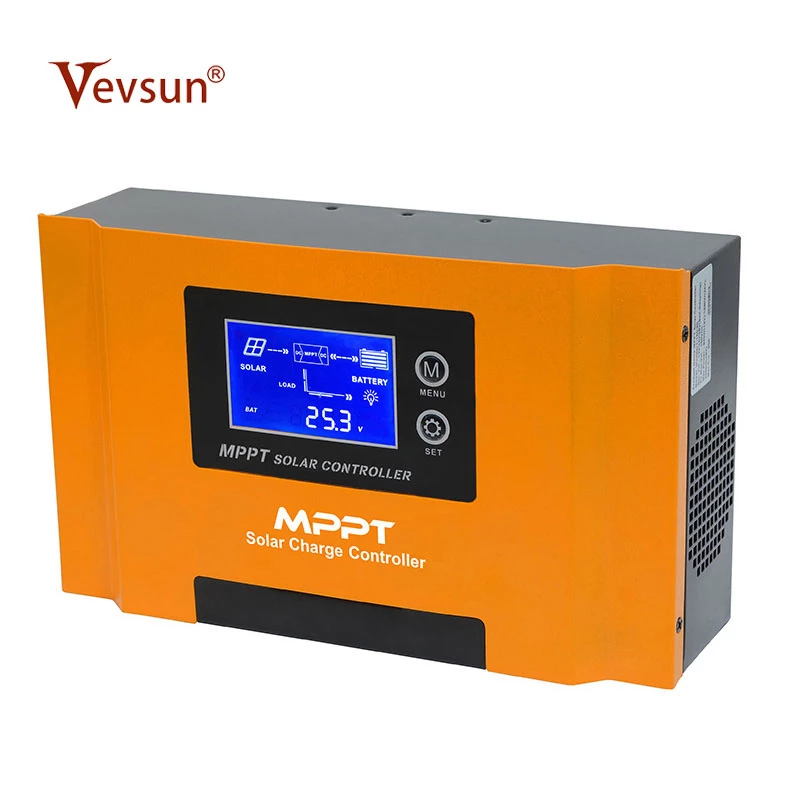

◇ LCD display PV data and chart simulates power generation process；

◆ Multiple working modes to adapt different working occasion；

◇ Wide PV input voltage range, convenient for system configuration；

◆ Intelligent battery management function, extend battery life；

◇ 12V/24V/48V automatic recognition, users are more flexible and convenient to use.

◆ RS485 communication port optional.

Specification

Model: Wonder1	150/10, 150/20, 150/30 (10/20/30)	150/40， 150/50, 150/60 (40/50/60)	150/80， 150/100 (80/100)
Rated Current	10A/20A/30A	40A/50A/60A	80A/100A
Rated System Voltage	12V/24V/48V Auto Recognition
Max PV Input Voltage(Voc) (At the lowest ambient temperature)	150V
MPPT Tracking Voltage Range	12V system：15V-120V；24V system：30V-120V；48V system：60V-120V
Recommended operating voltage range	12V system：15V-20V；24V system：30V-40V；48V system：60V-80V
PV array Max power	12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A); 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
Battery Type	Lead acid battery(Battery type base on user charge specification)
Floating Voltage	13.8V/Single battery
Charge Voltage	14.2V/Single battery
Charging Protection Voltage	15V/Single battery
Promote recovery voltage	13.8V/Single battery
Recovery voltage after low voltage disconnect	12.5V/Single battery
Discharge Limited voltage	10.5V/Single battery
Temperature Compensation Coefficient	-3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode	MPPT maximum power point tracking
Charging Method	Three stages: constant current(MPPT); constant voltage; floating charge
Protection	Over-voltage/under-voltage/over-temperature/PV anti-reverse protection
Conversion Efficiency	>98%
MPPT Tracking Efficiency	>99%
Machine Size(LWHmm)	18513565	24014374	280180100
Package Size(LWHmm)	22417194（1pc） 351233196 (4pcs)	281181103（1pc） 371290214 (4pcs)	321224134（1pc） 457330142 (2pcs)
N.W(kg)	1.15（1pc）	1.8（1pc）	3.7（1pc）
G.W.(kg)	1.35（1pc）	2（1pc）	4.0（1pc）
System Parameters
Display	LCD
Thermal Method	Cooling fan in intelligent control
Type Of Mechanical Protection	IP20
Operating Temperature	-15℃~+50℃
Storage Temperature	-20℃~+60℃
Elevation	5000m(Dreating above 2000m)
Humidity	5%~95%(No condensation)
Communication	RS485/APP（WIFI monitoring or GPRS monitoring）
Note: All specifications are subject to change without prior notice
