Custom 12V200ah Lead Acid Battery Supplier

Vevsun Energy, located in Foshan, China, is a high-tech leader in green power solutions, specializing in solar and wind energy for over a decade. With a dedicated R&D team, advanced equipment, and automated production lines, we deliver high-quality OEM and ODM customization services globally.

General Series Battery

General Series batteries are designed with AGM (Absorbent Glass Mat) technology, High-performance plates, and electrolyte to give extra power output for common power backup systems.

General Series Batteries are the general purpose batteries with 12 years of floating design life at 25℃, meet with IEC, BS, JIS, and Eurobat standards, UL(MH62092), and CE approved.

Feature

1. Fully sealed: with cover and pole double seal design to block leakage of electrolysis, the safe valve will also prevent outside oxygen and dust from entering the battery.

2. Free maintenance: with the performance of water reproduction and high sealed reaction efficiency, there is no need for any compensation for water during use.

3. Safety: without acid leaking, a reliable gas pressure venting system equipped with an anti-explosion device makes the battery safer during use.

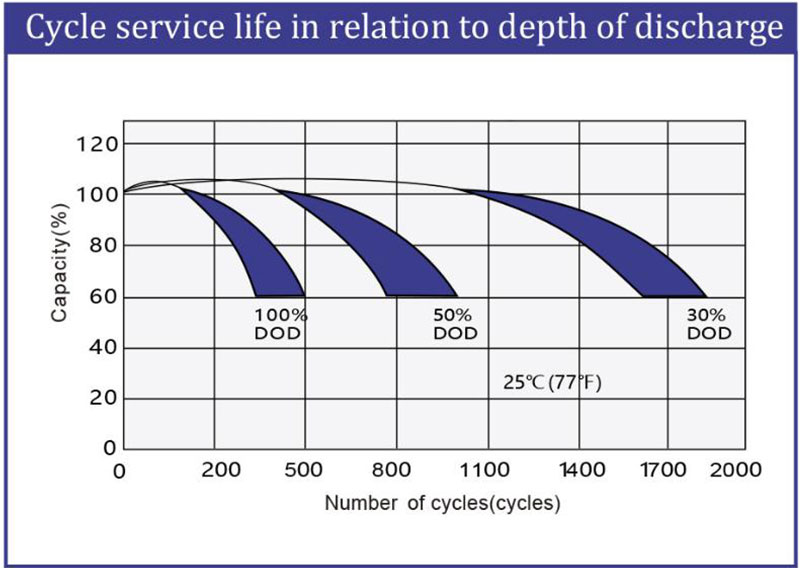

4. Long cycle life: anti-erosion Pb-Ca multi-alloy, ABS plastic material, and high sealed reaction efficiency assure the battery service life.

5 .Temperature adaptability: the battery can be used safely during -25 ℃~50 ℃

Specification

Battery Model	Nominal Voltage		12V
	Rated capacity (10Hour rate)		200Ah
	Cells Per battery		XD200-12

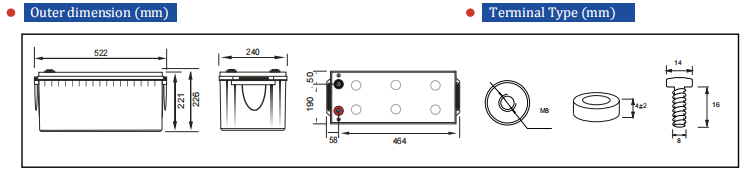

Dimension	Length	Width	Height	Total Height
	522mm (20.55 inches)	240mm (9.44 inches)	221mm (8.70 inches)	226mm (8.89 inches)
Approx Weight	55.4kg(122.14lbs)±3%
Capacity @25℃ (77°F)	20 hour rate(10.5V) 208.4Ah	10 hour rate(10.8V)	5 hour rate(10.5V)	1 hour rate(9.6V) 110.0Ah
		200Ah	177.97Ah
Max.discharge current	2400A(5 Sec.)
	Full charged at 25℃(77F):Approx 2.02mΩ

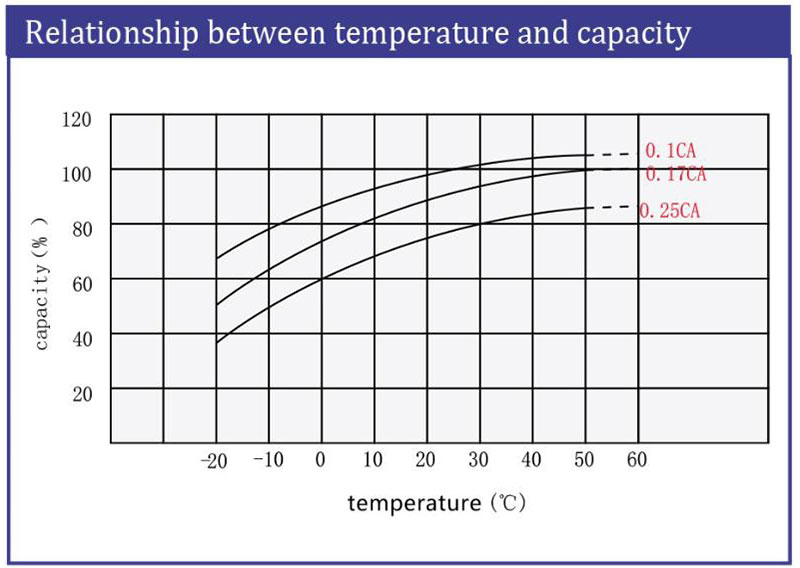

Capacity affected by Temp. (20 HR)	40℃(104F) 102%	25℃(77°F) 100%	0℃(32F) 85%	15℃(5°F) 65%
Self Discharge @25℃(77F)	After 3 months storage 98%		After 6 months storage 94%	After 12 months storage 74%

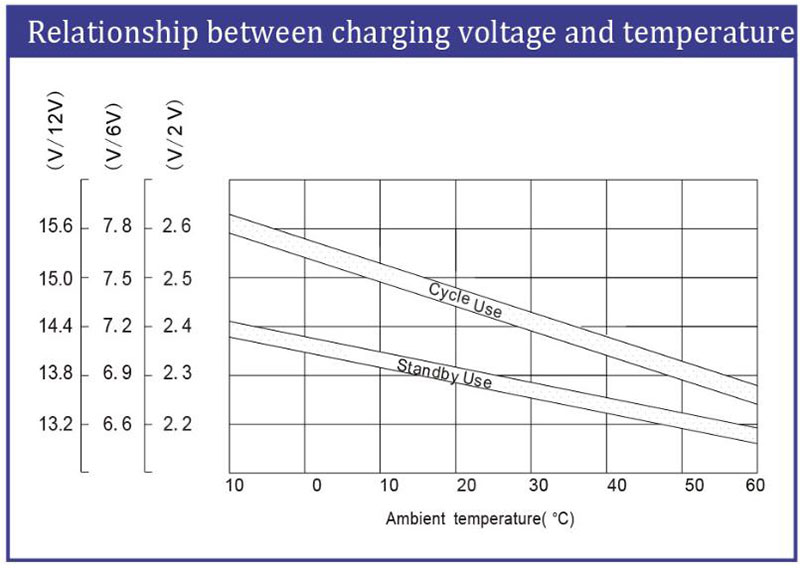

Charge method @25℃(77F)	Cycle Use		Float Use
	14.40-15.00V (Initial charging current less than60A)		13.50-13.80V

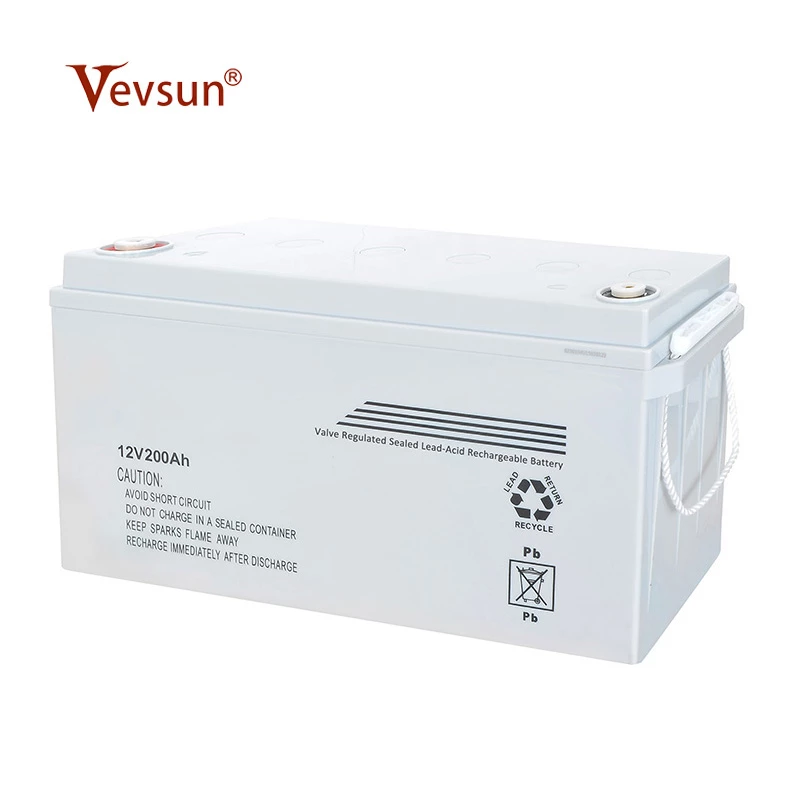

12V200ah Lead Acid Battery

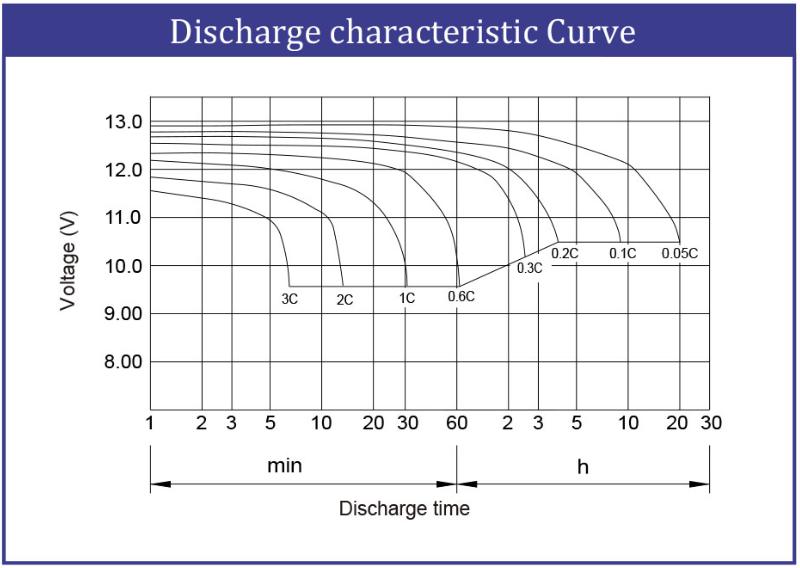

Constant Current(Amp)and Constant Power(Watt)Discharge Table at 25℃(77F)
F.V\TIME		15MIN	30MIN	60MIN	90MIN	2 HR	3HR	5HR	8HR	10HR	20HR
1.60V/cell	A	341.000	200.000	110.000	80.507	74.035	52.738	35.991	25.484	20.753	11.451
1.60V/cell	W	658.130	398.400	219.450	160.749	148.132	105.519	72.011	50.989	41.523	22.911
1.67V/cell	A	323.286	195.726	109.203	79.710	73.667	52.461	35.792	25.269	20.430	10.878
1.67V/cell	W	624.429	390.083	217.874	159.197	147.518	105.155	71.744	50.664	40.962	21.810
1.70V/cell	A	315.314	194.017	108.406	79.630	73.482	52.328	35.783	25.016	20.172	10.588
1.70V/cell	W	609.503	386.688	216.546	159.102	147.210	104.918	71.746	50.182	40.466	21.240
1.75V/cell	A	302.029	190.598	106.812	78.594	73.021	52.000	35.594	24.946	20.090	10.420
1.75V/cell	W	584.425	380.151	213.889	157.188	146.262	104.312	71.402	50.080	40.150	20.918
1.80V/cell	A	289.629	186.325	106.014	78.036	72.560	51.723	35.495	24.731	20.000	10.076
1.80V/cell	W	561.300	371.795	212.560	156.463	145.366	103.809	71.238	49.685	39.532	20.244
