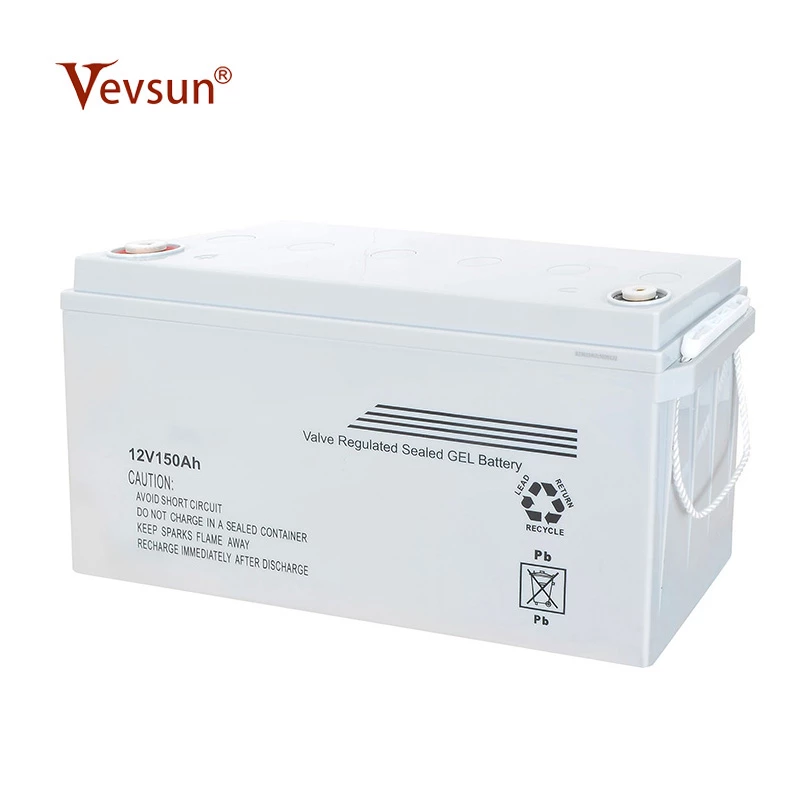

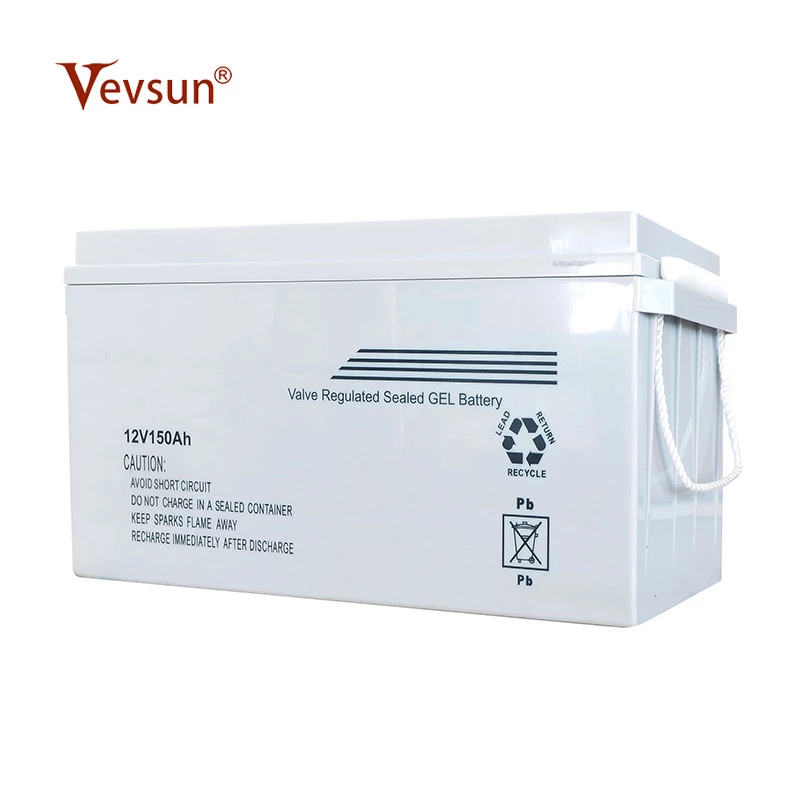

General Series Battery
General Series batteries are designed with AGM (Absorbent Glass Mat) technology, High-performance plates, and electrolyte to give extra power output for common power backup systems.
General Series Batteries are the general purpose batteries with 12 years of floating design life at 25℃, meet with IEC, BS, JIS, and Eurobat standards, UL(MH62092), and CE approved.
Feature
1. Fully sealed: with cover and pole double seal design to block leakage of electrolysis, the safe valve will also prevent outside oxygen and dust from entering the battery.
2. Free maintenance: with the performance of water reproduction and high sealed reaction efficiency, there is no need for any compensation for water during use.
3. Safety: without acid leaking, a reliable gas pressure venting system equipped with an anti-explosion device makes the battery safer during use.
4. Long cycle life: anti-erosion Pb-Ca multi-alloy, ABS plastic material, and high sealed reaction efficiency assure the battery service life.
5 .Temperature adaptability: the battery can be used safely during -25 ℃~50 ℃
Specification
| Battery Model |
Nominal Voltage
Rated capacity (10Hour rate)
Cells Per battery |
12V |
| 150Ah |
| XD150-12 |

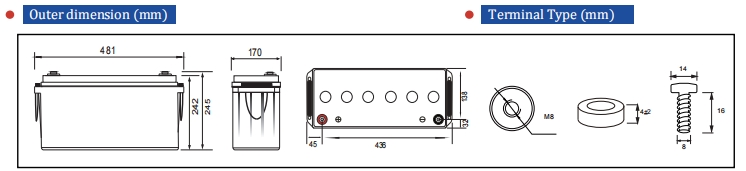

| Dimension |
Length
418mm (18.94 inches) |
Width
170mm (6.69 inches) |
Height |
Total Height |
| 242mm (9.52 inches) |
245mm (9.65 inches) |
| Approx Weight |
40.6kg(89.51lbs)±3% |
Capacity @25℃
(77°F) |
20 hour rate(10.5V) |
10 hour rate(10.8V) |
5 hour rate(10.5V) |
1 hour rate(9.6V) |
| 159Ah |
150Ah |
131Ah |
97.4Ah |
| Max.discharge current |
1800A(5 Sec.) |
| |
Full charged at 25℃(77F):Approx 2.87mΩ |
Capacity affected
by Temp. (20 HR) |
40℃(104°F)
102% |
25℃(77°F)
100% |
0℃(32°F)
85% |
-15℃(5°F)
65% |
Self Discharge
@25℃(77F) |
After 3 months storage
98% |
After 6 months storage
94% |
After 12 months storage
74% |
Charge method
@25℃(77F) |
Cycle Use
14.40-15.00V (Initial charging current less than45A) |
Float Use |
| 13.50-13.80V |
| Constant Current(Amp)and Constant Power(Watt)Discharge Table at 25℃(77F) |
| F.V\TIME |
15MIN |
30MIN |
60MIN |
90MIN |
2 HR |
3HR |
5HR |
8HR |
10HR |
20HR |
| 1.60V/cell |
A |
341.000 |
200.000 |
110.000 |
80.507 |
74.035 |
52.738 |
35.991 |
25.484 |
20.753 |
11.451 |
| W |
658.130 |
398.400 |
219.450 |
160.749 |
148.132 |
105.519 |
72.011 |
50.989 |
41.523 |
22.911 |
| 1.67V/cell |
A |
323.286 |
195.726 |
109.203 |
79.710 |
73.667 |
52.461 |
35.792 |
25.269 |
20.430 |
10.878 |
| W |
624.429 |
390.083 |
217.874 |
159.197 |
147.518 |
105.155 |
71.744 |
50.664 |
40.962 |
21.810 |
| 1.70V/cell |
A |
315.314 |
194.017 |
108.406 |
79.630 |
73.482 |
52.328 |
35.783 |
25.016 |
20.172 |
10.588 |
| W |
609.503 |
386.688 |
216.546 |
159.102 |
147.210 |
104.918 |
71.746 |
50.182 |
40.466 |
21.240 |
| 1.75V/cell |
A |
302.029 |
190.598 |
106.812 |
78.594 |
73.021 |
52.000 |
35.594 |
24.946 |
20.090 |
10.420 |
| W |
584.425 |
380.151 |
213.889 |
157.188 |
146.262 |
104.312 |
71.402 |
50.080 |
40.150 |
20.918 |
| 1.80V/cell |
A |
289.629 |
186.325 |
106.014 |
78.036 |
72.560 |
51.723 |
35.495 |
24.731 |
20.000 |
10.076 |
| W |
561.300 |
371.795 |
212.560 |
156.463 |
145.366 |
103.809 |
71.238 |
49.685 |
39.532 |
20.244 |
